REAR AXLE SHAFT & HUB

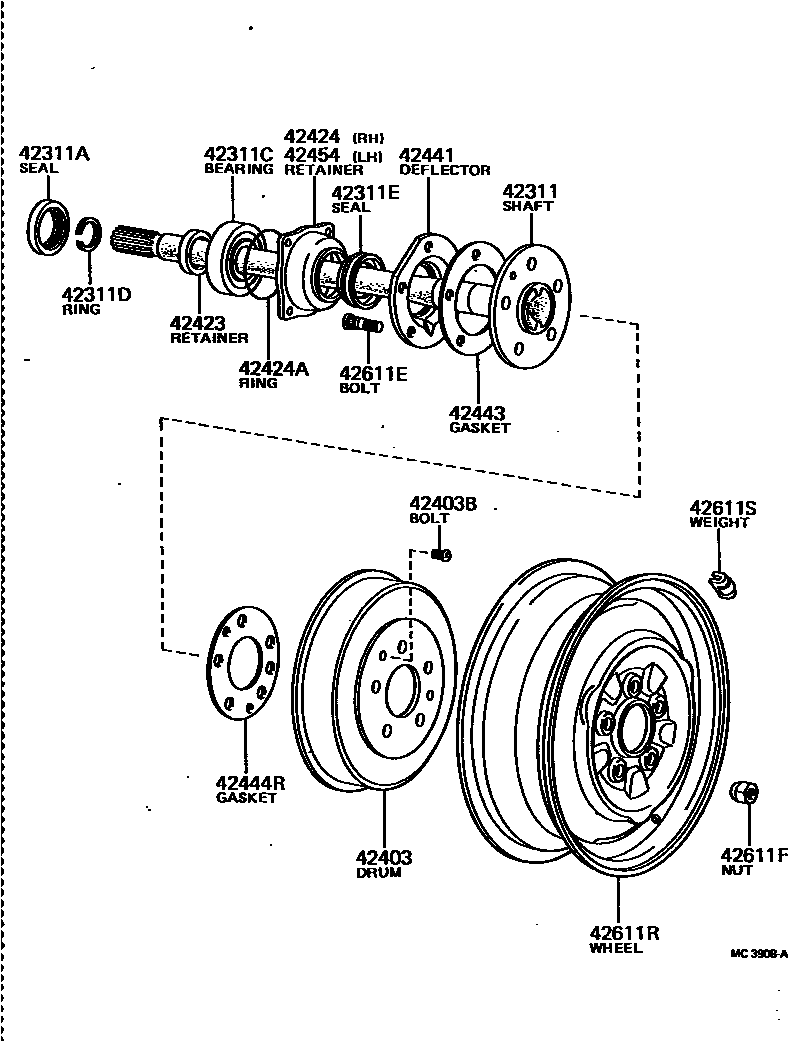

Parts diagram

42311SHAFT, REAR AXLE

main42311-35040×2i197205-197807

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-50039×2i197205-197807

42311CBEARING(FOR REAR AXLE SHAFT)

main97144-06308×2i197205-197807

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-36045×2i197205-197807

42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)

main90313-48005×2i197205-197807

42403DRUM SUB-ASSY, REAR BRAKE

main42431-35030×2i197205-197807

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035×2i197205-197807

42423RETAINER, REAR AXLE BEARING, INNER

main42423-20010×2i197205-197807

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42421-35020i197205-197807

42424ARING, O (FOR BEARING RETAINER SET)

main90301-88077×2i197205-197807

42441DEFLECTOR, BRAKE DRUM OIL

main42441-26010×2i197205-197807

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-30010×2i197205-197807

42444RGASKET, BRAKE DRUM (FOR REAR AXLE)

main42444-35020×2i197205-197807

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42421-35020i197205-197807

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02017×10i197205-197703

main90942-02037×10i197703-197807

42611FNUT, HUB (FOR REAR AXLE)

main90942-01007×10i197205-197807

main90942-01021×10i197710-197807

CAP NUT

42611RWHEEL, DISC(FOR REAR)

main42601-26110×2i197706-197807

5.5J-14

main42601-35080×2i197801-197807

4,5J-14 THAILAND SPEC

main42601-35081×2i197708-197807

4.5J-14

main42601-35121×2i197710-197807

5J-14

42611SWEIGHT, BALANCE(FOR REAR DISC WHEEL)

main90942-03010i197205-197506

40G.

main90942-03011i197205-197506

60G.

main90942-03012i197205-197506

80G.

main90942-03017i197205-197807

20G.

main90942-03020i197710-197807

30G.

main90942-03022i197506-197807

40G.

main90942-03025i197710-197807

50G.

main90942-03027i197506-197807

60G.

main90942-03029i197710-197807

70G.

main90942-03031i197506-197807

80G.

main90942-03041i197710-197807

10G.

18 parts on this diagram · 1 diagram in section
