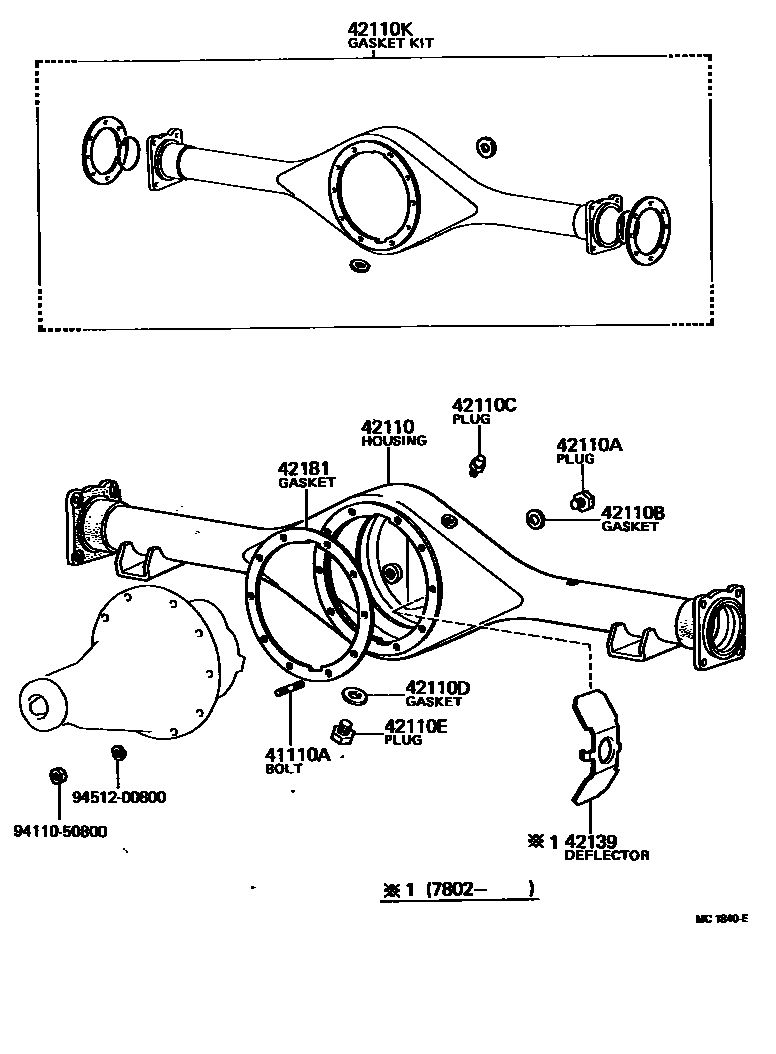

REAR AXLE HOUSING & DIFFERENTIAL
41110CARRIER ASSY, DIFFERENTIAL, REAR
R=39:8=4.875
R=39:8=4.875
R=35:8=4.375
R=35:8=4.375
41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
L=34,S=14,L=34,S=14&14
S=14 & 14,L=42,L=42,S=14&14
42110HOUSING ASSY, REAR AXLE
W/L.S.P.V.
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42110KGASKET KIT, DIFFERENTIAL CARRIER
42139DEFLECTOR, REAR AXLE HOUSING OIL
42181GASKET, REAR DIFFERENTIAL CARRIER
9411050800
main94110-50800
9451200800
main94512-00800
13 parts on this diagram · 2 diagrams in section
