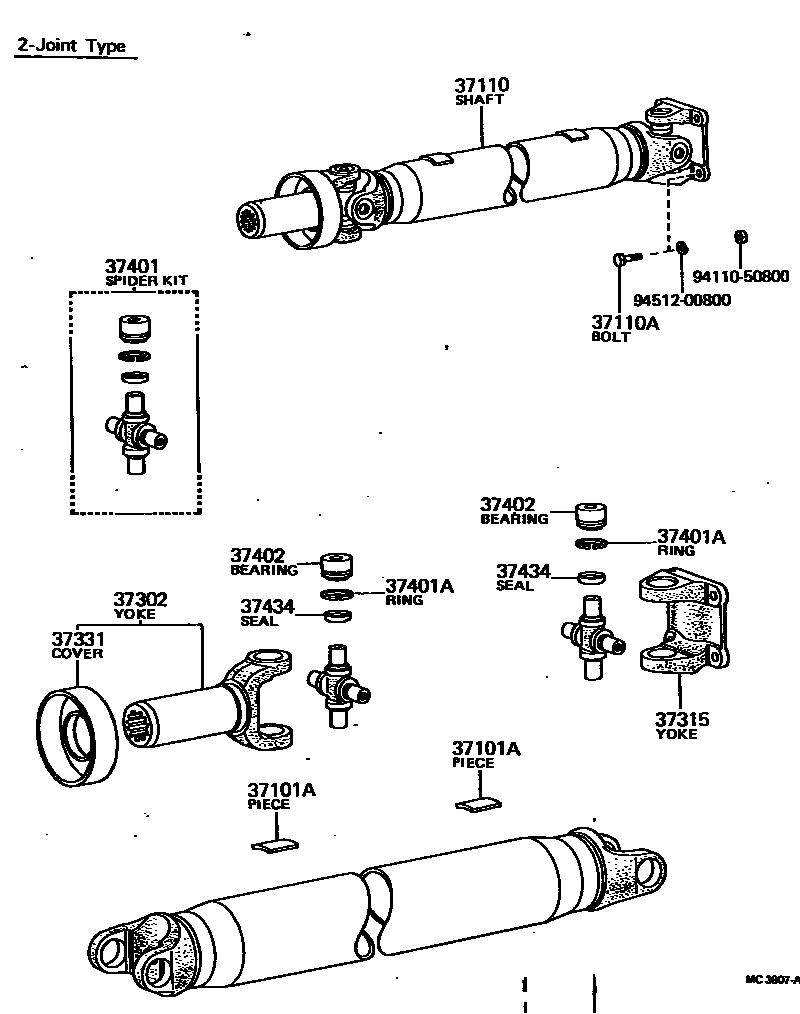

PROPELLER SHAFT & UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
8G,T=1.2,10G.SPOT
20G,T=1.2,20G.SPOT
30G,T=1.2,30G.SPOT
10G.PROJECTION
20G.PROJECTION
30G.PROJECTION
5G,5G.PROJECTION
5G.SPOT
15G.SPOT
25G.SPOT
10G,L=20.7,10G.PROJECTION
20G,L=41.4,20G.PROJECTION
30G,L=62.2,30G.PROJECTION
2G,T=2.0,2G.PROJECTION
4G,T=2.0,4G.PROJECTION
6G,L=12.4,6G.PROJECTION
8G,L=16.6,8G.PROJECTION
12G,L=24.9,12G.PROJECTION
14G,L=29.0,14G.PROJECTION
16G,L=33.2,16G.PROJECTION
18G,L=37.3,18G.PROJECTION
22G,L=45.6,22G.PROJECTION
24G,L=49.7,24G.PROJECTION
26G,L=53.9,26G.PROJECTION
28G,L=58.1,28G.PROJECTION
37110SHAFT ASSY, PROPELLER
L=1563,OD=75
L=1563,OD=75
L=983,OD=65
L=983,OD=65
37110ABOLT (FOR PROPELLER SHAFT)
*8-1.25PX25-12
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37315YOKE, UNIVERSAL JOINT FLANGE
37401SPIDER KIT, UNIVERSAL JOINT
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=1.175-1.225
T=1.225-1.275
T=1.275-1.325
T=1.325-1.375
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37434SEAL, UNIVERSAL JOINT SPIDER BEARING
9411050800
main94110-50800
9451200800
main94512-00800
12 parts on this diagram · 3 diagrams in section
