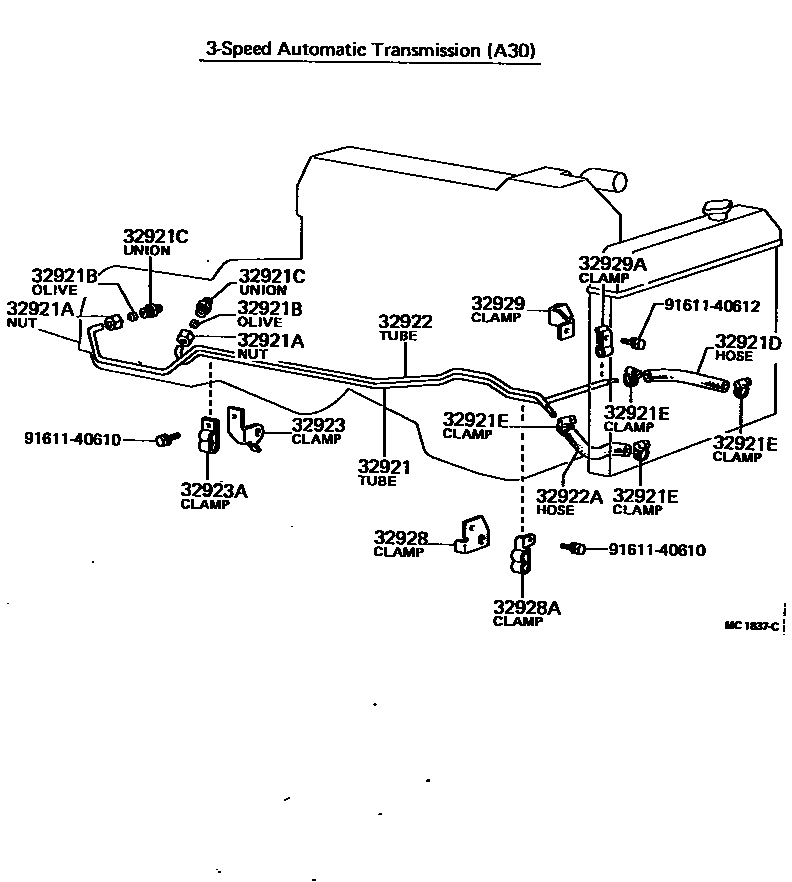

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-22031iRN22..ATM197708-197807

main32921-35010iRN22..ATM197404-197708

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041×2iRN22..ATM197404-197807

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400×2iRN22..ATM197404-197807

32921CUNION(FOR OIL COOLER TUBE)

main90404-13105×2iRN22..ATM197404-197708

main90404-13265iRN22..ATM197708-197807

FOR INLET

main90407-13060iRN22..ATM197708-197807

FOR OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-14259iRN22..ATM197708-197807

main90445-14407iRN22..ATM197404-197408

L=180

main90445-14526iRN22..ATM197408-197708

L=210

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-01075×4iRN22..ATM197404-197408

main90460-14085×4iRN22..ATM197408-197807

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20060iRN22..ATM197708-197807

main32922-35010iRN22..ATM197404-197708

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-14259iRN22..ATM197708-197807

main90445-14407iRN22..ATM197404-197408

L=180

main90445-14526iRN22..ATM197408-197708

L=210

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20022iRN22..ATM197410-197807

main32923-20030iRN22..ATM197404-197410

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90461-08070iRN22..ATM197409-197807

main90461-08076iRN22..ATM197404-197409

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-20031iRN22..ATM197404-197408

main32928-20050iRN22..ATM197408-197807

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-08049iRN22..ATM197408-197807

main90461-08076iRN22..ATM197404-197408

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-20030iRN22..ATM197404-197807

32929ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-06033iRN22..ATM197708-197807

main90461-12120iRN22..ATM197404-197708

9161140610

main91611-40610

9161140612

main91611-40612

16 parts on this diagram · 2 diagrams in section
