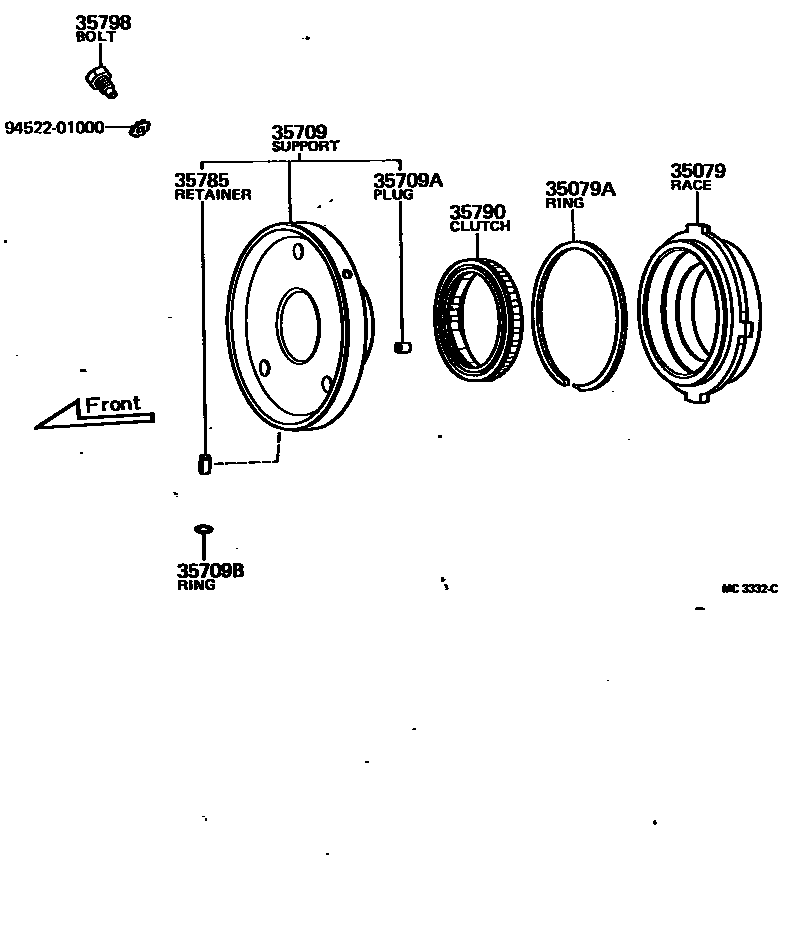

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1 0002 1

35079RACE SUB-ASSY, 1 WAY CLUTCH, OUTER

main35079-40010iRN22..ATM197404-197708

35079ARING, HOLE SNAP(FOR CLUTCH RACE SET)

main90521-99099iRN22..ATM197404-197708

35709SUPPORT SUB-ASSY, CENTER

main35709-22030iRN22..ATM197708-197807

main35709-30010iRN22..ATM197404-197708

35709APLUG, STRAIGHT (FOR CENTER SUPPORT)

main90334-05001iRN22..ATM197404-197708

35709BRING, O (FOR CENTER SUPPORT)

main90301-04110iRN22..ATM197404-197708

35785RETAINER, CENTER SUPPORT RING

main35785-30010iRN22..ATM197404-197708

35790CLUTCH ASSY, 1 WAY

main35790-30010iRN22..ATM197404-197708

main35791-22020iRN22..ATM197708-197807

35798BOLT, CENTER SUPPORT, NO.1

main35798-30010×2iRN22..ATM197404-197708

9452201000

main94522-01000

9 parts on this diagram · 2 diagrams in section
