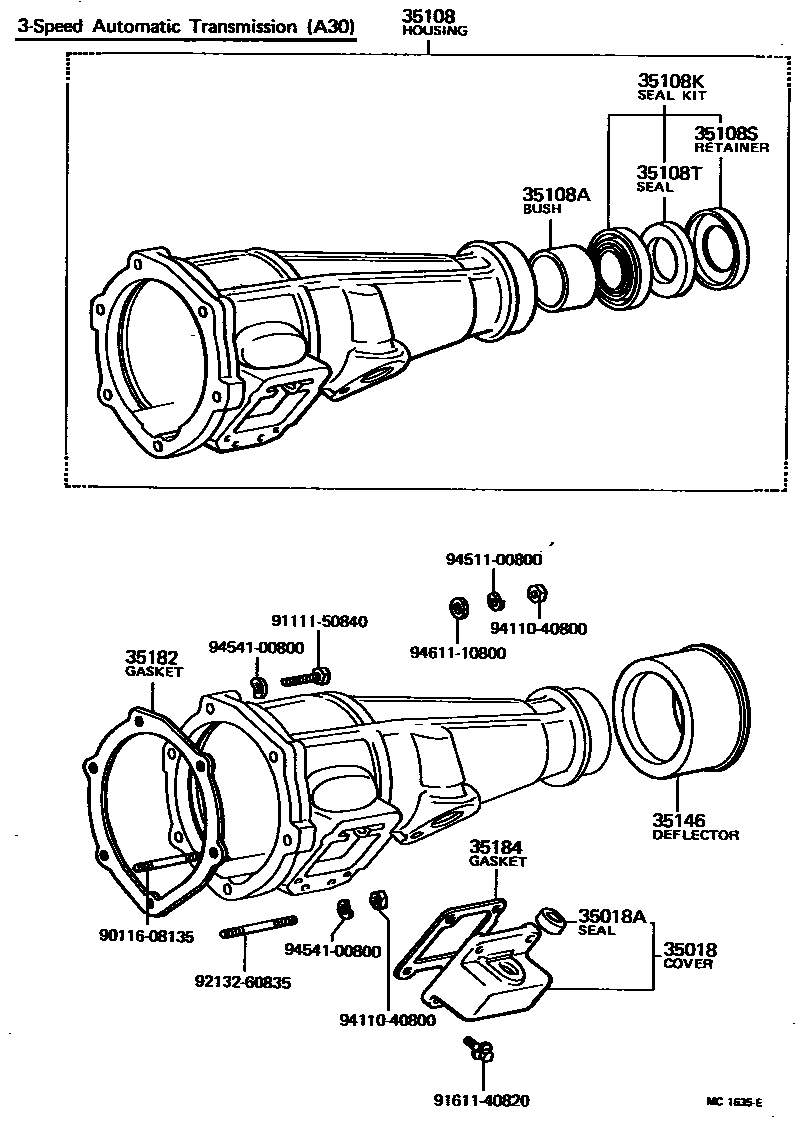

EXTENSION HOUSING (ATM)

0001 1 0002 1

35018COVER SUB-ASSY, EXTENSION HOUSING

main35018-30011iRN22..ATM197404-197708

35018ASEAL, OIL (FOR EXTENSION HOUSING COVER)

main90311-10082iRN22..ATM197404-197708

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-22030iRN22..ATM197708-197807

main35108-22902iRN22..ATM197404-197408

main35108-22903iRN22..ATM197408-197708

35108ABUSH, BIMETAL FORMED (FOR ATM EXTENSION HOUSING)

main90999-73035iRN22..ATM197404-197708

35108KSEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iRN22..ATM197404-197807

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iRN22..ATM197404-197807

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iRN22..ATM197404-197807

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iRN22..ATM197404-197807

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iRN22..ATM197708-197807

main35182-30021iRN22..ATM197204-197708

35184GASKET, EXTENSION HOUSING COVER

main35184-30011iRN22..ATM197404-197708

9011608135

main90116-08135

9111150840

main91111-50840

9161140820

main91611-40820

9213260835

main92132-60835

9411040800

main94110-40800

9451100800

main94511-00800

9454100800

main94541-00800

9461110800

main94611-10800

18 parts on this diagram · 2 diagrams in section
