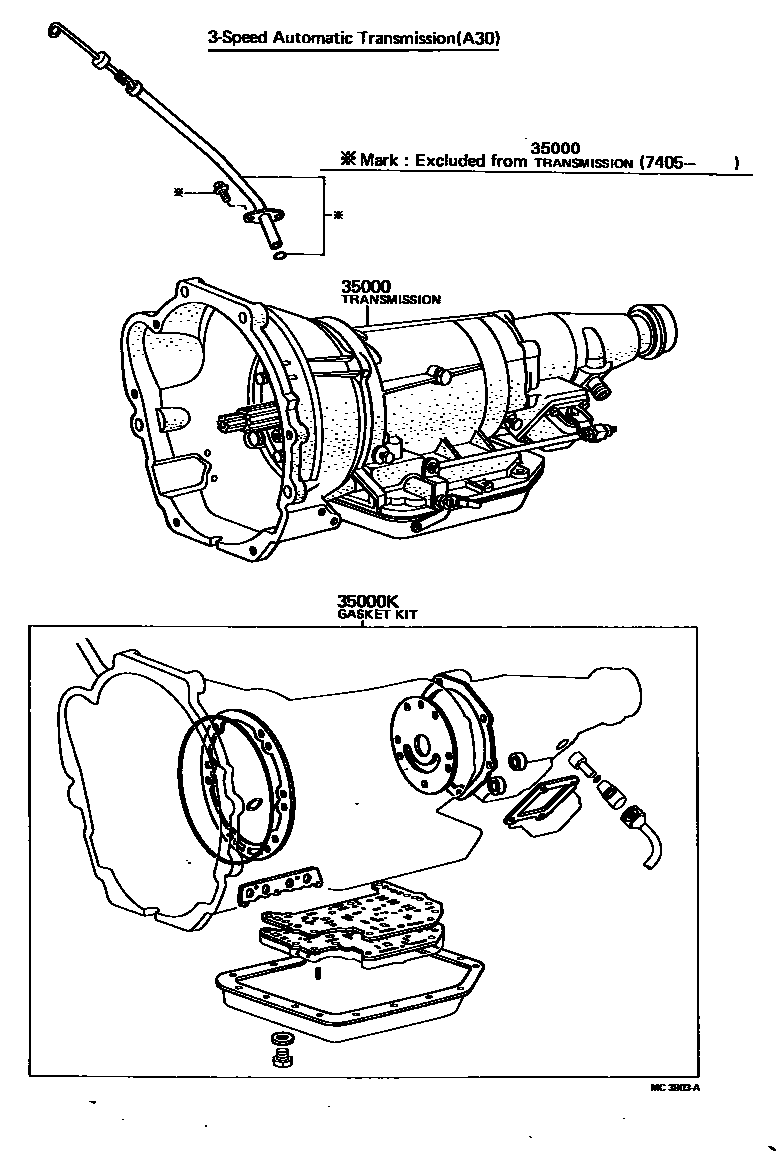

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1 0002 1

35000TRANSMISSION ASSY, AUTOMATIC

main35000-35010iRN22..ATM197404-197405

SMG.R=17:5

main35000-35011iRN22..ATM197405-197406

SMG.R=17:5

main35000-35012iRN22..ATM197406-197708

SMG.R=17:5

main35000-35070iRN22..ATM197708-197805

SMG.R=17:5 DIFF.R=4.375

main35000-35071iRN22..ATM197805-197807

SMG.R=17:5 DIFF.R=4.375

35000KGASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-22020iRN22..ATM197708-197807

main04351-30024iRN22..ATM197404-197708

2 parts on this diagram · 2 diagrams in section
