CARBURETOR ASSEMBLY

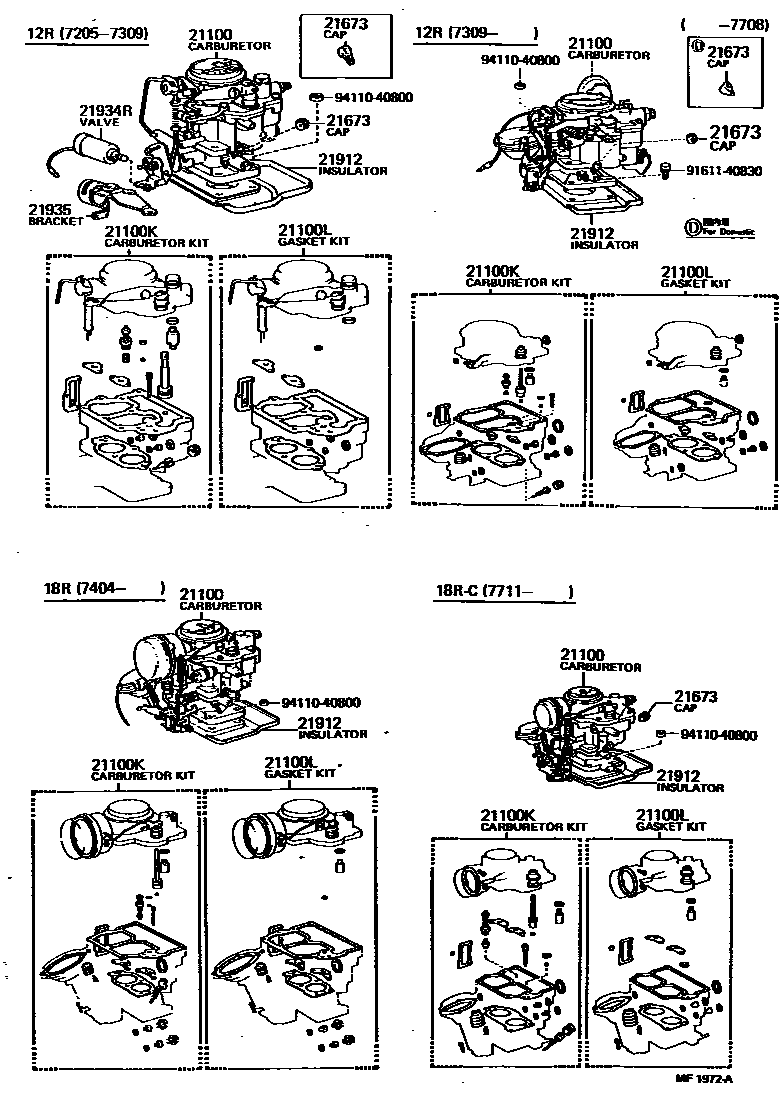

Parts diagram

21100CARBURETOR ASSY

main21100-31223i197304-197309

main21100-31224i197309-197511

main21100-31225i197511-197807

main21100-31230i197205-197206

main21100-31231i197206-197304

main21100-31340i197603-197807

E.C.E. NO.15

main21100-31370i197702-197807

AUSTRALIA N.S.W. SPEC.

main21100-31390i197711-197807

main21100-34310i197404-197509

main21100-34311i197509-197701

main21100-34430i197709-197807

main21100-34460i197701-197709

main21100-34510i197711-197807

18RC

21100KCARBURETOR KIT

main04211-31100i197205-197206

main04211-31101i197206-197309

main04211-31130i197309-197511

main04211-31190i197511-197612

main04211-31191i197612-197807

main04211-31210i197603-197807

E.C.E. NO.15

main04211-31240i197702-197807

AUSTRALIA N.S.W. SPEC.

main04211-31270i197711-197807

main04211-34070i197404-197509

main04211-34130i197509-197701

main04211-34210i197701-197807

main04211-34220i197711-197807

18RC

21100LGASKET KIT, CARBURETOR

main04212-31050i197309-197511

main04212-31060i197511-197807

main04212-33021i197205-197206

main04212-33022i197206-197309

main04212-34011i197404-197701

main04212-36010i197701-197807

21673CAP, IDLE LIMIT

main21673-38020i197612-197807

AUSTRALIA SPEC.

21912INSULATOR, CARBURETOR HEAT

main21912-31030i197205-197309

main21912-31040i197711-197807

main21912-31041i197511-197807

main21912-34011i197404-197701

main21912-34062i197701-197807

21934RVALVE, SOLENOID THROTTLE

main21934-31010i197205-197309

21935BRACKET, THROTTLE VALVE SOLENOID

main21935-31021i197205-197309

9161140830

main91611-40830

9411040800

main94110-40800

9 parts on this diagram · 1 diagram in section
