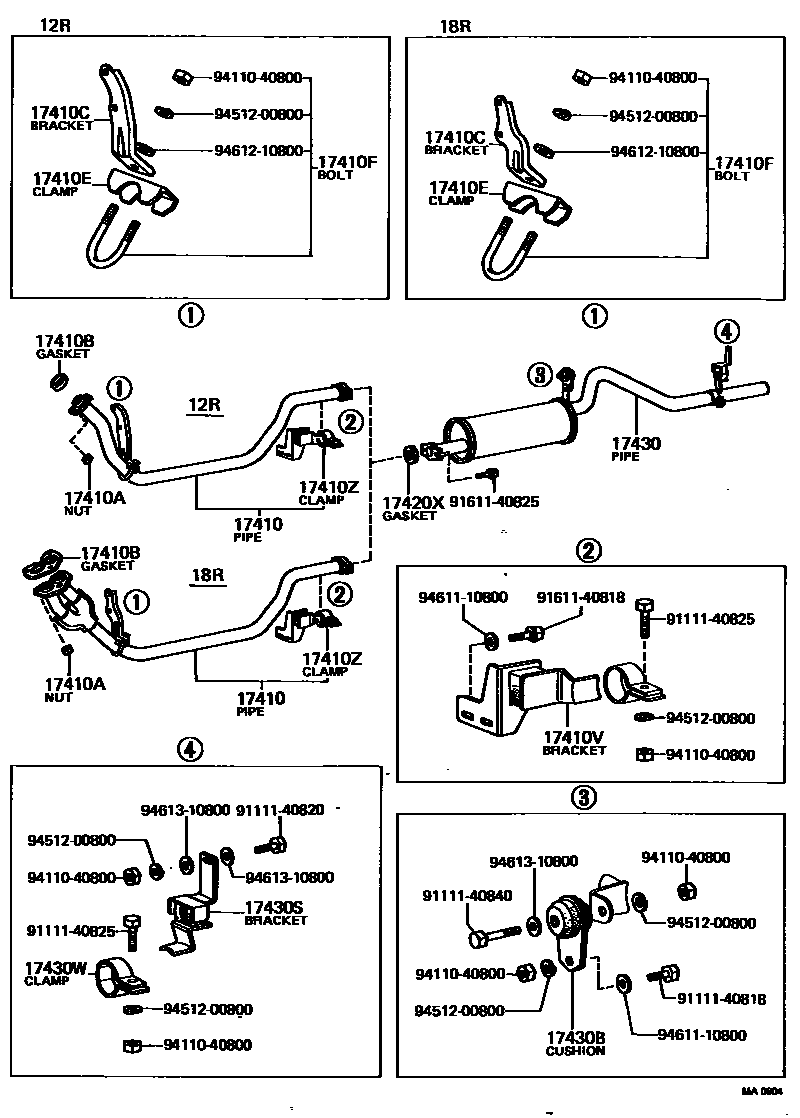

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-31130i12R#..RN20197205-197807

main17410-31131i12R#..RN20197605-197807

W/SUB-MUFFLER

main17410-31150i12R..RN25197205-197605

main17410-31151i12R..RN25197605-197807

W/SUB-MUFFLER

main17410-31210i12R..RN25197605-197807

main17410-34080i18R..RN22197404-197408

main17410-34130i18R..RN22197408-197605

main17410-34131i18R..RN22,27..RHD197605-197807

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90170-10049×2i12R,18R..RN2#197205-197408

main90170-10199×2i12R#,18R..RN2#197408-197807

17410BGASKET, EXHAUST PIPE

main17451-41010i18R..RN22,27197404-197807

main90917-06004i12R#..RN20,25197205-197807

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-31050i12R..RN20,25197205-197408

main17571-31070i12R#..RN20,25197408-197807

main17571-34050i18R..RN22197404-197408

main17571-34080i18R..RN22197408-197703

main17571-34081i18R..RN22,27197703-197807

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04007i12R,18R..RN2#197205-197408

main90917-04021i12R#,18R..RN2#197408-197807

17410FBOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)

main90118-08135i12R#,18R..RN2#197408-197807

main90999-99002i12R,18R..RN2#197205-197408

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17561-31060i18R..RN22197404-197408

main17561-34040i18R..RN22197408-197605

17410ZCLAMP NO.2, EXHAUST PIPE FRONT (FOR REAR)

main90461-23204i12R,18R..RN2#197205-197605

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06004i12R#,18R..RN2#197205-197807

17430PIPE ASSY, EXHAUST, TAIL

main17430-31040i12R,18R..RN2#197205-197408

main17430-34220i18R..RN22197408-197605

main17430-34221i18R..RN22197605-197807

main17430-34350i18R..RN27197710-197807

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main90540-09003×2i18R..RN22,27197605-197807

main90917-08004i12R,18R..RN2#197205-197605

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17563-31030i12R,18R..RN2#197205-197605

main17566-38010i18R..RN22,27197605-197807

LOWER

main17577-38011i18R..RN22197605-197612

UPPER

main17577-38012i18R..RN22,27197612-197807

UPPER

main17577-38021i18R..RN27197710-197807

17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)

main90461-23188i12R,18R..RN2#197205-197605

main90461-23556i18R..RN22,27197605-197807

9111140818

main91111-40818

9111140820

main91111-40820

9111140825

main91111-40825

9111140840

main91111-40840

9161140818

main91611-40818

9161140825

main91611-40825

9411040800

main94110-40800

9451200800

main94512-00800

9461110800

main94611-10800

9461210800

main94612-10800

9461310800

main94613-10800

24 parts on this diagram · 3 diagrams in section
