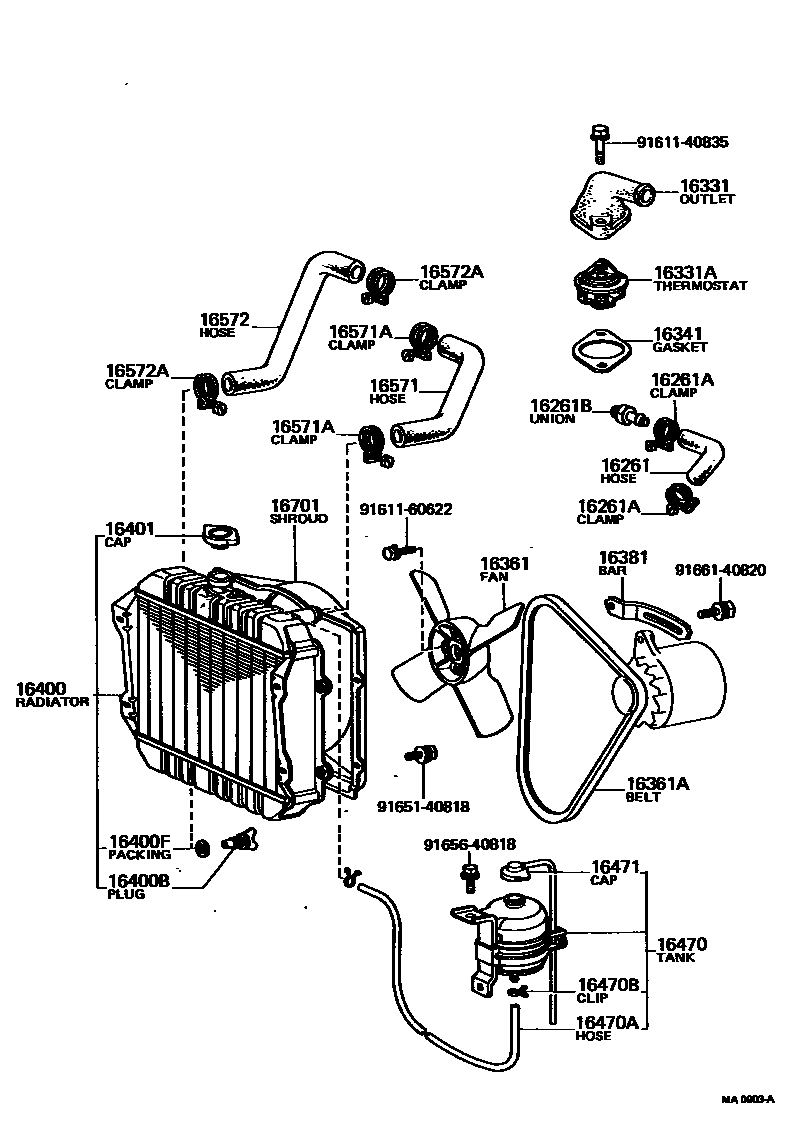

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16261HOSE, WATER BY-PASS

main16261-31010i12R..RN20,25197205-197511

main90910-05081i18R..RN22197408-197509

main90910-05106i18R..RN22,27197509-197807

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-23022×2i12R..RN20,25197205-197411

main96112-10160×2i18R..RN22,27197404-197807

main96112-10240×2i12R..RN20,25197411-197511

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-17005i18R..RN22,27197708-197807

main90404-52072i12R..RN20,25197205-197511

16331OUTLET, WATER

main16331-31010i12R..RN20,25197205-197511

main16331-31020i12R..RN2#197205-197309

CAST IRON BODY

main16331-31031i12R..RN20,25197511-197807

main16331-31051i12R..RN20,25197603-197807

E.C.E. NO.15

main16331-36011i18R..RN22197404-197610

main16331-36012i18R..RN22,27197610-197807

16331ATHERMOSTAT

main90916-03020i12R..RN2#197205-197309

WAX 82-95 FUJI-THOMSON

main90916-03021i12R..RN2#197205-197309

WAX 82-95 KUZEH

main90916-03024i12R..RN2#197205-197309

WAX 75-85 KUZEH

main90916-03033i18R..RN22197404-197709

WAX 82-95 FUJI-THOMSON

main90916-03034i12R..RN20,25197309-197807

WAX 82-95 FUJI-THOMSON

main90916-03036i18R..RN22,27197709-197807

WAX 88-100 FUJI-THOMSON

main90916-03037i12R..RN20,25197709-197807

WAX 82-95 KUZEH

main90916-03038i12R..RN20,25..4H197702-197807

WAX 82-95 (K) AUSTRALIA N.S.W.

main90916-03040i18R..RN22,27197709-197807

WAX 88-100 KUZEH

16341GASKET, WATER OUTLET

main16341-49010i12R#,18R..RN2#197205-197807

16361FAN

main16361-31020i12R..RN2#197205-197206

4 BLADES

main16361-31021i12R#..RN20,25197206-197807

4 BLADES

main16361-31050i12R..RN20,25197511-197807

5 BLADES,W/COOLER

main16361-33020i18R..RN22..MTM197702-197709

6 BLADES

main16361-34030i18R..RN22197509-197702

7 BLADES

main16361-38010i18R..RN22,27197709-197807

7 BLADES

main16361-41022i18R..RN22..ATM197702-197709

6 BLADES

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02048i18R..RN27197711-197807

L=840,18RC

main90916-02052i12R..RN20,25197511-197612

L=890

main90916-02060i12R#..RN20,25197612-197804

L=890

main99332-00890i12R#..RN20,25197804-197807

L=890

main99521-10839i18R..RN22,27197607-197807

L=839

main99521-10843i18R..RN22197404-197607

L=843

main99521-10873i12R..RN2#197205-197206

L=873

main99521-10887i12R..RN20,25197312-197511

L=887

main99521-10897i12R..RN2#197206-197312

L=897

16381BAR, FAN BELT ADJUSTING

main16381-30020i12R..RN20,25..RHD197205-197511

12V 480W ALTERNATOR

main16381-31011i12R..RN20,25197205-197511

main16381-31012i12R#..RN20,25197511-197807

main16381-33010i18R..RN22197404-197509

main16381-34030i18R..RN22,27197509-197807

16400RADIATOR ASSY

main16400-31110i12R..RN20,25197205-197408

main16400-31111i12R..RN20,25197408-197511

main16400-31112i12R#..RN20,25197511-197807

main16400-34080i18R..RN22..4F197404-197408

main16400-34081i18R..RN22..MTM197408-197709

main16400-34082i18R..RN22,27..MTM197709-197807

main16400-34090i18R..RN22..ATM197404-197408

main16400-34091i18R..RN22..ATM197408-197709

main16400-34092i18R..RN22..ATM197709-197807

16400BPLUG, RADIATOR DRAIN COCK

main90910-09052i12R,18R..RN2#197205-197408

main90910-09054i12R#,18R..RN2#197408-197807

16400FPACKING(FOR RADIATOR DRAIN COCK)

main90099-06030i12R,18R..RN2#197205-197408

main96710-01007i12R#,18R..RN2#197408-197807

16401CAP SUB-ASSY, RADIATOR

main16401-36010i12R#,18R..RN2#197205-197807

16470TANK ASSY, RADIATOR RESERVE

main16470-31010i12R,18R..RN2#197205-197704

main16470-34110i12R#,18R..RN2#197704-197805

main16470-34120i18R..RN22,27197805-197807

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12013i12R,18R..RN2#197408-197704

L=1000(*H,L=700)

main90445-12781i12R,18R..RN2#197205-197408

L=1000(*H,L=750)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i12R,18R..RN2#197205-197704

16471CAP SUB-ASSY, RESERVE TANK

main16471-34110i12R#,18R..RN2#197704-197805

main16471-34120i18R..RN22,27197805-197807

main16471-41060i12R,18R..RN2#197205-197704

16571HOSE, RADIATOR, INLET

main16571-33011i18R..RN22197404-197408

main16571-33012i18R..RN22197408-197504

main16571-34050i18R..RN22,27197504-197807

main16572-31020i12R..RN20,25197205-197408

main16572-31021i12R..RN20,25197408-197511

main16572-31060i12R#..RN20,25197511-197807

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-43005×2i12R..RN20,25197205-197411

main90460-47036×2i18R..RN22197404-197406

main90467-37001i18R..RN22,27197702-197807

WATER OUTLET SIDE

main96111-10430i18R..RN22,27197702-197807

RADIATOR SIDE

main96111-10450×2i18R..RN22197406-197702

16572HOSE, RADIATOR, OUTLET

main16571-31021i12R..RN20,25197205-197408

main16571-31022i12R..RN20,25197408-197511

main16571-31023i12R#..RN20,25197511-197807

main16572-33011i18R..RN22197404-197408

main16572-33012i18R..RN22,27197408-197807

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036×2i12R..RN20,25197205-197411

main90460-49062i18R..RN22197404-197406

ID=49

main96111-10450i18R..RN22,27197406-197807

ID=45

main96111-10460×2i12R#..RN20,25197411-197807

main96111-10480i18R..RN22,27197406-197807

ID=48

16701SHROUD SUB-ASSY, FAN

main16711-31050i12R..RN20,25197205-197408

main16711-31051i12R#..RN20,25197408-197807

main16711-31100i12R..RN20,25197511-197807

W/COOLER,UPPER

main16711-34050i18R..RN22197404-197408

main16711-34051i18R..RN22197408-197709

main16711-34052i18R..RN22,27197709-197807

main16712-31020i12R..RN20,25197511-197807

W/COOLER,LOWER

9161140835

main91611-40835

9161160622

main91611-60622

9165140818

main91651-40818

9165640818

main91656-40818

9166140820

main91661-40820

27 parts on this diagram · 3 diagrams in section
