WATER PUMP

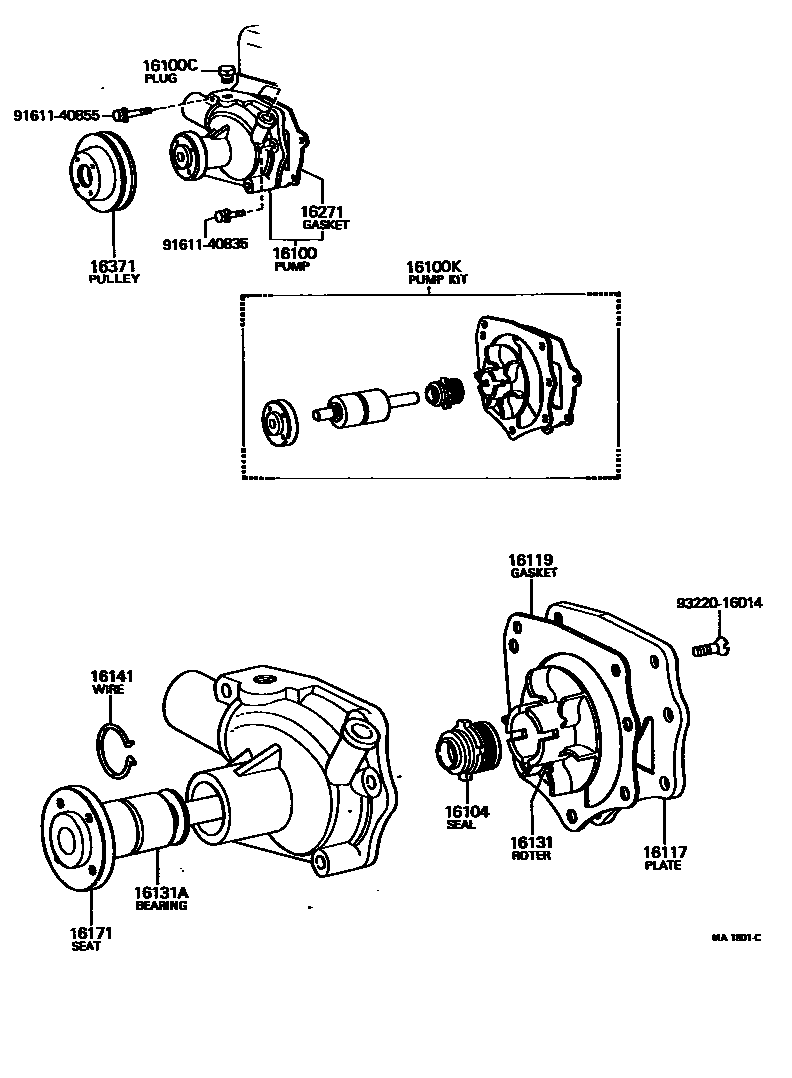

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-39115i197205-197511

main16100-39116i197511-197807

main16100-39125i197205-197309

CAST IRON BODY

main16100-39175i197404-197509

main16100-39176i197509-197708

main16100-39215i197708-197807

main16100-39245i197711-197807

18RC

16100CPLUG, W/HEAD TAPER SCREW

main90345-54002i197704-197807

main90345-54021i197205-197704

16100KPUMP KIT, WATER

main04161-31020i197205-197511

main04161-31021i197511-197708

main04161-31023i197708-197807

16104SEAL SET, WATER PUMP

main16104-30011i197205-197308

main16104-41040i197308-197511

main16104-41110i197511-197807

16117PLATE, WATER PUMP

main16117-31010i197205-197409

main16117-31011i197409-197511

main16117-31031i197511-197807

16119GASKET, WATER PUMP BODY

main16124-31010i197205-197405

main16124-31011i197405-197511

main16124-31031i197511-197807

16131ROTOR, WATER PUMP

main16131-31010i197205-197511

main16131-31031i197511-197708

main16131-31032i197708-197807

main16131-33010i197404-197509

main16131-41110i197509-197807

16131ABEARING, WATER PUMP

main90369-30003i197511-197807

WPB16124 BR

main90369-30005i197711-197807

18RC

main90369-30028i197404-197807

WPB16112-2RS

main90369-30035i197205-197511

WPB16124 RS

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010i197205-197309

CAST IRON BODY

16171SEAT, WATER PUMP PULLEY

main16171-24031i197507-197807

main16171-31030i197205-197507

16271GASKET, WATER PUMP

main16271-30010i197205-197511

main16271-30011i197511-197807

main16271-33010i197404-197807

16371PULLEY, FAN

main16308-31010i197702-197807

AUSTRALIA N.S.W. SPEC.

main16371-31020i197205-197206

main16371-31021i197206-197511

main16371-31022i197511-197807

9161140835

main91611-40835

9161140855

main91611-40855

9322016014

main93220-16014

15 parts on this diagram · 3 diagrams in section
