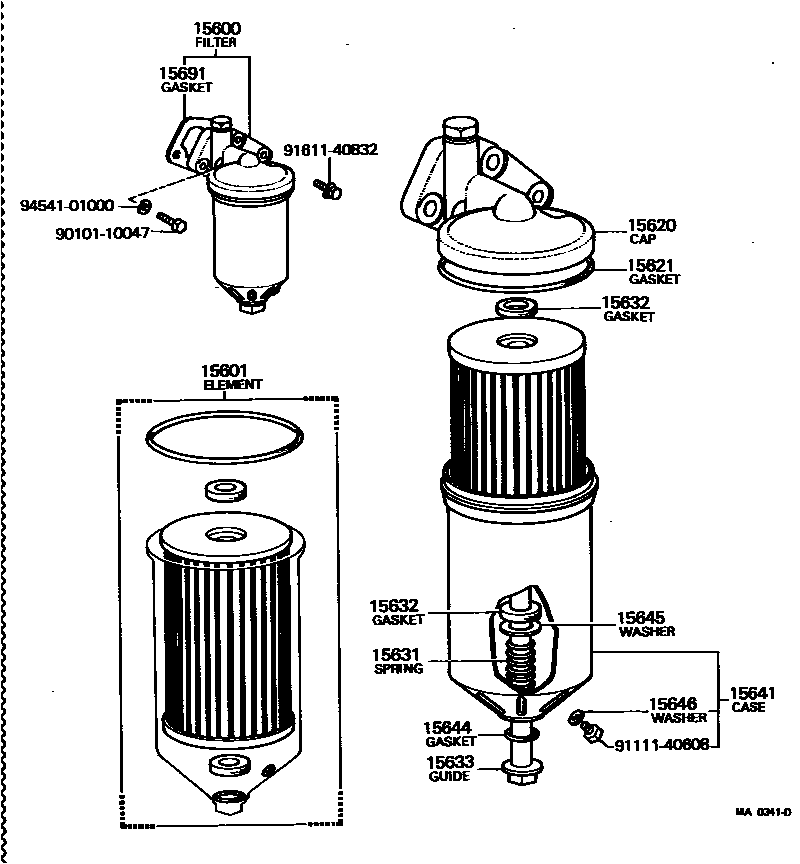

OIL FILTER

0001 1 0002 1

15600FILTER ASSY, OIL

main15600-39015i12R#..RN20,25197205-197807

15601FILTER SUB-ASSY, OIL

main04152-31011i12R#..RN20,25197205-197807

main15601-33010i18R..RN22,27197404-197807

15620CAP ASSY, OIL FILTER

main15620-31012i12R#..RN20,25197205-197807

15621GASKET, OIL FILTER BODY

main15621-22010i18R..RN22,27197404-197807

main15621-31011i12R#..RN20,25197205-197807

15631SPRING, OIL FILTER ELEMENT SUPPORT

main15631-21010i12R#..RN20,25197205-197807

15632GASKET, OIL FILTER ELEMENT

main15632-40020i12R#..RN20,25197205-197807

15633GUIDE, OIL FILTER CARTRIDGE

main15633-21011i12R#..RN20,25197205-197807

15641CASE, OIL FILTER

main15641-31012i12R#..RN20,25197205-197807

15644GASKET, OIL FILTER CARTRIDGE GUIDE

main15644-60010i12R#..RN20,25197205-197807

15645WASHER, OIL FILTER CARTRIDGE GUIDE

main90099-01093i12R#..RN20,25197205-197807

15646WASHER OR GASKET, OIL FILTER DRAIN COCK

main90099-01010i12R#..RN20,25197205-197807

15691GASKET, OIL FILTER

main15691-31010i12R#..RN20,25197205-197807

main15691-33010i18R..RN22,27197404-197807

9010110047

main90101-10047

9111140608

main91111-40608

9161140832

main91611-40832

9454101000

main94541-01000

16 parts on this diagram · 2 diagrams in section
