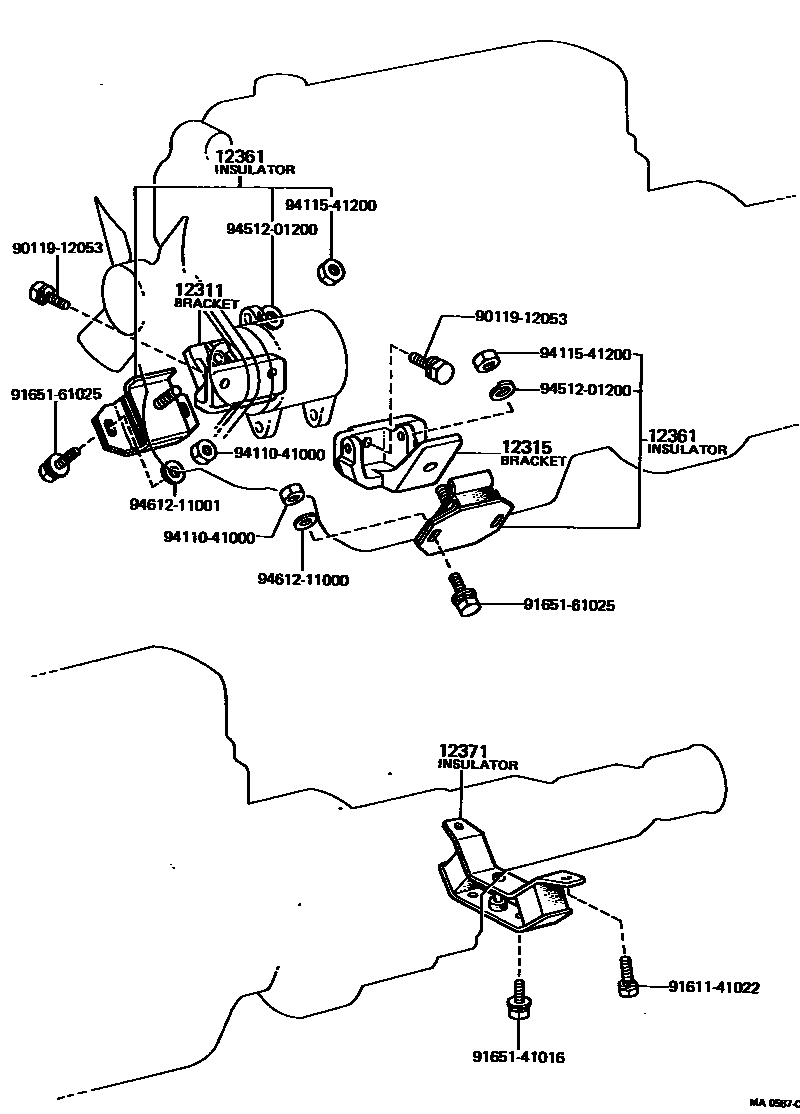

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30010i12R#..RN20,25197205-197807

main12311-33010i18R..RN22197404-197408

main12311-33011i18R..RN22,27197408-197807

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31010i12R..RN20,25197205-197511

main12315-31011i12R#..RN20,25197511-197807

main12315-33010i18R..RN22197404-197408

main12315-33011i18R..RN22,27197408-197807

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-39017×2i12R..RN2#197205-197211

main12361-39018×2i12R#..RN20,25197211-197807

main12361-39027i18R..RN22197404-197408

RH

main12361-39125i18R..RN22197408-197703

RH

main12361-39145i18R..RN22,27197703-197807

RH

main12362-39015i18R..RN22197404-197408

LH

main12362-39055i18R..RN22197408-197703

LH

main12362-39065i18R..RN22,27197703-197807

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31020i12R#..RN20,25; 18R..RN22,27..RHD..MTM197702-197807

main12371-34020i18R..RN22..ATM197702-197707

main12371-34030i18R..RN22..5F197707-197807

9011912053

main90119-12053

9161141022

main91611-41022

9165141016

main91651-41016

9165161025

main91651-61025

9411041000

main94110-41000

9411541200

main94115-41200

9451201200

main94512-01200

9461211000

main94612-11000

9461211001

main94612-11001

13 parts on this diagram · 2 diagrams in section
