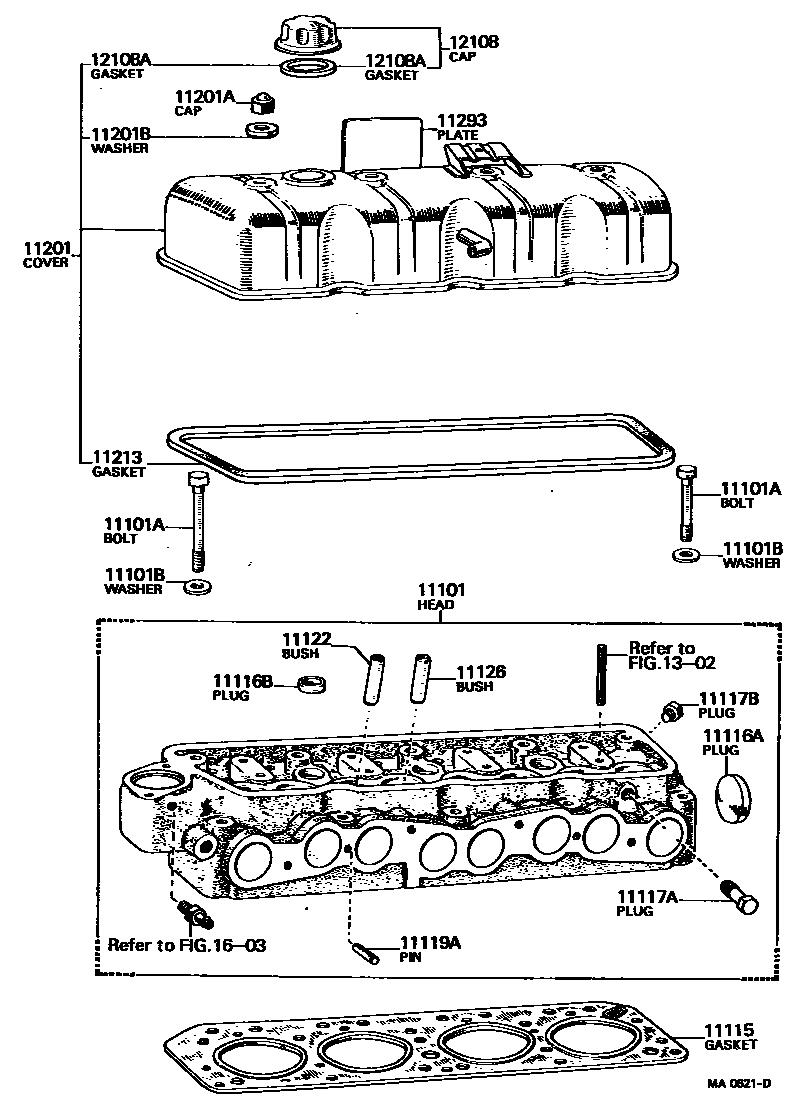

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
18RC
AUSTRALIA N.S.W. SPEC.
11101ABOLT(FOR CYLINDER HEAD SET)
12-1.25PX114-24
12-1.25PX82.5-24
12-1.25PX100-24
12-1.25PX86.5-24
12-1.25PX100-24
12-1.25PX86.5-24
12-1.25PX112-24
12-1.25PX80-24
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11115GASKET, CYLINDER HEAD
11116APLUG, TIGHT, NO.1
OD=50
OD=35
OD=50
11116BPLUG, TIGHT, NO.2
OD=22
OD=20
OD=22
11117APLUG, W/HEAD TAPER SCREW, NO.1
18RC
L=50,S=15
11117BPLUG, W/HEAD TAPER SCREW, NO.2
18RC
L=9,S=7.5
11119APIN, STRAIGHT, NO.1
L=23,OD=8,L=23,OD=8
11122BUSH, INTAKE VALVE GUIDE
STD
STD
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
STD
O/S 0.05
11201COVER SUB-ASSY, CYLINDER HEAD
L/PCV
L/PCV
W/PCV
W/PCV
W/PCV
W/PCV
W/PCV
L/PCV
L/PCV
W/PCV
W/PCV
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
11293PLATE, ENGINE CAUTION & ENGINE NAME
18RC
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
