ENGINE OVERHAUL GASKET KIT

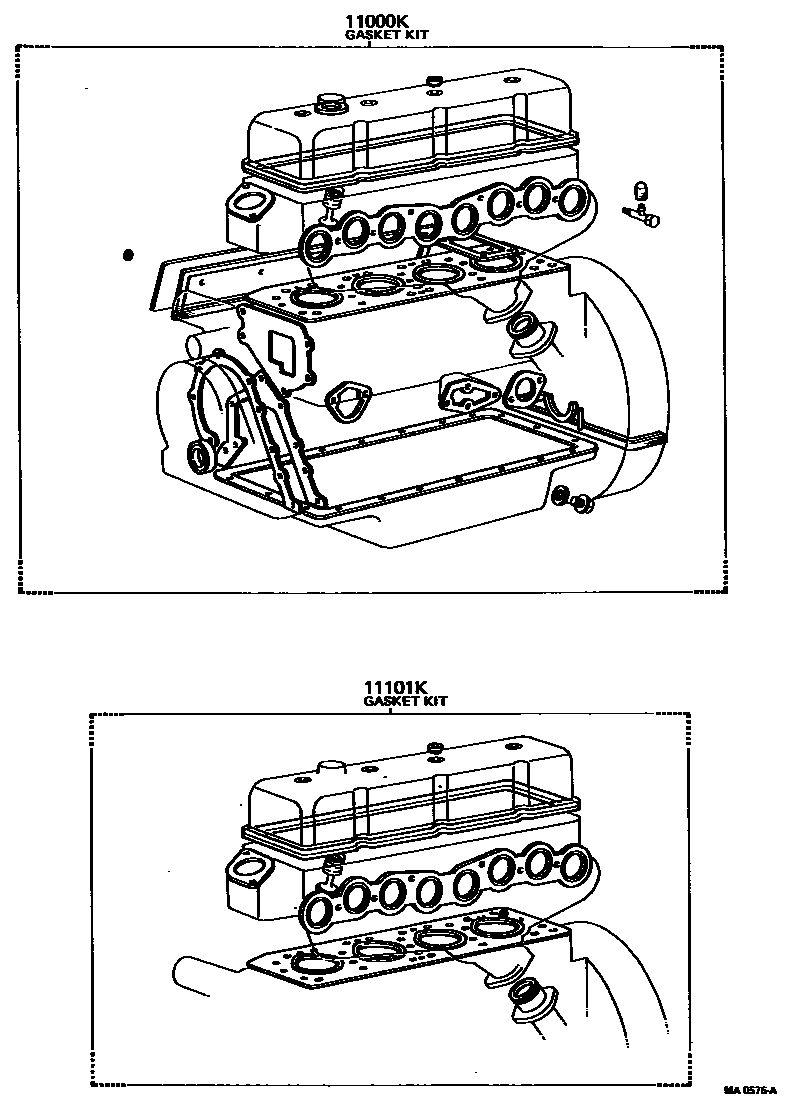

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-31020i197205-197511

main04111-31030i197511-197701

main04111-31031i197701-197802

main04111-31032i197802-197807

main04111-34062i197712-197807

main04111-34080i197708-197712

main04111-36010i197404-197511

main04111-36011i197511-197701

main04111-36012i197701-197708

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-31020i197205-197511

main04112-31030i197511-197701

main04112-31031i197701-197802

main04112-31032i197802-197807

main04112-34060i197708-197807

main04112-36010i197404-197708

2 parts on this diagram · 2 diagrams in section
