SHORT BLOCK ASSEMBLY

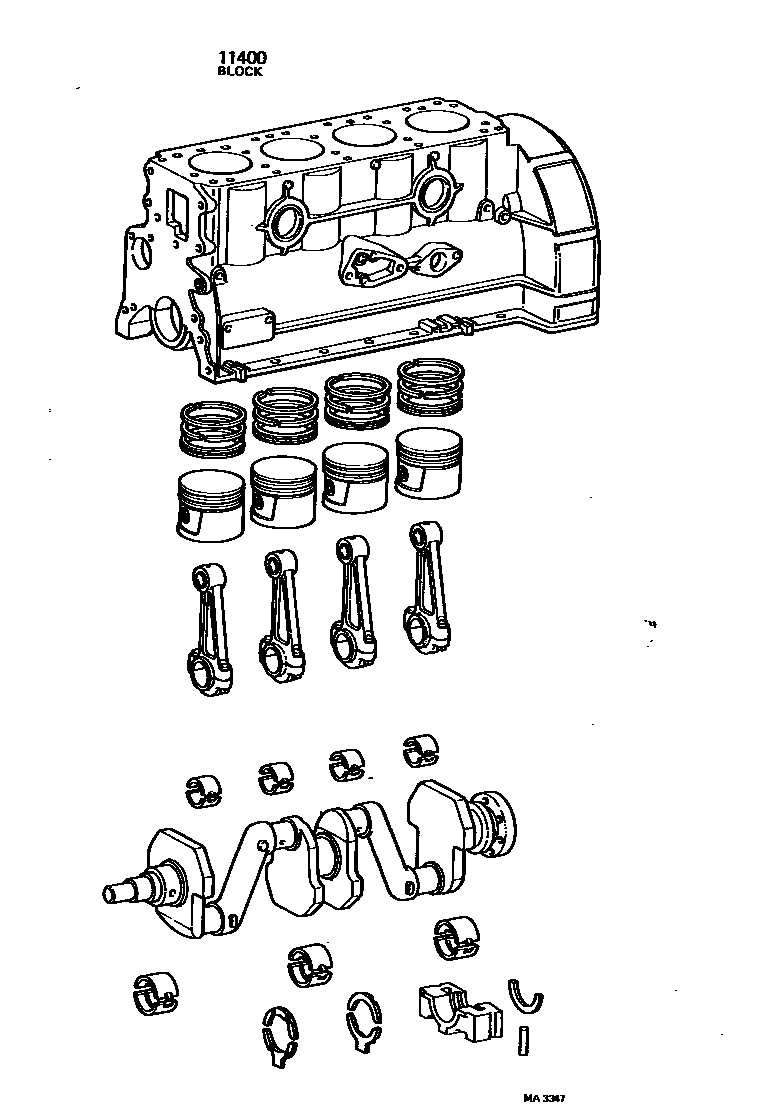

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31021i197205-197511

main11400-31022i197511-197807

main11400-34040i197404-197509

main11400-34041i197509-197701

main11400-34042i197701-197701

main11400-34043i197701-197807

1 parts on this diagram · 2 diagrams in section
