STANDARD TOOL

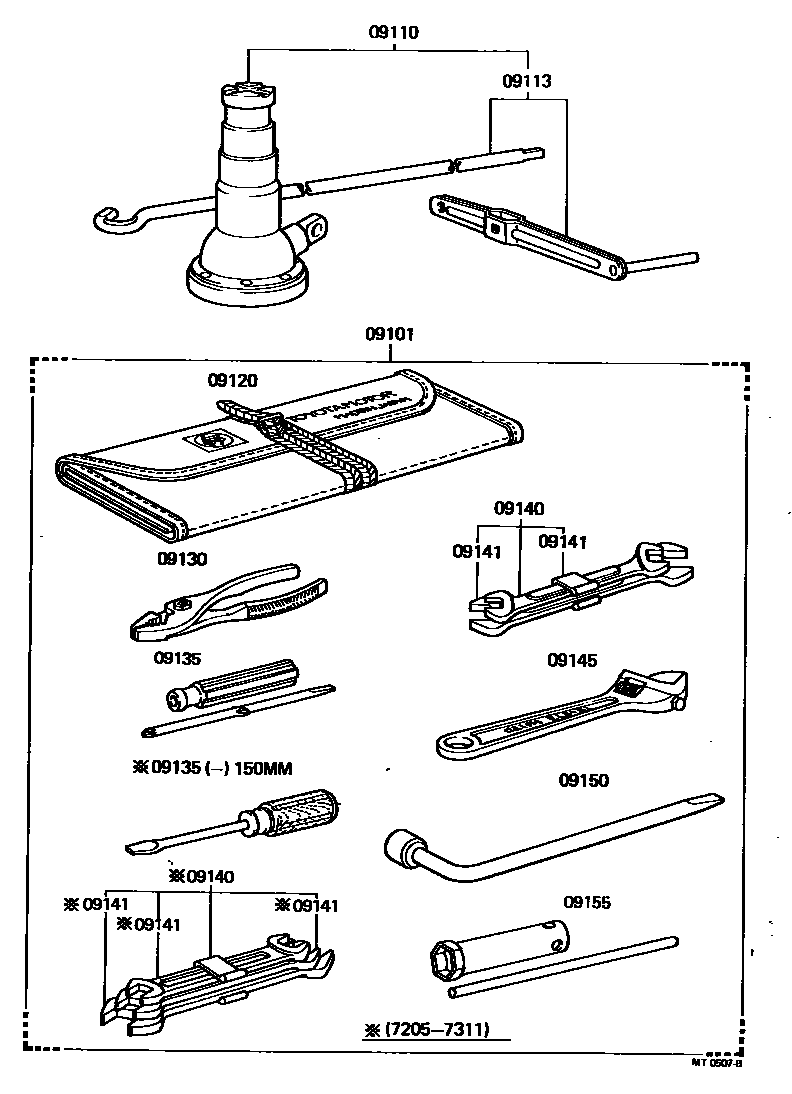

Parts diagram

09101TOOL SET, STANDARD W/O JACK

main09101-26010i197205-197311

main09101-26030i197311-197807

09110JACK ASSY

main09110-35040i197205-197311

main09110-35070i197311-197807

09113HANDLE, JACK

main09113-35030i197205-197807

09120BAG, TOOL

main09120-26010i197205-197311

main09120-26020i197311-197510

main09120-26021i197510-197807

09130PLIERS

main09130-00011i197205-197807

09135DRIVER, SCREW

main09135-00010i197205-197807

(+) (-)

main09135-00060i197205-197311

(-) 150

09140SPANNER SET

main09140-00013i197205-197311

main09140-22010i197311-197807

09141SPANNER

main09141-00011i197205-197311

8X10

main09141-00030i197205-197807

10X12

main09141-00050i197205-197807

14X17

09145WRENCH, MONKEY

main09145-00020i197205-197807

09150WRENCH, HUB NUT BOX

main09150-30011i197205-197807

09155WRENCH, SPARK PLUG

main09155-36010i197205-197807

11 parts on this diagram · 1 diagram in section
