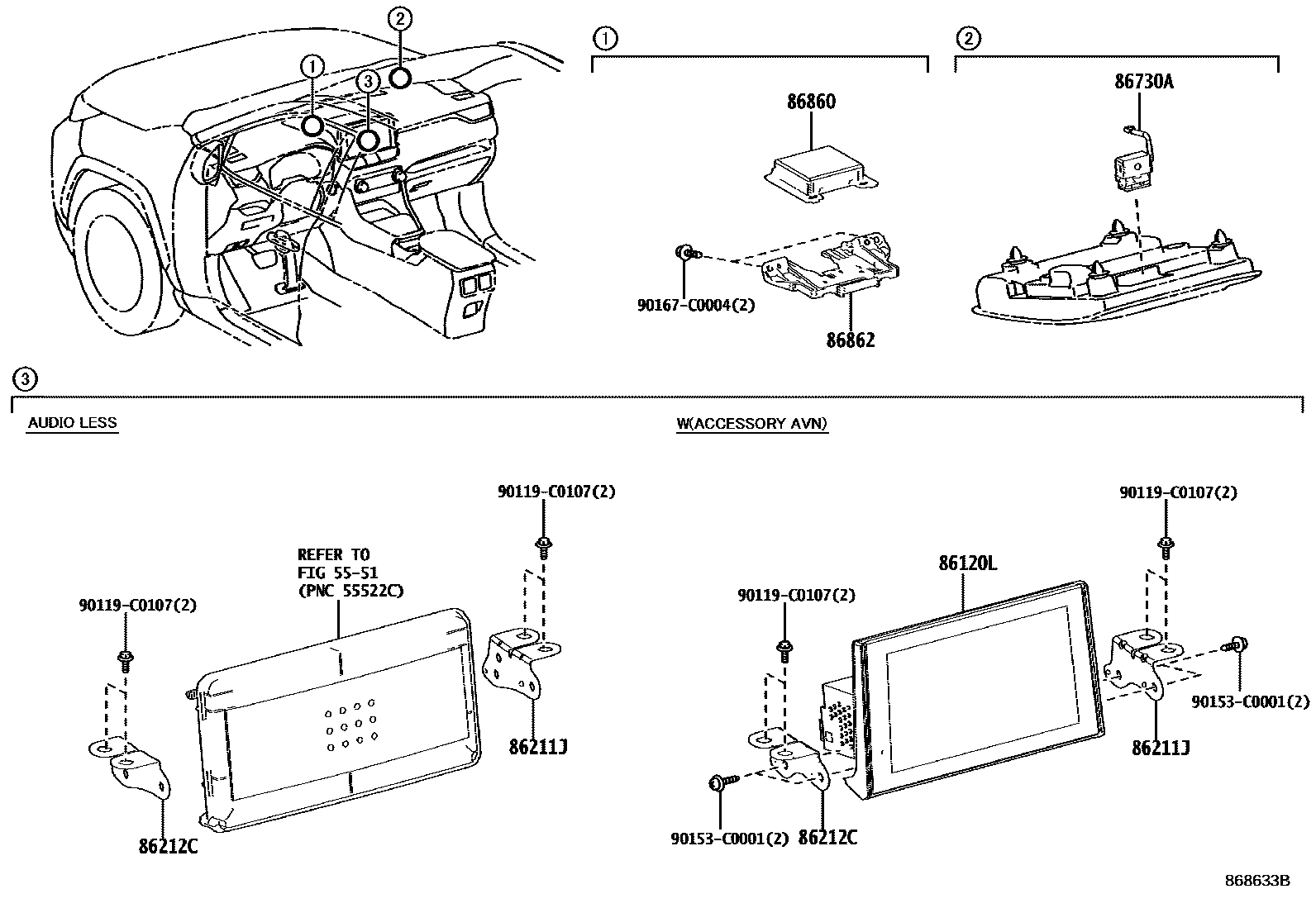

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

86120LRECEIVER ASSY, NAVIGATION

main86100-YY290iAXAP5#..M202105-202304

PIONEER,AUDIO-AVN(AVN GRILL COLOR:SILVER)

main86100-YY300iAXAP54..A202105

PIONEER,AUDIO-AVN(AVN GRILL COLOR:GUN BLACK)

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-0R110iAXAP5#..M202105-202304

main86211-0R170iAXAP5#202304

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-0R110iAXAP5#..M202105-202304

main86212-0R170iAXAP5#202304

86730AMICROPHONE ASSY, TELEPHONE

main86730-06060iAXAP5#..M202105-202304

main86730-0E080×2iAXAP5#202304

86860ANTENNA ASSY, NAVIGATION

main86880-02040iAXAP5#..M202105-202304

main86880-02100iAXAP5#202304

86862BRACKET, NAVIGATION ANTENNA

main86862-0E030iAXAP5#202407

main86862-42010iAXAP5#..M202105-202304

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90167C0004

main90167-C0004

10 parts on this diagram · 2 diagrams in section
