METER

0001 1COMBINATION METER 0002 1HEAD UP DISPLAY

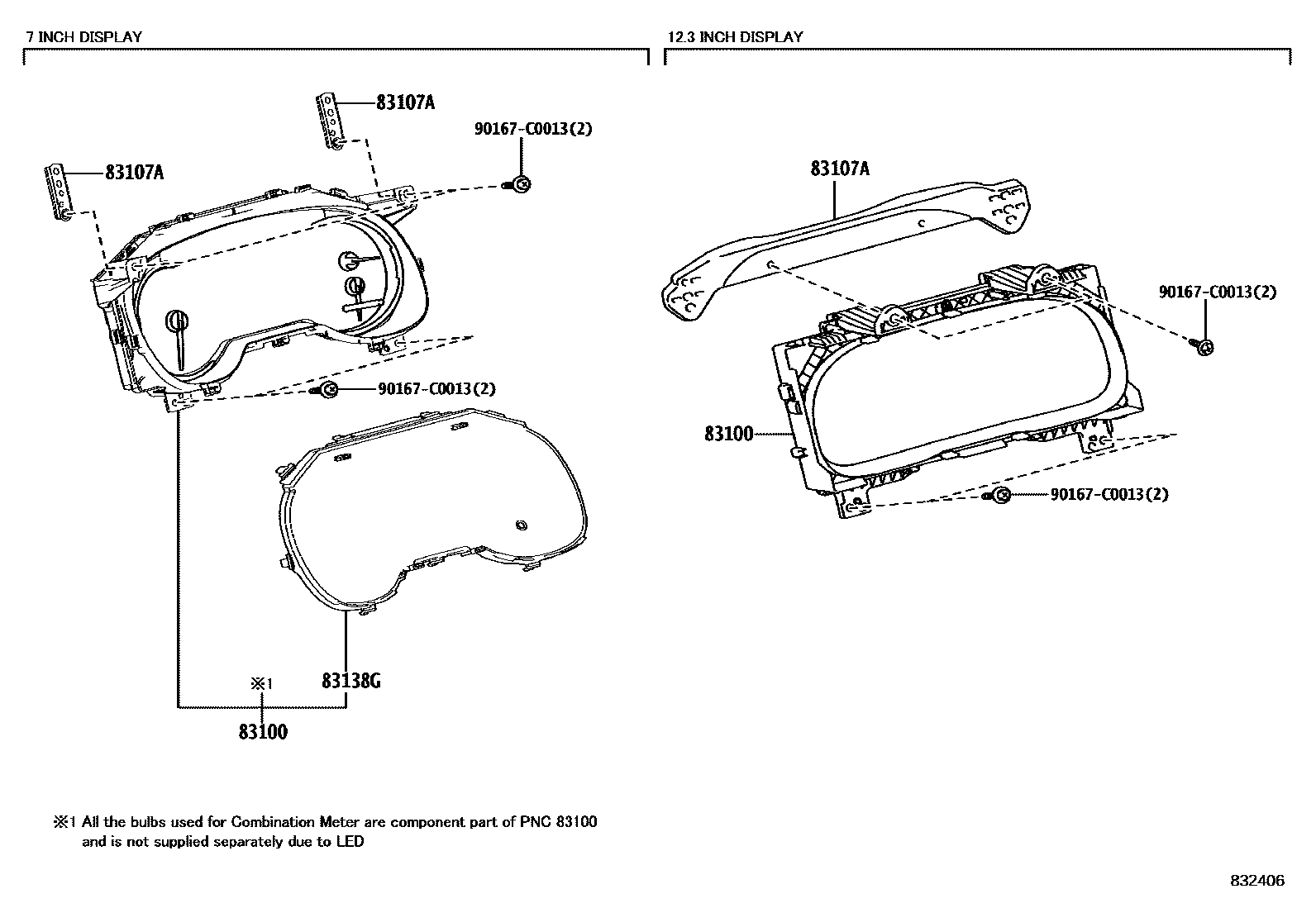

83100METER ASSY, COMBINATION

main83800-0R860iAXAP5#..M202105-202108

DENSO,*614

main83800-0R861iAXAP5#..M202109-202304

DENSO,*614

main83800-0R880iAXAP54..A202105

DENSO,*614

main83800-0RE30iAXAP5#202304-202307

DENSO,*614

main83800-0RE31iAXAP5#202307-202308

DENSO,*614

main83800-0RE32iAXAP5#202308-202401

DENSO,*614

main83800-0RE33iAXAP5#202401-202405

DENSO,*614

main83800-0RK70iAXAP5#202405-202408

DENSO,*614

main83800-0RK71iAXAP5#202409

DENSO,*614

83107ABRACKET SUB-ASSY, METER, NO.1

main83107-0R040×2iAXAP5#..M202105-202304

main83107-0R110iAXAP54..A202105

83138GGLASS, COMBINATION METER

main83852-0R570iAXAP5#..M202105-202304

90167C0013

main90167-C0013

4 parts on this diagram · 2 diagrams in section
