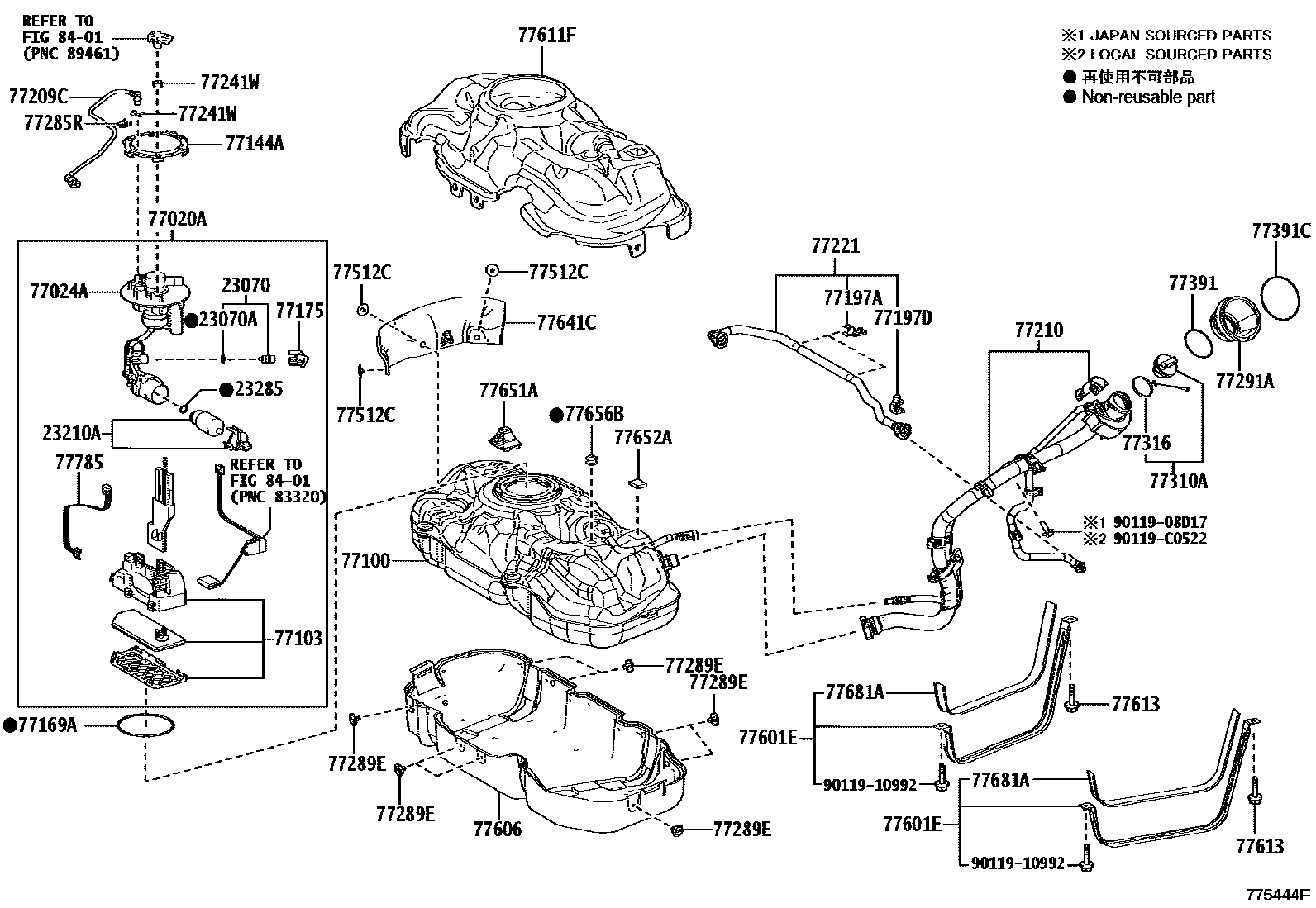

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
(J)
(L)
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
23285RING, O
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77103SUB-TANK SUB-ASSY, FUEL
77144ARETAINER, FUEL PUMP GAUGE
77175SUPPORT, FUEL SUCTION, NO.2
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77197DCLAMP, EVAPORATION VENT TUBE, NO.2
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77221TUBE, FUEL TANK BREATHER, NO.1
77241WCLIP, TUBE JOINT
77285RCLAMP, FUEL TUBE, NO.1
(J)
(L)
77289ECLAMP, FUEL TANK, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391CRING, UREA INLET BOX
77601EBAND SUB-ASSY, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611FCOVER, FUEL TANK, UPPER
77613BOLT, FUEL TANK BAND SET
77641CPROTECTOR ASSY, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
(L)
(J)
77681ASEAT, FUEL TANK BAND
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
9011908D17
main90119-08D17
9011910992
main90119-10992
90119C0522
main90119-C0522
