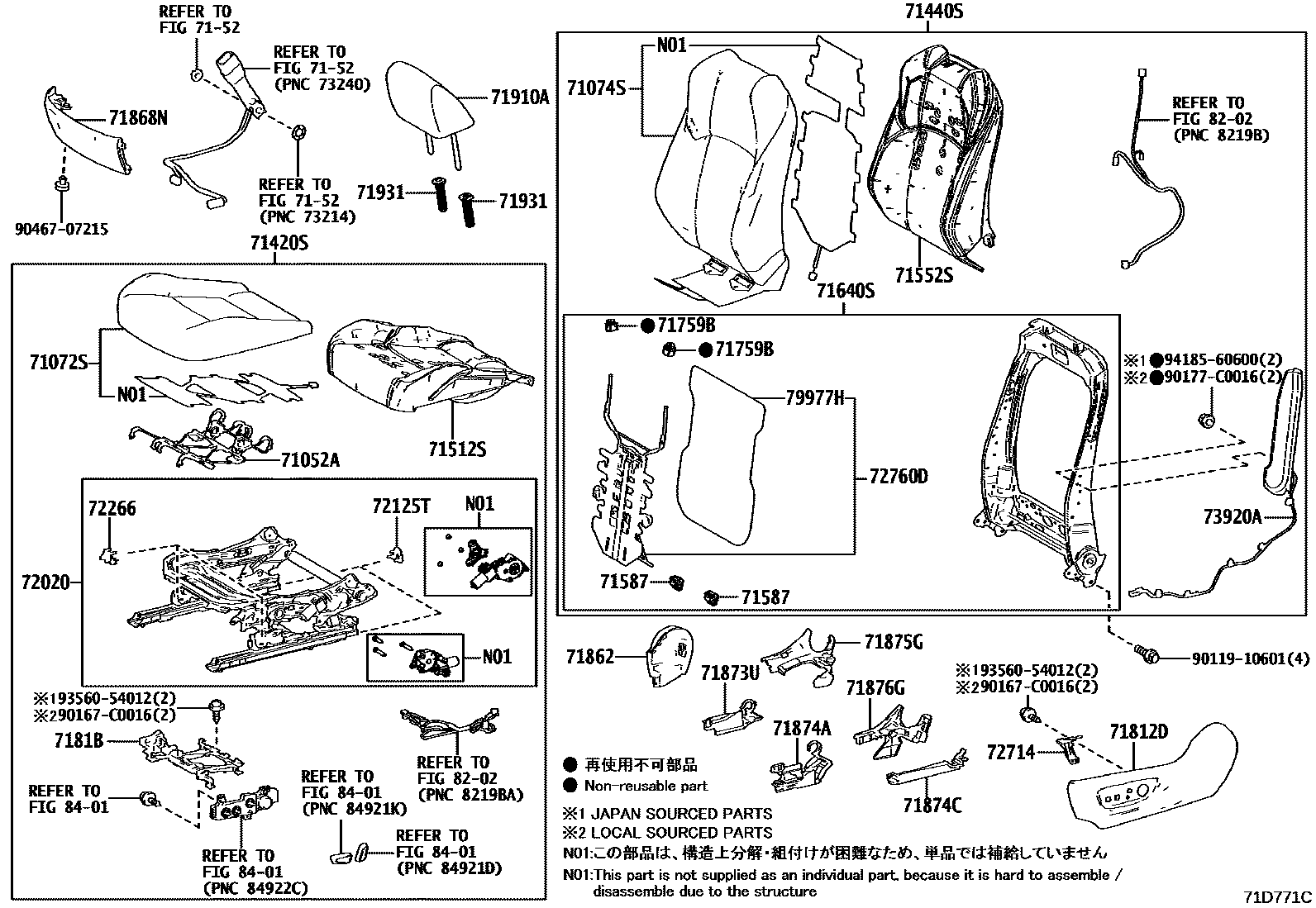

SEAT & SEAT TRACK

0001 1DRIVER SIDE 0002 1PASSENGER SIDE 0003 1PASSENGER SIDE 0004 1FRONT SEAT FITTING PARTS 0005 1REAR SEAT BACK 0006 1REAR SEAT CUSHION 0007 1REAR SEAT FITTING PARTS

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06040iAXAP5#..M202105-202304

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0R510-C1iAXAP5#..M202105-202304

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0R610-C1iAXAP5#..M202105-202201

BLACK,TRIM2#

main71074-0R620-C1iAXAP54..A202105-202201

BLACK,TRIM2#

main71074-0RA00-C0iAXAP5#..M202201-202206

BLACK,TRIM2#

main71074-0RA00-C1iAXAP5#..M202206-202304

BLACK,TRIM2#

main71074-0RA10-C0iAXAP54..A202201-202206

BLACK,TRIM2#

main71074-0RA10-C1iAXAP54..A202206

BLACK,TRIM2#

main71074-0RA30-C1iAXAP5#..M202304

BLACK,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-0R480-C1iAXAP5#..M202105-202304

BLACK,TRIM2#

main71420-0R860-C0iAXAP5#202304

BLACK,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-0R580-C1iAXAP5#..M202105-202201

BLACK,TRIM2#

main71440-0R590-C1iAXAP54..A202105-202201

BLACK,TRIM2#

main71440-0RA70-C0iAXAP5#..M202201-202206

BLACK,TRIM2#

main71440-0RA70-C1iAXAP5#..M202206-202304

BLACK,TRIM2#

main71440-0RA80-C0iAXAP54..A202201-202206

BLACK,TRIM2#

main71440-0RA80-C1iAXAP54..A202206

BLACK,TRIM2#

main71440-0RA90-C1iAXAP5#..M202304

BLACK,TRIM2#

main71440-0RB00-C1iAXAP54..G202304

BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0R250iAXAP5#..M202105-202304

7152SEAT BELT

→ Go to FIG 71-52

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0R240iAXAP5#..M202105-202304

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-06010×4iAXAP54..A202105

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-0R320iAXAP5#..M202105-202304

main71640-0R390iAXAP5#202304

71759BHOOK, FRONT SEATBACK

main71759-06030×4iAXAP5#..M202105-202304

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0R190-C0iAXAP5#..M202105-202304

BLACK,TRIM2#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-0R040iAXAP5#..M202105-202304

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06340-C0iAXAP5#..M202105-202304

BLACK,TRIM2#

71868NSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-0R070-C0iAXAP5#..M202105-202304

BLACK,TRIM2#

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-0R090iAXAP5#202304

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0R080iAXAP5#..M202105-202304

71874CSHIELD, FRONT SEAT CUSHION, LOWER

main71874-0R100iAXAP5#..M202105-202304

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-0R070-C0iAXAP5#202304

BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-0R060-C0iAXAP5#202304

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-0R330-C2×2iAXAP5#..M202105-202304

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-06070-C0×3iAXAP5#..M202105-202201

W(LOCK),BLACK,TRIM2#

main71931-06060-C0×2iAXAP5#..M202201-202304

W/O(LOCK),BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-0R130iAXAP5#202304

main72020-0R180iAXAP54..A202105

72125TCOVER, FRONT SEAT TRACK, UPPER REAR LH

main72125-06050×2iAXAP5#202304

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-06020×2iAXAP5#..M202105-202304

72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-0R020iAXAP5#..M202105-202304

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-02080iAXAP5#..M202105-202304

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0R090iAXAP5#..M202105-202304

79977HFELT, FRONT SEATBACK, LH

main79977-06080iAXAP5#..M202105-202304

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011910601

main90119-10601

90167C0016

main90167-C0016

90177C0016

main90177-C0016

9046707215

main90467-07215

9356054012

main93560-54012

9418560600

main94185-60600

37 parts on this diagram · 7 diagrams in section
