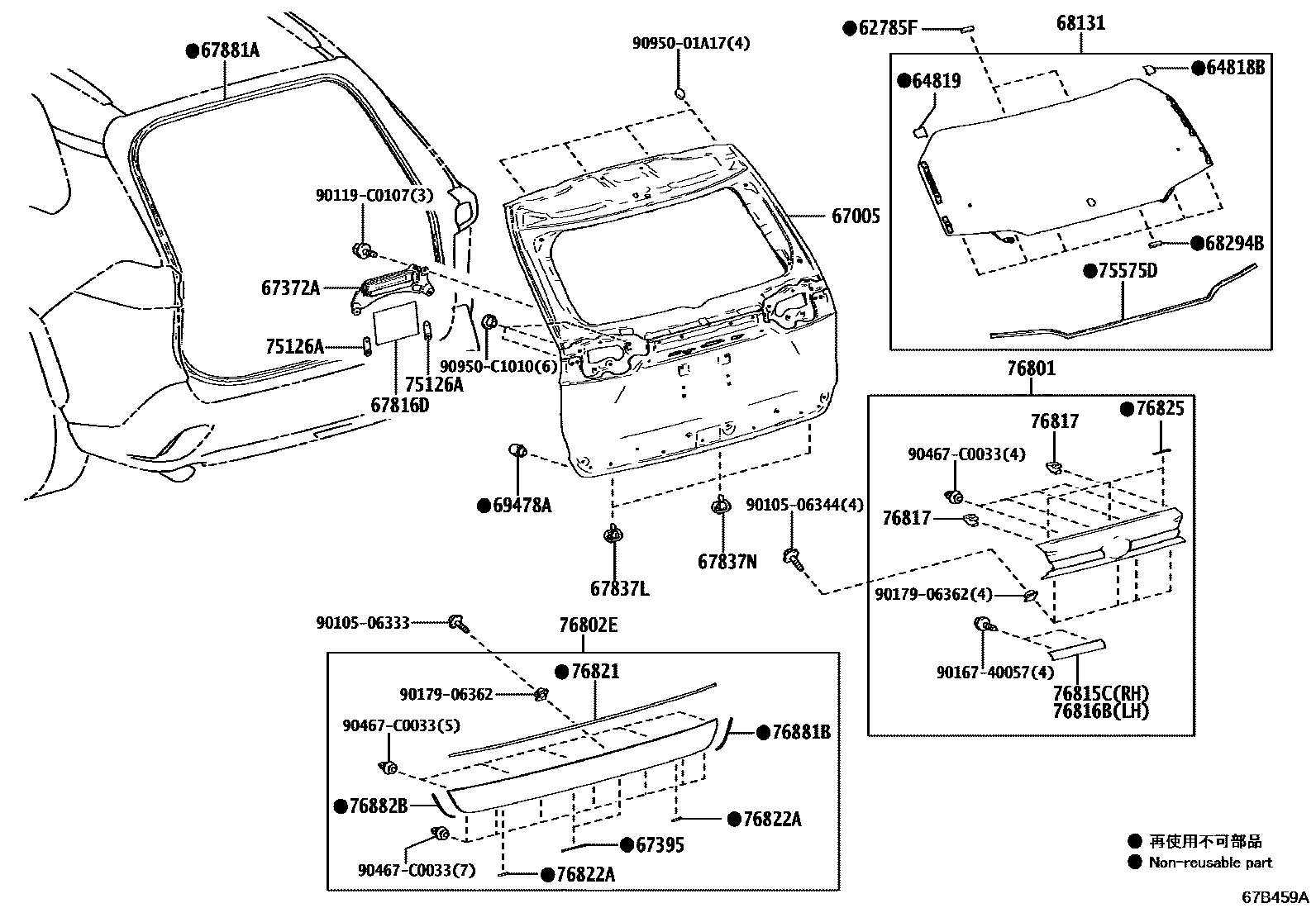

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
67372AWEIGHT, BACK DOOR
67395PROTECTOR, BACK DOOR, LOWER
67816DSHEET, BACK DOOR PANEL SILENCER
67837LSEAL, DOOR DUST PROOF
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68294BDAM, BACK DOOR GLASS ADHESIVE
69478ACUSHION, BACK DOOR LOWER STOPPER
75126APLATE, REAR LICENSE PLATE BRACKET SUPPORT
75575DMOULDING, BACK WINDOW, LOWER
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
PLATED
76802EGARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER
76815CMOULDING, BACK DOOR OUTSIDE GARNISH, LWR RH
76816BMOULDING, BACK DOOR OUTSIDE GARNISH, LWR LH
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76822APROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH
76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH
9010506333
main90105-06333
9010506344
main90105-06344
90119C0107
main90119-C0107
9016740057
main90167-40057
9017906362
main90179-06362
90467C0033
main90467-C0033
9095001A17
main90950-01A17
90950C1010
main90950-C1010
33 parts on this diagram · 2 diagrams in section
