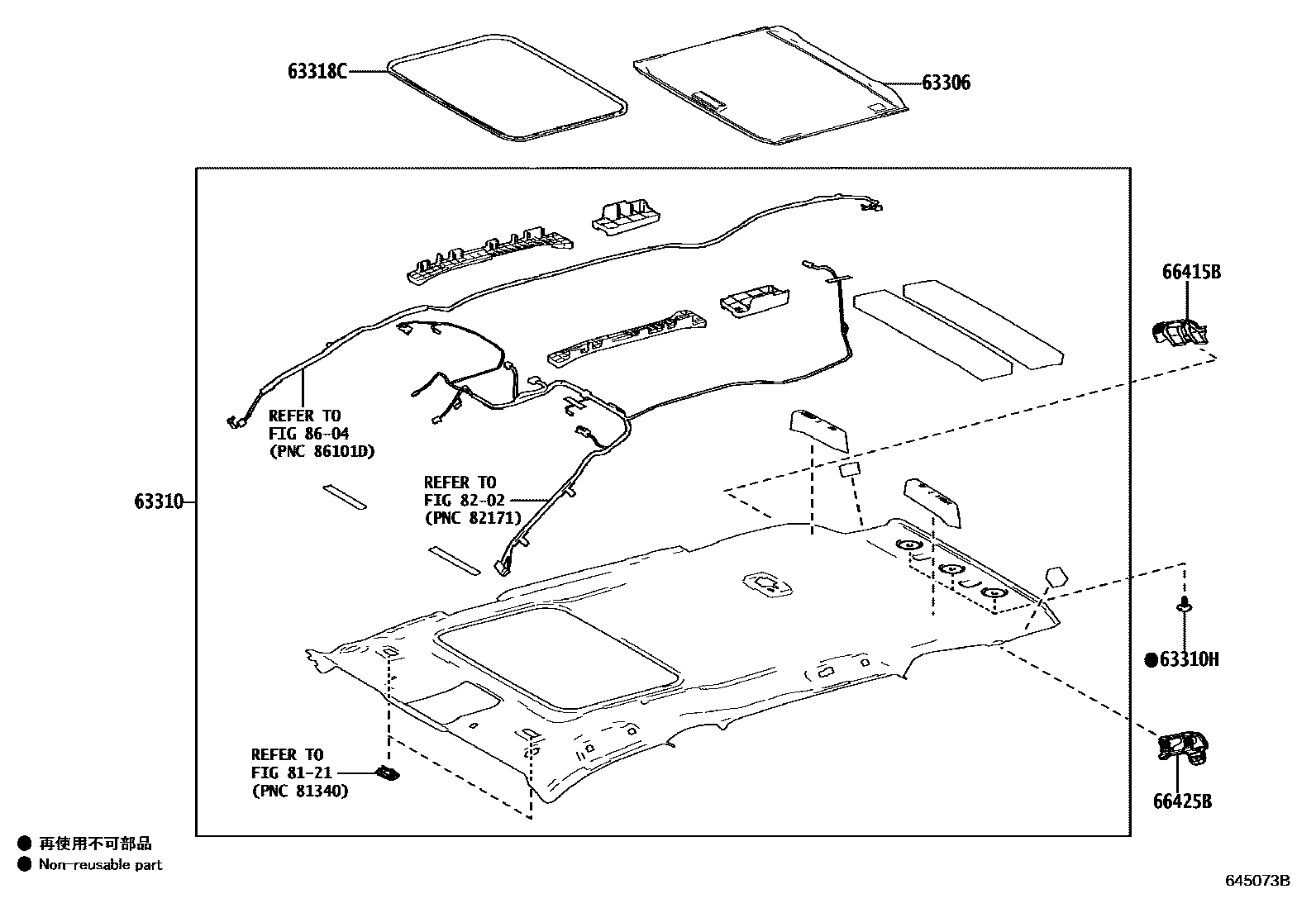

ROOF HEADLINING & SILENCER PAD

0001 1MOON ROOF 0002 1PANORAMA ROOF

63306TRIM SUB-ASSY, SUNSHADE

main63306-0R100-B0iAXAP5#202304

LT. GRAY,TRIM2#

main63306-0R110-B0iAXAP5#..M202105-202203

LT. GRAY,TRIM2#

main63306-0R140-B0iAXAP5#..M202204-202304

LT.GRAY,TRIM2#

63310HEADLINING ASSY, ROOF

main63310-0R390-B0iAXAP54..A202105

LT. GRAY,TRIM2#

main63310-0R380-B0supersedes 63310-0R610-B0iAXAP5#..M202105-202304

ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#

main63310-0R600-B0supersedes 63310-0R610-B0iAXAP5#..M202304

ETC-WITH,LT. GRAY,TRIM2#

main63310-0R620-B0supersedes 63310-0R630-B0iAXAP54..G202304

ETC-WITH,LT. GRAY,TRIM2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-C0016-B1×3iAXAP5#..M202105-202304

LT.GRAY,TRIM2#

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-0R080-B0iAXAP5#..M202105-202304

ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#; LT. GRAY,TRIM2#

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-0R090iAXAP5#..M202105-202304

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-0R090iAXAP5#..M202105-202304

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

8604ANTENNA

→ Go to FIG 86-04

9 parts on this diagram · 2 diagrams in section
