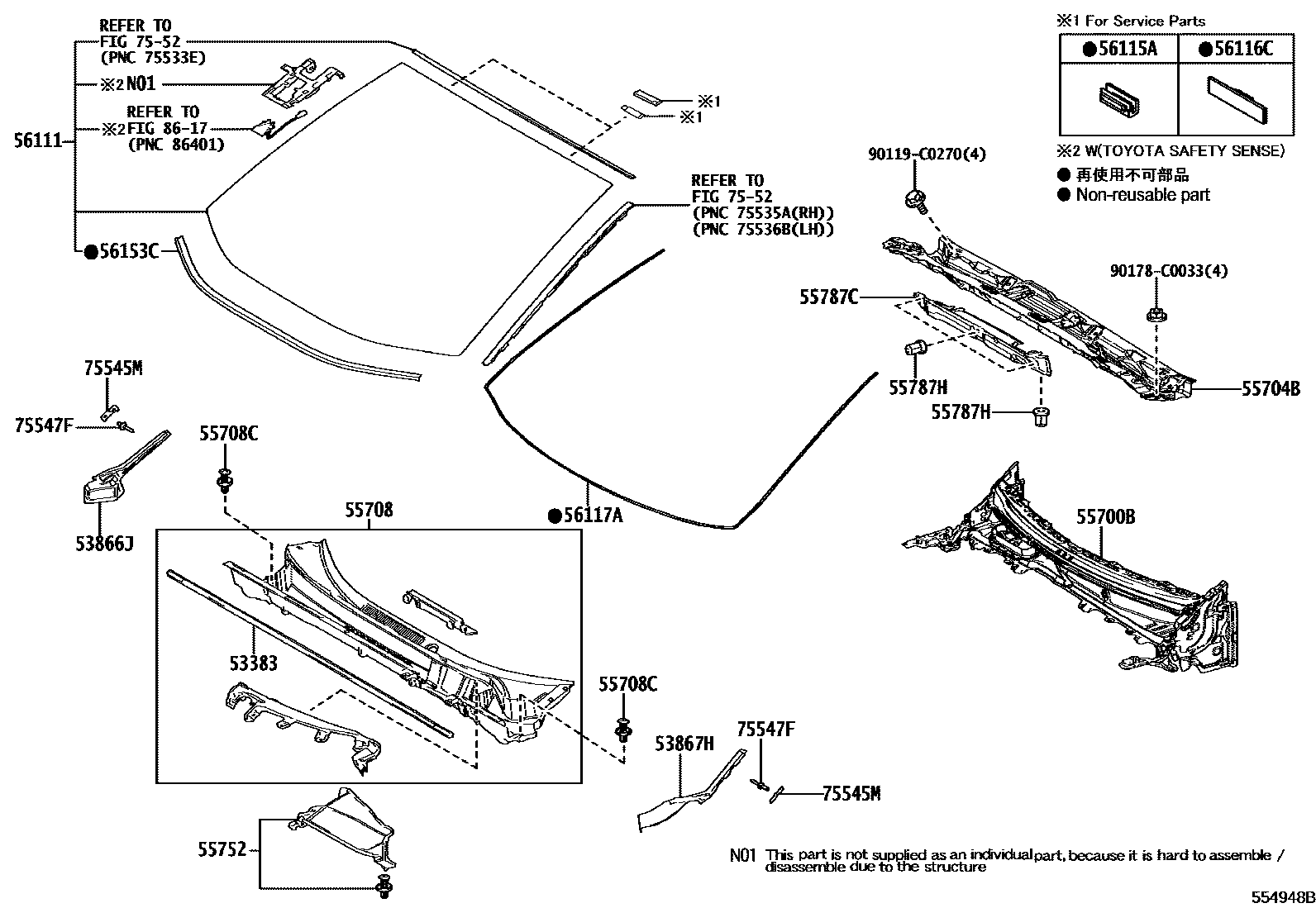

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55704BPANEL SUB-ASSY, COWL VENTILATOR
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
(J)
(L)
55752SHIELD, COWL VENTILATOR SPLASH
55787CINSULATOR, COWL TOP PANEL, NO.1
55787HCLIP, COWL TOP PANEL INSULATOR
(J)
(L)
56111GLASS, WINDSHIELD
ACTIVE SAFETY PACKAGE-WITHOUT
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=2917
56153CMOULDING, FRONT WINDOW, INNER CENTER
7552MOULDING
75545MCLIP, WINDSHIELD OUTSIDE MOULDING
75547FCLIP, WINDSHIELD OUTSIDE MOULDING
(J)
(L)
8617PRE-COLLISION SYSTEM
90119C0270
main90119-C0270
90178C0033
main90178-C0033
21 parts on this diagram · 1 diagram in section
