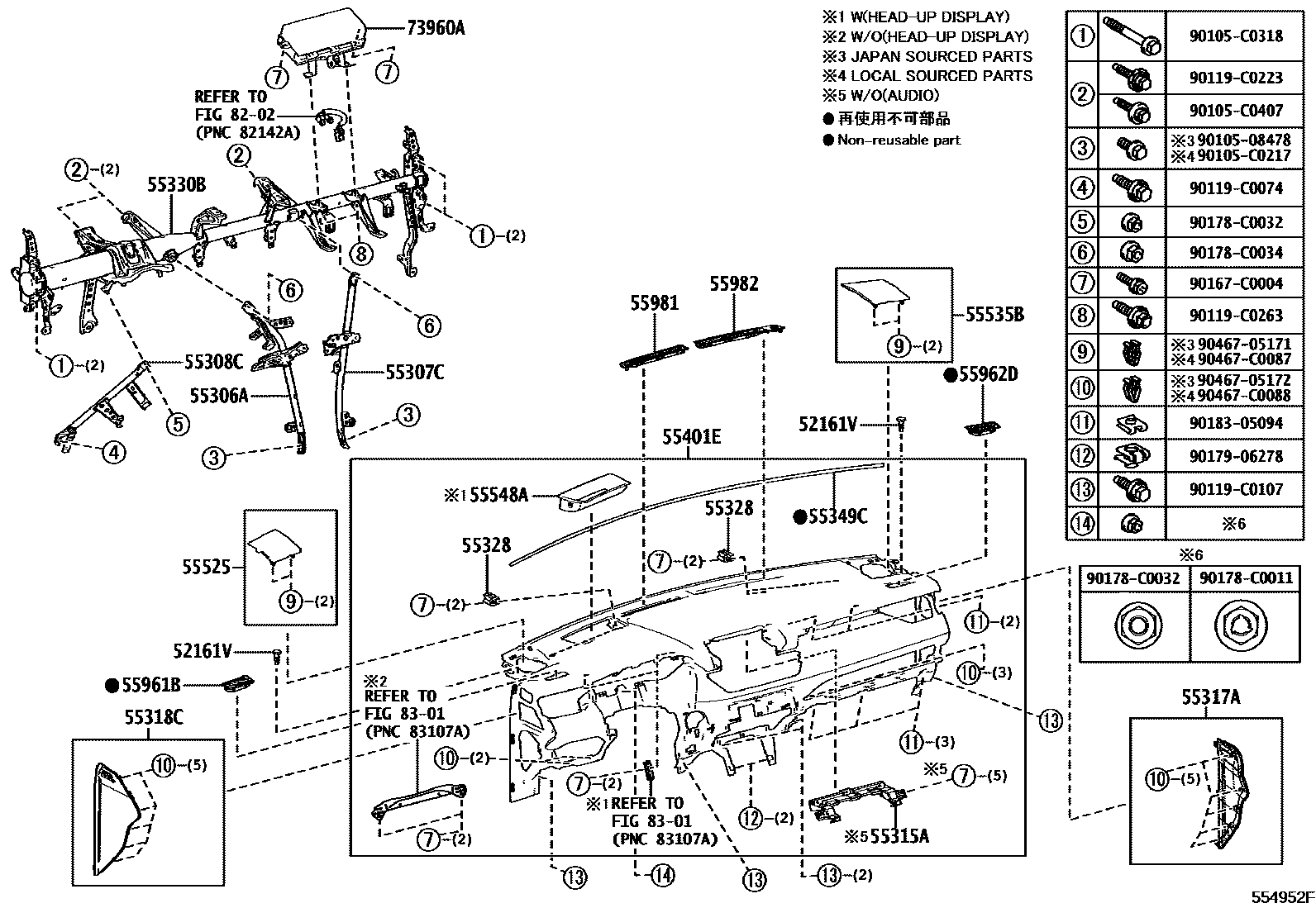

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02040×2iAXAP5#202304

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0R090iAXAP5#..M202105-202304

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0R060iAXAP5#..M202105-202304

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0R030iAXAP5#..M202105-202304

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-42070iAXAP5#..M202105-202304

55317APANEL, INSTRUMENT SIDE, RH

main55317-0R070-C0iAXAP5#..M202105-202304

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0R040-C0iAXAP5#..M202105-202304

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E100×4iAXAP5#202105-202110

main55328-12430×4iAXAP5#202304

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0R160iAXAP5#..M202105-202304

55349CCUSHION, INSTRUMENT PANEL

main55349-0R050iAXAP5#..M202105-202304

main55349-0R040supersedes 55349-0R050iAXAP54..A202105-202110

AUDIO-AVN(AVN GRILL COLOR:GUN BLACK)

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0R151-C0iAXAP5#202304

BLACK/SOFT BLACK/RED,TRIM2#

main55401-0R090-C7supersedes 55401-0R111-C5iAXAP5#..M202105-202110

AUDIO-AVN(AVN GRILL COLOR:SILVER),BLACK/SOFT BLACK/RED,TRIM2#

main55401-0R091-C7supersedes 55401-0R111-C5iAXAP5#..M202110-202304

AUDIO-AVN(AVN GRILL COLOR:SILVER),BLACK/SOFT BLACK/RED,TRIM2#

main55401-0R150-C0supersedes 55401-0R161-C0iAXAP54..A202105-202110

AUDIO-AVN(AVN GRILL COLOR:GUN BLACK),BLACK/SOFT BLACK/RED,TRIM2#

55525COVER, SPEAKER HOLE, NO.1

main55525-0R090-C1iAXAP5#202304

BLACK,TRIM2#

55535BCOVER, SPEAKER HOLE, NO.2

main55535-0R090-C1iAXAP5#..M202105-202304

BLACK,TRIM2#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-0R040-C1iAXAP5#..M202105-202304

BLACK,TRIM2#

55961BNOZZLE, SIDE DEFROSTER, NO.1

main55961-0R030-C1iAXAP5#..M202105-202304

BLACK,TRIM2#

55962DNOZZLE, SIDE DEFROSTER, NO.2

main55962-0R030-C1iAXAP5#..M202105-202304

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-0R030-C1iAXAP5#..M202105-202304

BLACK,TRIM2#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-0R030-C1iAXAP5#..M202105-202304

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0R081iAXAP5#..M202105-202304

main73960-0R082iAXAP5#202304

8202WIRING & CLAMP

→ Go to FIG 82-02

8301METER

→ Go to FIG 83-01

9010508478

main90105-08478

90105C0217

main90105-C0217

90105C0318

main90105-C0318

90105C0407

main90105-C0407

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0223

main90119-C0223

90119C0263

main90119-C0263

90167C0004

main90167-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

90467C0087

main90467-C0087

90467C0088

main90467-C0088

39 parts on this diagram · 4 diagrams in section
