REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iAXAP54..A202105

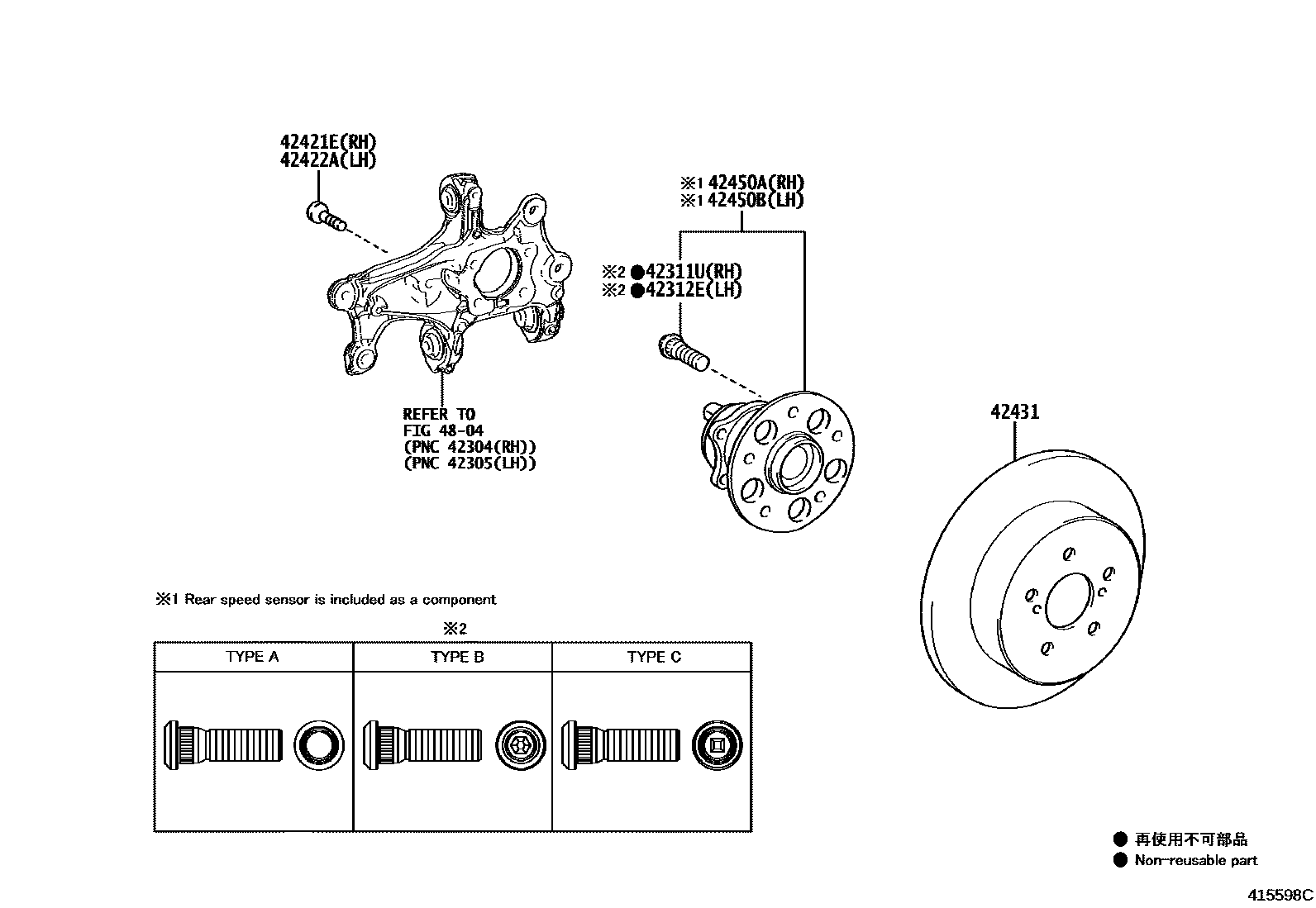

TYPE A:REFER ILLUST.

main90942-02081×5iAXAP5#..M202105-202304

TYPE B:REFER ILLUST.

main90942-02082×5iAXAP54..A202105

TYPE C:REFER ILLUST.

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iAXAP5#202304

TYPE A:REFER ILLUST.

main90942-02081×5iAXAP5#202304

TYPE B:REFER ILLUST.

main90942-02082×5iAXAP54..A202105

TYPE C:REFER ILLUST.

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-C0009×4iAXAP5#..M202105-202304

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-C0009×4iAXAP5#..M202105-202304

42431DISC, REAR

main42431-0R040×2iAXAP5#..M202105-202304

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0R060iAXAP54..A202105

main42450-0R040iAXAP52202105-202304

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0R060iAXAP54202304

main42450-0R040iAXAP52202304

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04
