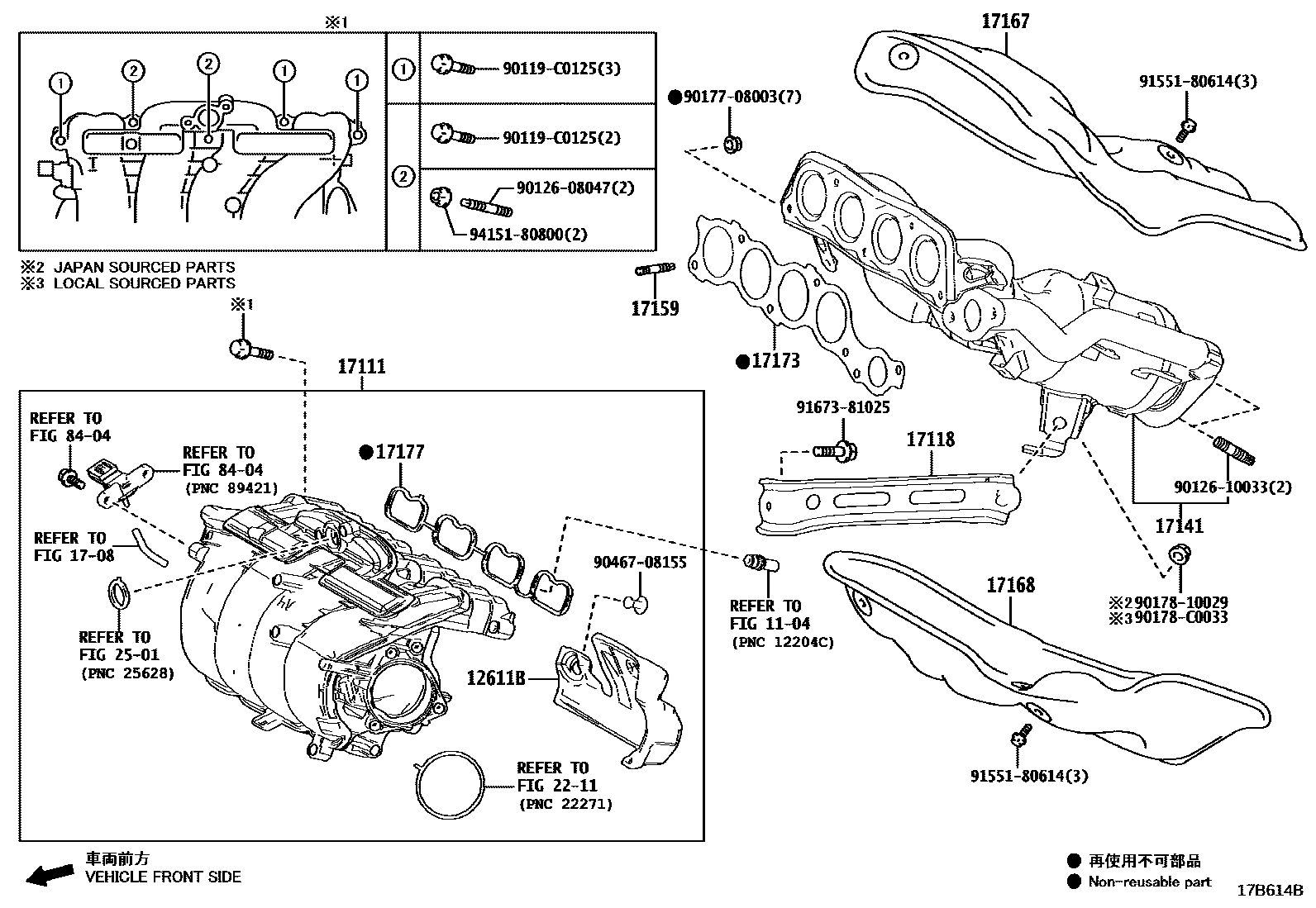

MANIFOLD

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

12611BCOVER, ENGINE, NO.1

main12613-F0030202105-202304

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17120-F0080202105-202304

17118STAY, MANIFOLD

main17118-25030202105-202304

main17118-F0080202105-202304

17141MANIFOLD, EXHAUST

main17141-F0090202105-202304

main17141-F0210202304-202405

main17141-F0430202405

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-C0010202105-202304

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-F0020202105-202304

main17167-F0030202304

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-F0020202105-202304

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-25020202105-202304

main17173-F0020202105-202304

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-25010202105-202304

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

90119C0125

main90119-C0125

9012608047

main90126-08047

9012610033

main90126-10033

9017708003

main90177-08003

9017810029

main90178-10029

90178C0033

main90178-C0033

9046708155

main90467-08155

9155180614

main91551-80614

9167381025

main91673-81025

9415180800

main94151-80800

24 parts on this diagram · 2 diagrams in section
