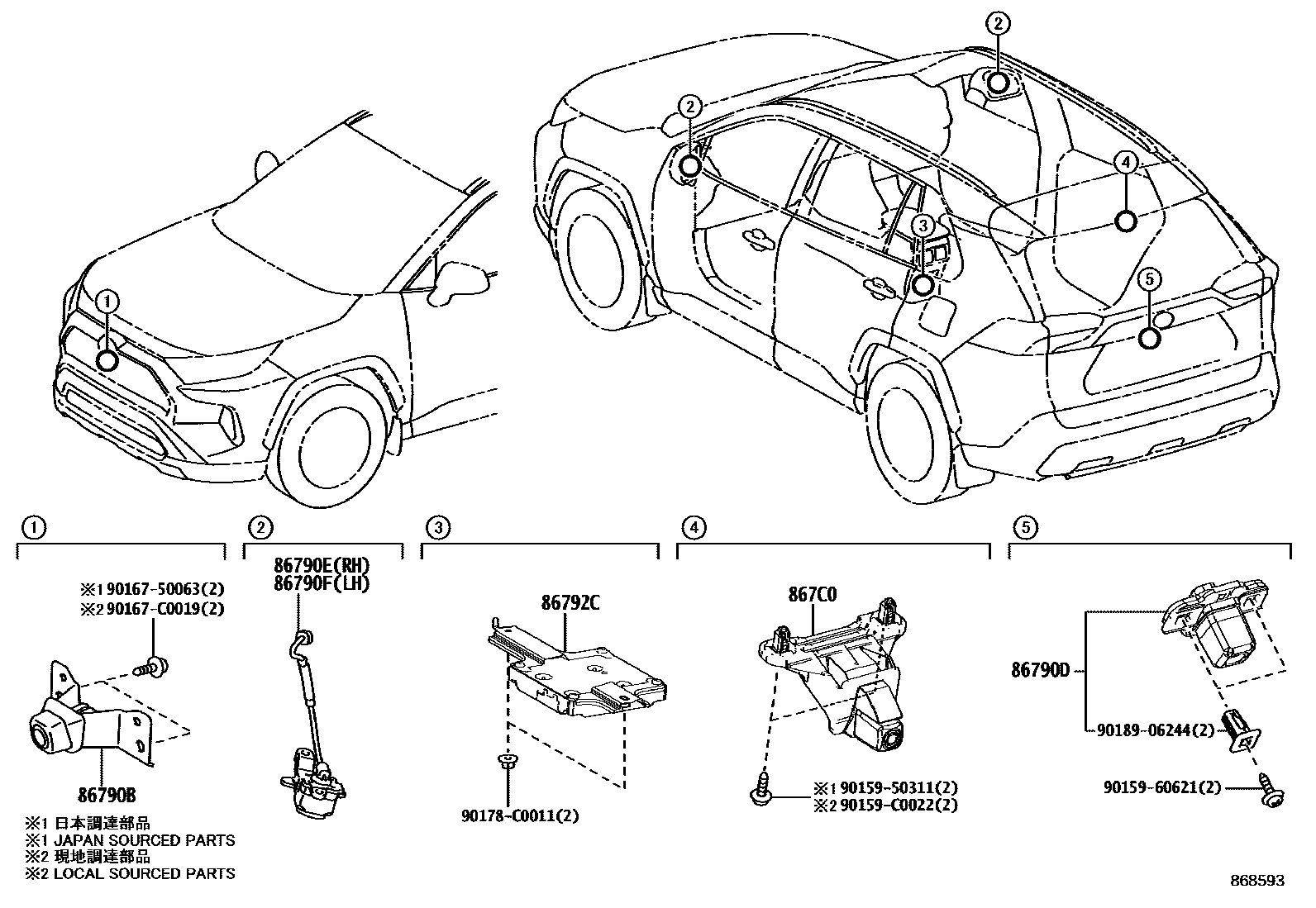

CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

main86790-0R200iAXAP5#..G,M202104-202304

main86790-0R540iAXAP5#..G,M202304

86790DCAMERA ASSY, TELEVISION, RR

main86790-0R230iAXAP5#..G,M202104-202304

main86790-0R480iAXAP5#..G,M202304

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0E250iAXAP5#..G,M202104-202304

main86790-0R500iAXAP5#..G,M202304

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0E240iAXAP5#..G,M202104-202304

main86790-0R490iAXAP5#..G,M202304

86792CCOMPUTER, PARKING ASSIST

main86792-0R060iAXAP5#..G,M202104-202112

main86792-0R061iAXAP5#..G,M202201-202304

main86792-0R140iAXAP5#..G,M202409

main86792-0R150iAXAP5#..G,M202304-202409

867C0CAMERA ASSY, INNER MIRROR

main867C0-0R010iAXAP54..G202104-202304

9015950311

main90159-50311

9015960621

main90159-60621

90159C0022

main90159-C0022

9016750063

main90167-50063

90167C0019

main90167-C0019

90178C0011

main90178-C0011

9018906244

main90189-06244

13 parts on this diagram · 1 diagram in section
