TIRE PRESSURE WARNING SYSTEM

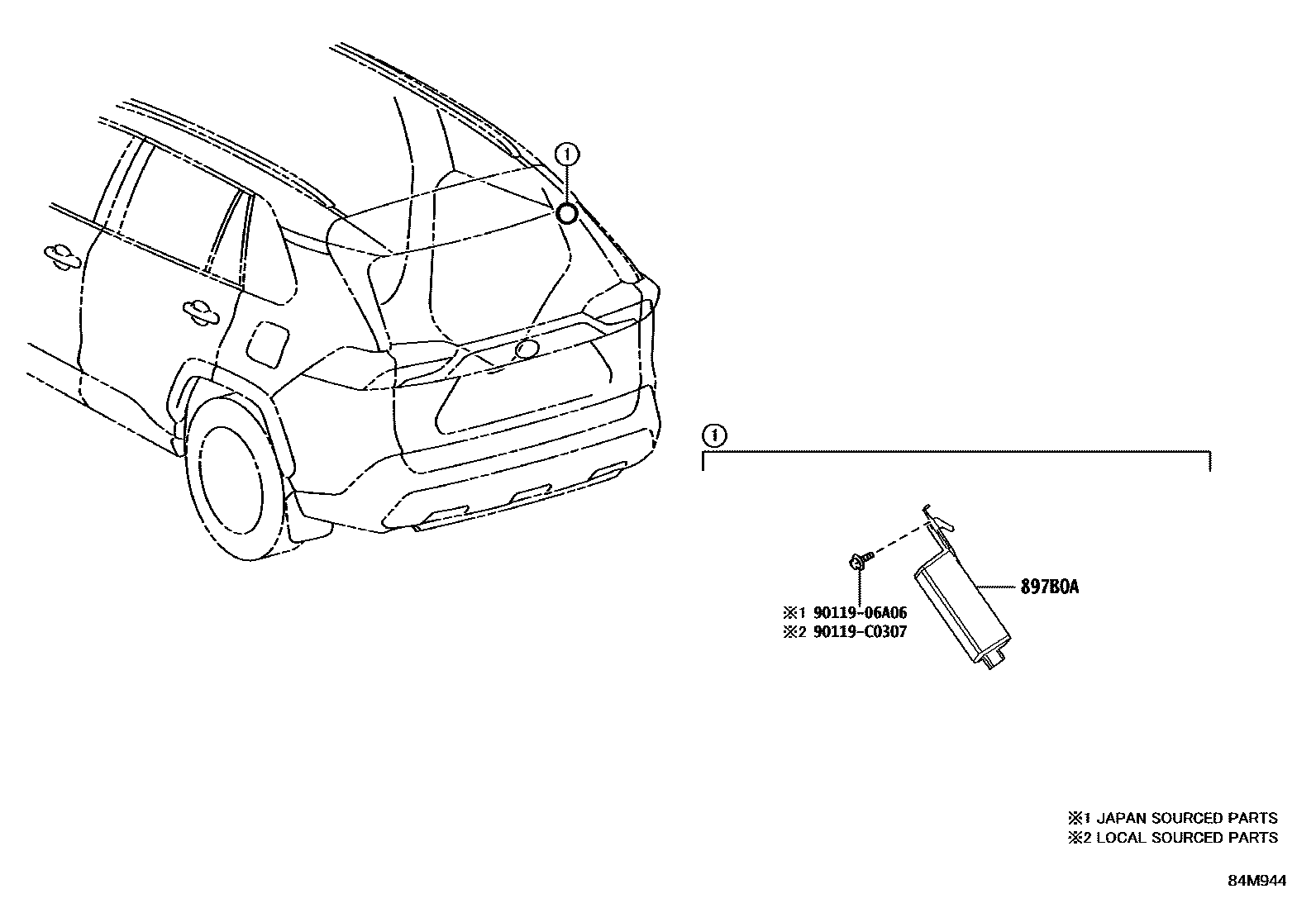

Parts diagram

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-0R070i202104-202304

main897B0-0R071i202304-202409

main897B0-0R170i202409

9011906A06

main90119-06A06

90119C0307

main90119-C0307

3 parts on this diagram · 1 diagram in section
