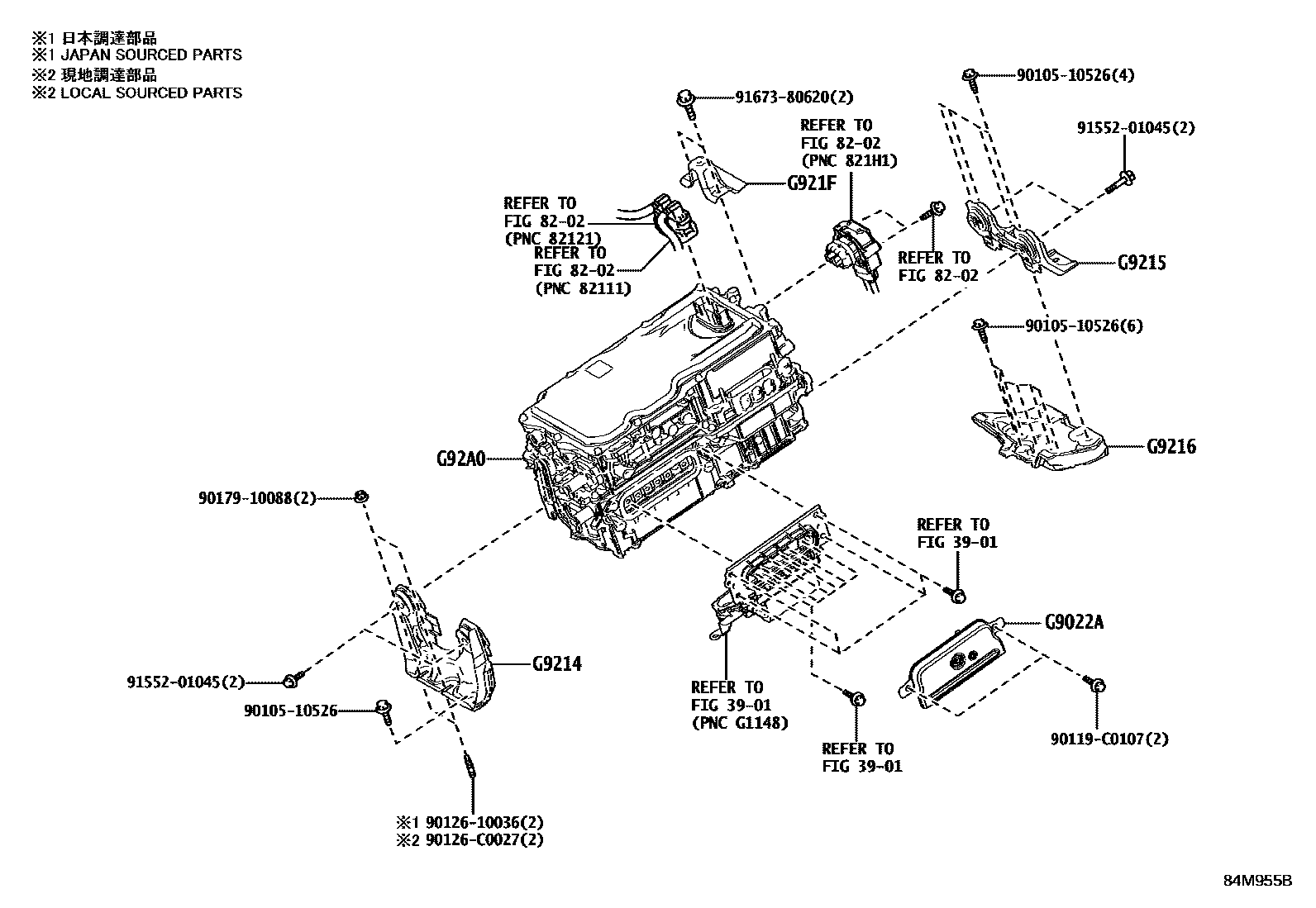

HEV INVERTER

0001 1 0002 1 0003 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAXAP5#202104-202304

G9214BRACKET, INVERTER, NO.1

mainG921442010iAXAP5#202104-202304

G9215BRACKET, INVERTER, NO.2

mainG921542020iAXAP5#202104-202304

G9216BRACKET, INVERTER, NO.3

mainG92160R020iAXAP5#202304

G921FPROTECTOR, INVERTER, NO.2

mainG921F42010iAXAP5#202304

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A042110iAXAP54202104-202108

mainG92A042111iAXAP54202109-202206

mainG92A042112iAXAP54202207-202304

mainG92A042113iAXAP54202308-202506

mainG92A042120iAXAP52202104-202108

mainG92A042121iAXAP52202109-202206

mainG92A042122iAXAP52202207-202304

mainG92A042123iAXAP52202308

9010510526

main90105-10526

90119C0107

main90119-C0107

9012610036

main90126-10036

90126C0027

main90126-C0027

9017910088

main90179-10088

9155201045

main91552-01045

9167380620

main91673-80620

15 parts on this diagram · 3 diagrams in section
