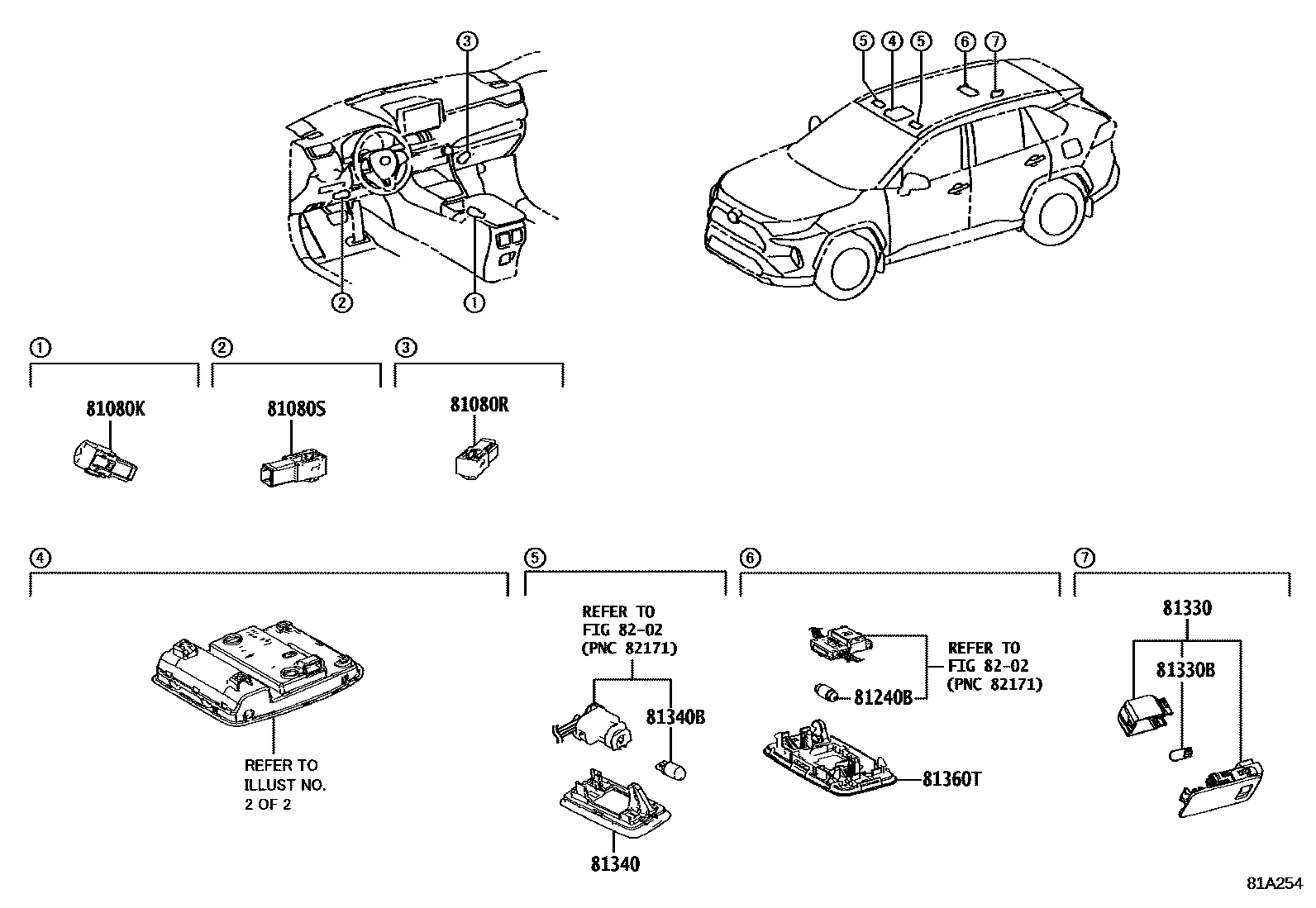

INTERIOR LAMP

0001 1 0002 1 0003 1 0004 1

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-42040iAXAP54..G202104-202304

81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-33280iAXAP54..G202104-202304

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-33280iAXAP54..G202104-202304

81240BBULB, ROOM LAMP, NO.1

main90981-14011iAXAP5#202104-202304

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0R010iAXAP5#202304

main81330-58010iAXAP5#202104-202304

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAXAP5#202104-202304

12V 5W

81340LAMP ASSY, VANITY

main81340-0P010×2iAXAP5#202104-202304

main81340-33170×2iAXAP5#202304

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iAXAP5#202104-202304

12V 8W

81360TLAMP ASSY, SPOT

main81240-0E020-B0iAXAP5#202308

LT.GRAY,TRIM2#,MARK 19021ROL

main81240-0E030-B0iAXAP5#202304-202308

LT.GRAY,TRIM2#

main81360-42021-B0iAXAP5#202104-202304

LT.GRAY,TRIM2#

8202WIRING & CLAMP

→ Go to FIG 82-02

10 parts on this diagram · 4 diagrams in section
