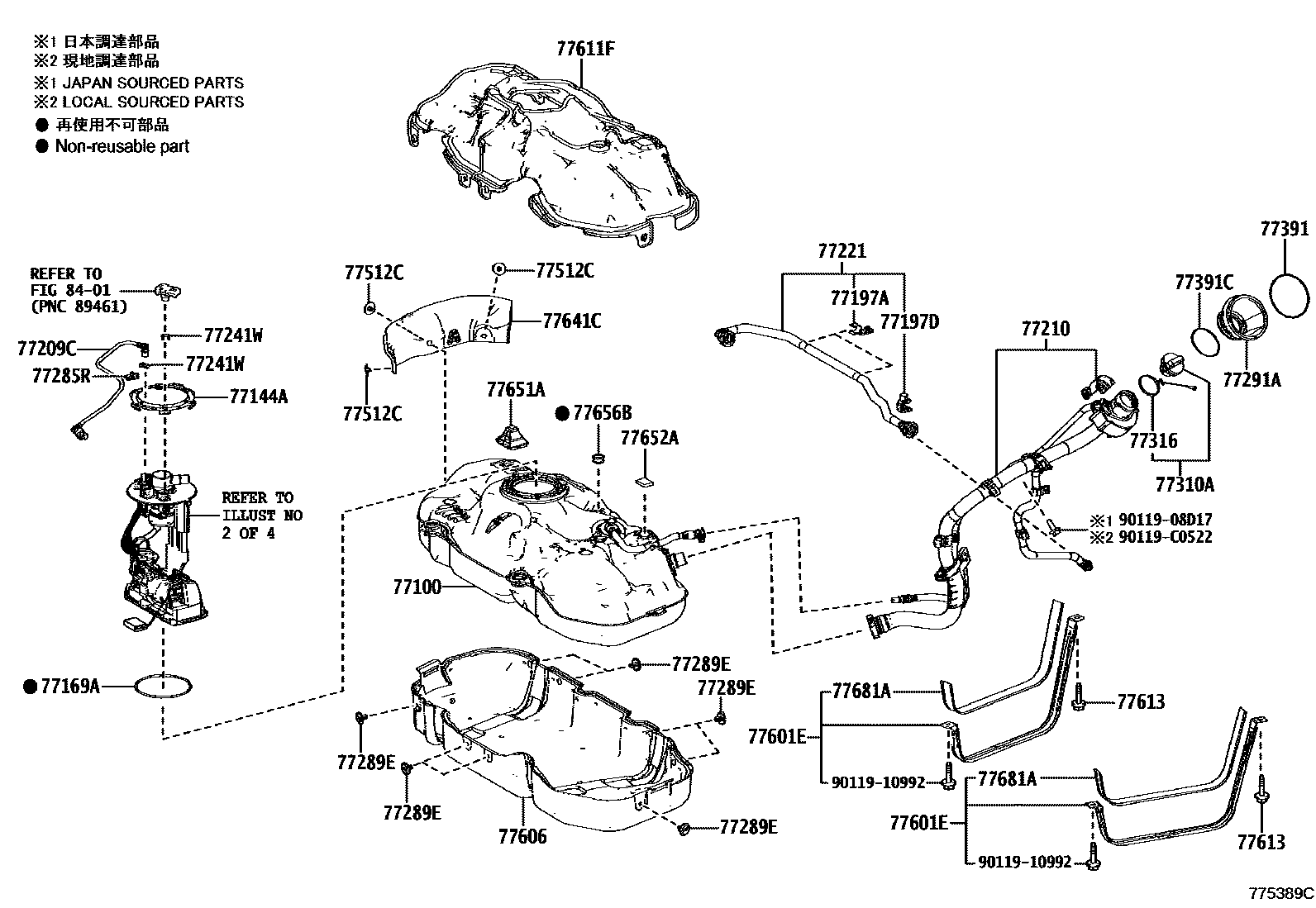

FUEL TANK & TUBE
77100TANK ASSY, FUEL
77144ARETAINER, FUEL PUMP GAUGE
(L)
(J)
77169AGASKET, FUEL SUCTION TUBE SET
(L),KAUTEX
(J)
(L)
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77197DCLAMP, EVAPORATION VENT TUBE, NO.2
(L)
(J)
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77221TUBE, FUEL TANK BREATHER, NO.1
77241WCLIP, TUBE JOINT
77285RCLAMP, FUEL TUBE, NO.1
(J)
(L)
77289ECLAMP, FUEL TANK, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391CRING, UREA INLET BOX
77512CBRACKET, FUEL TANK
(L)
(J)
77601EBAND SUB-ASSY, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611FCOVER, FUEL TANK, UPPER
77613BOLT, FUEL TANK BAND SET
77641CPROTECTOR ASSY, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77656BCUSHION, FUEL TANK, NO.6
(L)
(J)
77681ASEAT, FUEL TANK BAND
8401SWITCH & RELAY & COMPUTER
9011908D17
main90119-08D17
9011910992
main90119-10992
90119C0522
main90119-C0522
30 parts on this diagram · 4 diagrams in section
