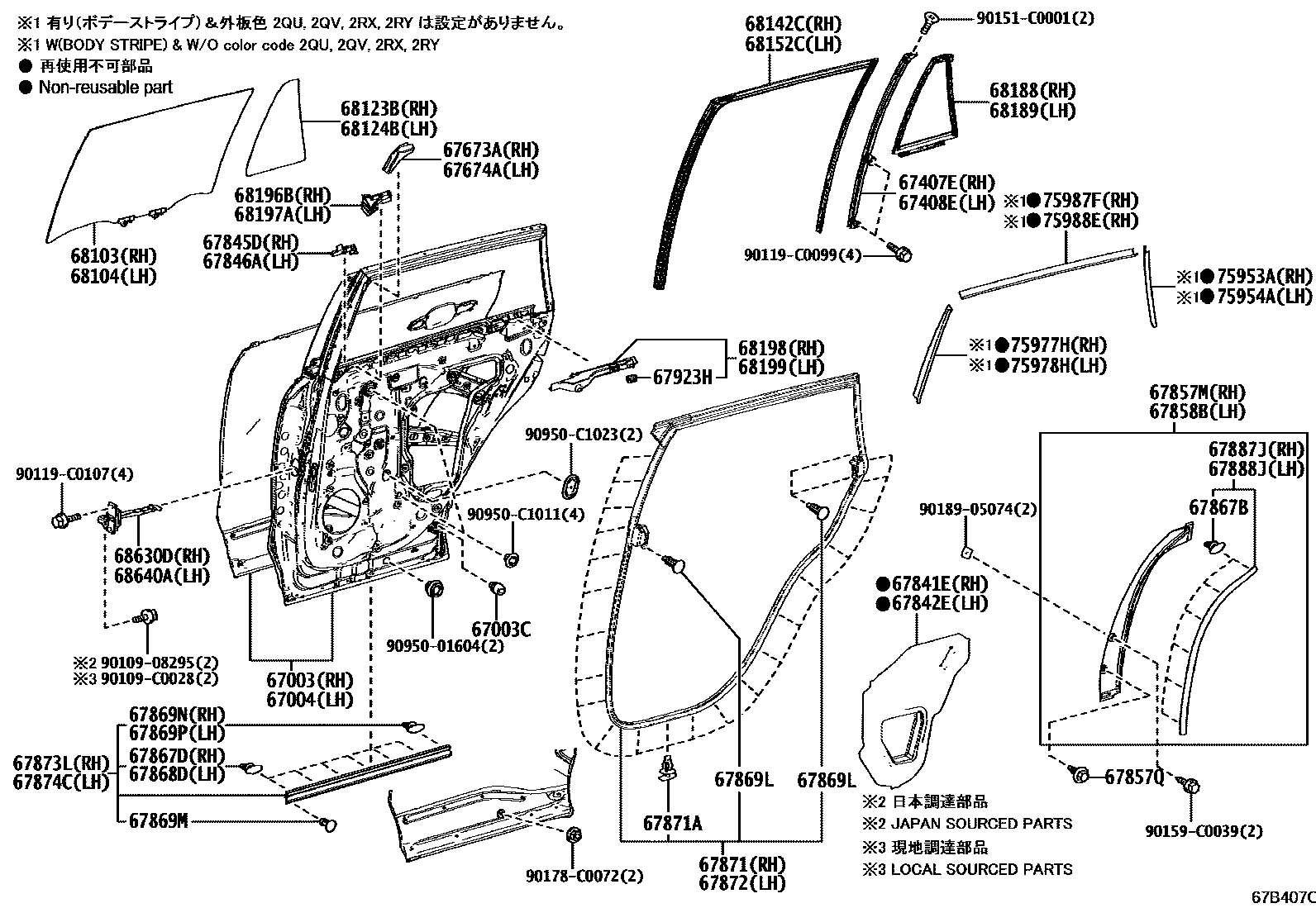

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0R130iAXAP5#202104-202205

main67003-0R131iAXAP5#202205-202304

67003CCUSHION, REAR DOOR PANEL

main90541-09137×2iAXAP5#202304

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0R130iAXAP5#202104-202205

main67004-0R131iAXAP5#202205-202304

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0R060iAXAP5#202104-202304

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0R060iAXAP5#202304

67673AGARNISH, REAR DOOR FRAME, RH

main67673-0R030iAXAP5#202104-202304

67674AGARNISH, REAR DOOR FRAME, LH

main67674-0R030iAXAP5#202104-202304

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0R070iAXAP5#202104-202304

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0R070iAXAP5#202304

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-0R020iAXAP5#202104-202304

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-0R020iAXAP5#202104-202304

67857MPROTECTOR, REAR DOOR PANEL, RH

main67857-0R070iAXAP5#202104-202304

67857QCLIP, REAR DOOR PANEL PROTECTOR

main90467-06165-C3×2iAXAP5#202104-202209

BLACK

main90467-C0047-C0×2iAXAP5#202209-202304

BLACK

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0R040iAXAP5#202104-202304

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main53145-60030×12iAXAP5#202104-202304

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×6iAXAP5#202104-202304

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×6iAXAP5#202104-202304

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-26050×6iAXAP5#202104-202304

67869MCLIP, DOOR WEATHERSTRIP

main67869-26050×2iAXAP5#202104-202304

67869NCLIP, REAR DOOR WEATHERSTRIP, RH

main53145-02040iAXAP5#202104-202304

67869PCLIP, REAR DOOR WEATHERSTRIP, LH

main53145-02040iAXAP5#202104-202304

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0R080iAXAP5#202104-202304

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-0D070×3iAXAP5#202311

(L),WHITE

main67867-0D090×11iAXAP5#202311

(L),BLUE

main67867-12150×8iAXAP5#202311

(J),PINK,(J),BLUE; (J),RED; (J),WHITE

main67868-0D030×11iAXAP5#202311

(L),PINK

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0R060iAXAP5#202104-202304

67873LWEATHERSTRIP, REAR DOOR, NO.5 RH

main67873-0R041iAXAP5#202104-202304

67874CWEATHERSTRIP, REAR DOOR, NO.5 LH

main67874-0R041iAXAP5#202104-202304

67887JWEATHERSTRIP, ACCESS PANEL, NO.2 RH

main67887-0R020iAXAP5#202104-202304

67888JWEATHERSTRIP, ACCESS PANEL, NO.2 LH

main67888-0R020iAXAP5#202104-202304

67923HRETAINER, DOOR CORNER SEAL

main67923-0R030×2iAXAP5#202104-202304

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0R110iAXAP5#202104-202304

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0R110iAXAP5#202104-202304

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0R110iAXAP5#202104-202304

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0R110iAXAP5#202104-202304

68142CRUN, REAR DOOR GLASS, RH

main68142-0R060iAXAP5#202104-202205

main68142-0R061iAXAP5#202205-202304

68152CRUN, REAR DOOR GLASS, LH

main68152-0R060iAXAP5#202104-202205

main68152-0R061iAXAP5#202205-202304

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0R070iAXAP5#202104-202304

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0R060iAXAP5#202104-202304

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-0R020iAXAP5#202104-202304

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-0R020iAXAP5#202104-202304

68198SEAL, REAR DOOR BELT, REAR RH

main68198-0R020iAXAP5#202104-202304

68199SEAL, REAR DOOR BELT, REAR LH

main68199-0R020iAXAP5#202104-202304

68630DCHECK ASSY, REAR DOOR, RH

main68630-0R070iAXAP5#202104-202109

main68630-0R071iAXAP5#202110-202304

68640ACHECK ASSY, REAR DOOR, LH

main68630-0R070iAXAP5#202104-202109

main68630-0R071iAXAP5#202110-202304

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-0R020iAXAP54..G202104-202304

BODY COLOR-TWO-TONE

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-0R020iAXAP54..G202104-202304

BODY COLOR-TWO-TONE

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-0R060iAXAP54..G202104-202304

BODY COLOR-TWO-TONE

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-0R060iAXAP54..G202104-202304

BODY COLOR-TWO-TONE

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-0R080iAXAP54..G202104-202304

BODY COLOR-TWO-TONE

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-0R080iAXAP54..G202104-202304

BODY COLOR-TWO-TONE

9010908295

main90109-08295

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

90159C0039

main90159-C0039

90178C0072

main90178-C0072

9018905074

main90189-05074

9095001604

main90950-01604

90950C1011

main90950-C1011

90950C1023

main90950-C1023

60 parts on this diagram · 2 diagrams in section
