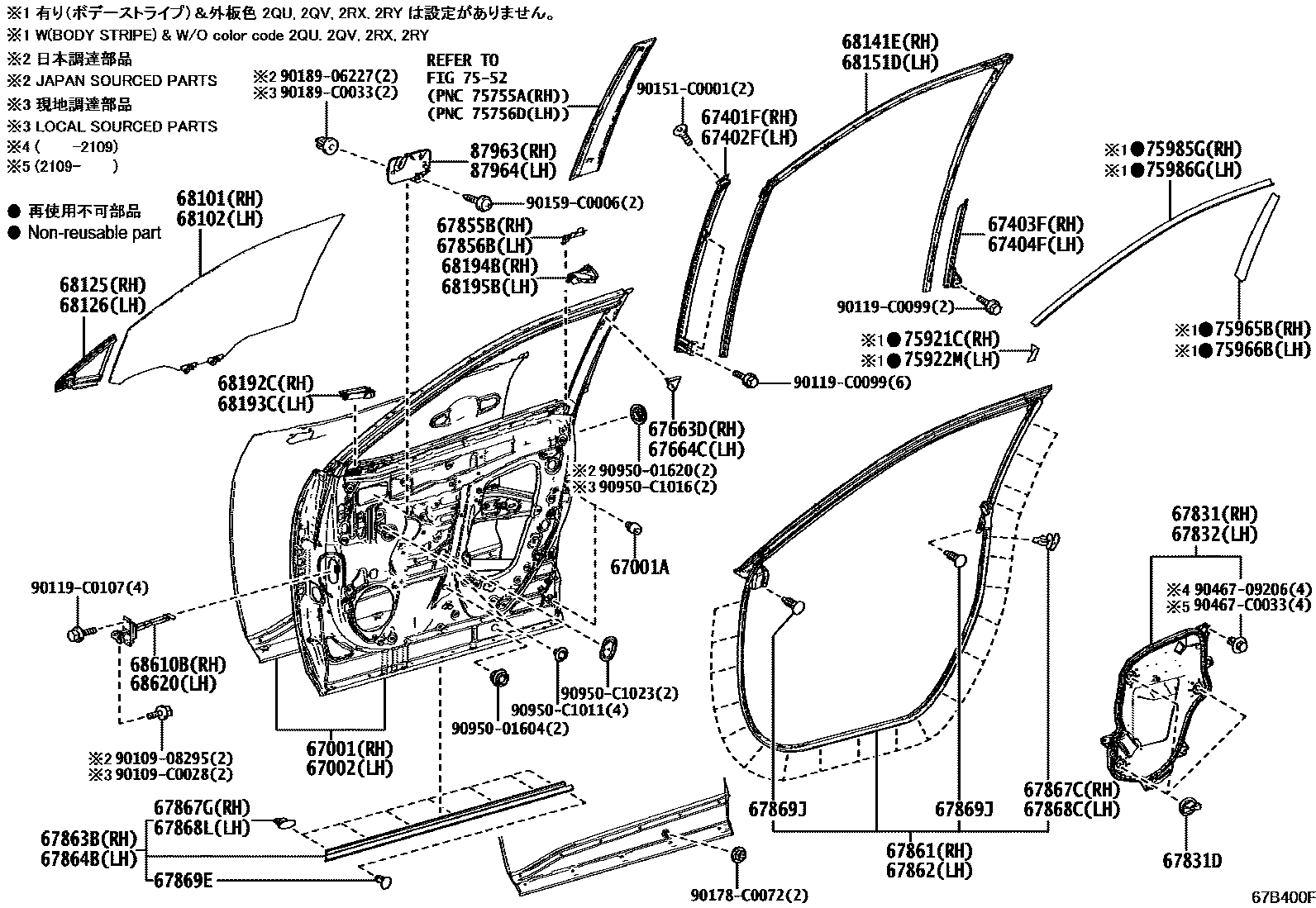

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0R100i202304

67001ACUSHION, FRONT DOOR PANEL

main90541-09137×4i202104-202304

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0R120i202104-202304

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0R020i202104-202304

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0R020i202104-202304

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0R060i202104-202304

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0R060i202304

67663DGARNISH, DOOR FRAME, RH

main67663-0R040i202304

67664CGARNISH, DOOR FRAME, LH

main67664-0R040i202304

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0R070i202304

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-F4020×6i202104-202304

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0R070i202104-202304

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-0R020i202104-202304

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-0R020i202104-202304

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0R060i202104-202304

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0R060i202304

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-0R051i202104-202304

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-0R041i202104-202304

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0D070×2i202311

(L),WHITE

main67867-12150×19i202304

YELLOW

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×7i202104-202304

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-0D070×2i202311

(L),WHITE

main67867-12150×2i202311

(J),GREEN; (J),WHITE

main67868-0D040×19i202311

(L),GREEN

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×7i202104-202304

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-26050×2i202104-202304

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050×4i202104-202304

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0R210i202104-202304

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0R210i202104-202304

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0R080i202104-202304

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0R080i202104-202304

68141ERUN, FRONT DOOR GLASS, RH

main68141-0R070i202104-202106

main68141-0R071i202107-202304

68151DRUN, FRONT DOOR GLASS, LH

main68151-0R070i202104-202106

main68151-0R071i202107-202304

68192CSEAL, FRONT DOOR BELT, FRONT RH

main68192-0R020i202104-202304

68193CSEAL, FRONT DOOR BELT, FRONT LH

main68193-0R020i202104-202304

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-0R020i202104-202304

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-0R020i202104-202304

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0R070i202104-202109

main68610-0R071i202110-202304

68620CHECK ASSY, FRONT DOOR, LH

main68610-0R070i202104-202109

main68610-0R071i202110-202304

7552MOULDING

→ Go to FIG 75-52

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0R060i202104-202304

BODY COLOR-TWO-TONE

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0R060i202104-202304

BODY COLOR-TWO-TONE

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-0R020i202104-202304

BODY COLOR-TWO-TONE

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-0R020i202104-202304

BODY COLOR-TWO-TONE

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

main75985-0R020i202104-202304

BODY COLOR-TWO-TONE

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-0R020i202104-202304

BODY COLOR-TWO-TONE

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0R020i202104-202304

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0R020i202104-202304

9010908295

main90109-08295

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

90159C0006

main90159-C0006

90178C0072

main90178-C0072

9018906227

main90189-06227

90189C0033

main90189-C0033

9046709206

main90467-09206

90467C0033

main90467-C0033

9095001604

main90950-01604

9095001620

main90950-01620

90950C1011

main90950-C1011

90950C1016

main90950-C1016

90950C1023

main90950-C1023

61 parts on this diagram · 2 diagrams in section
