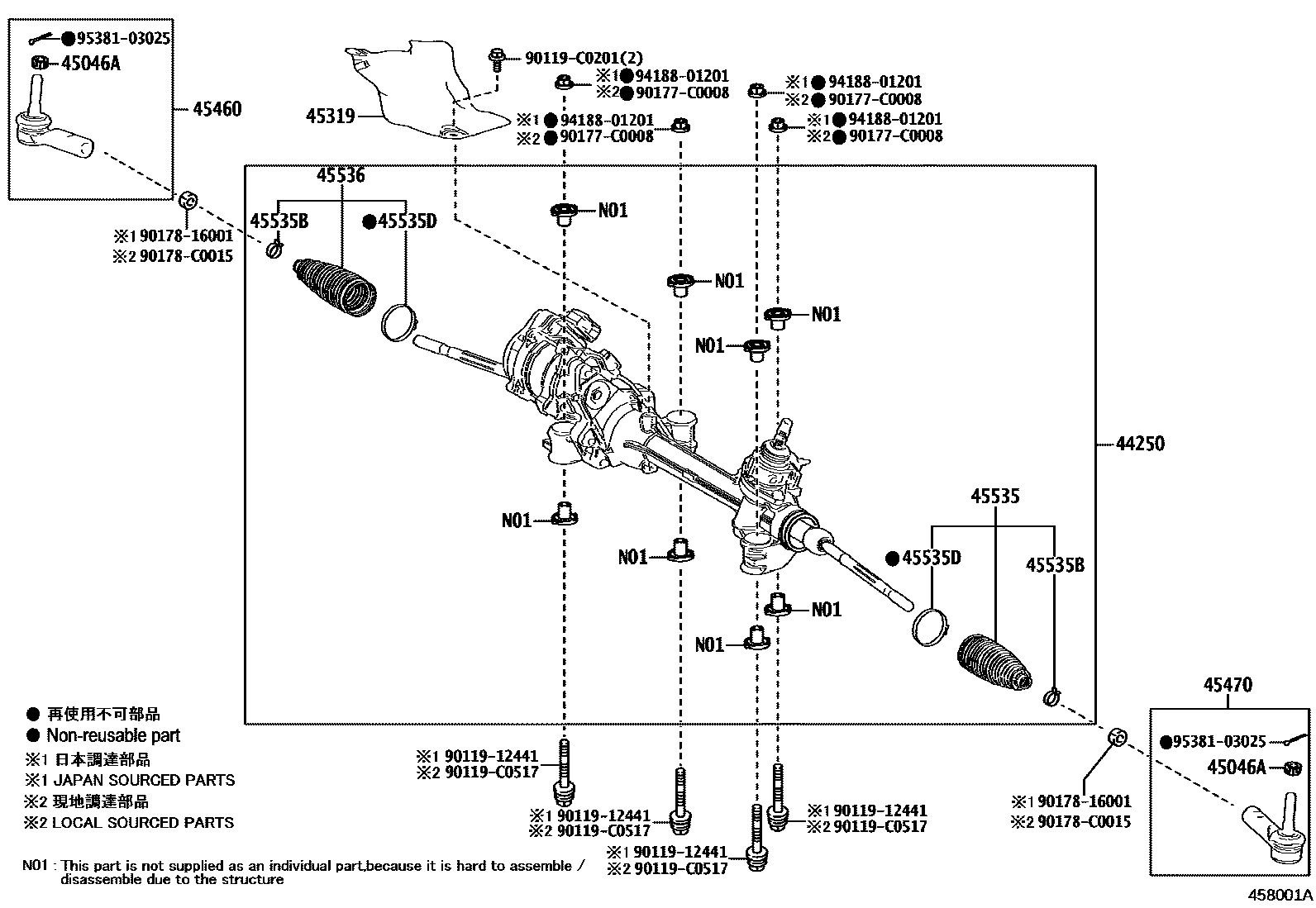

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0R070iAXAP5#..M,X202104-202304

*614

main44250-0R080iAXAP54..G202104-202304

*614

main44250-0R180iAXAP5#..M,X202304-202409

*614

main44250-0R190iAXAP54..G202304-202409

*614

main44250-0R220iAXAP54..G202409

*614

main44250-0R230iAXAP5#..M,X202409

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015×2iAXAP5#202104-202304

main90171-C0014×2iAXAP5#202304

(L)

45319INSULATOR, STEERING GEAR HEAT

main45319-0R020iAXAP5#202104-202304

45460ROD ASSY, TIE, RH

main45460-09340iAXAP5#202104-202304

45470ROD ASSY, TIE, LH

main45460-09340iAXAP5#202104-202304

45535BOOT, STEERING RACK, NO.1

main45535-09640iAXAP5#202104-202304

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030×2iAXAP5#202104-202304

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-06040×2iAXAP5#202104-202304

45536BOOT, STEERING RACK, NO.2

main45535-09640iAXAP5#202104-202304

9011912441

main90119-12441

90119C0201

main90119-C0201

90119C0517

main90119-C0517

90177C0008

main90177-C0008

9017816001

main90178-16001

90178C0015

main90178-C0015

9418801201

main94188-01201

9538103025

main95381-03025

17 parts on this diagram · 1 diagram in section
