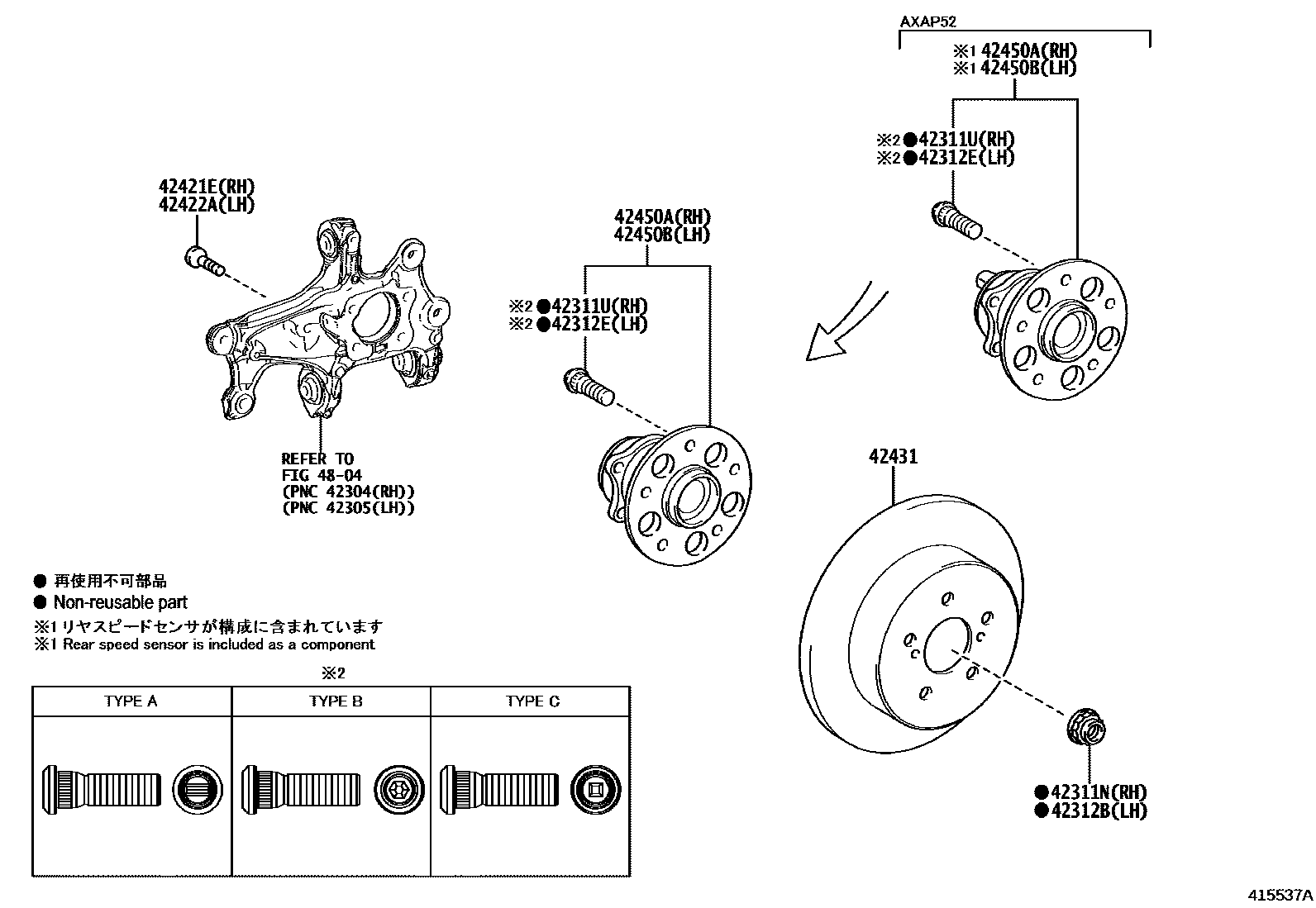

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iAXAP54202104-202304

(J)

main90177-C0004iAXAP54202104-202304

(L)

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iAXAP5#202104-202304

TYPE A:REFER ILLUST.

main90942-02081iAXAP5#202104-202304

TYPE B:REFER ILLUST.

main90942-02082iAXAP5#202104-202304

TYPE C:REFER ILLUST.

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iAXAP54202104-202304

(J)

main90177-C0004iAXAP54202104-202304

(L)

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iAXAP5#202104-202304

TYPE A:REFER ILLUST.

main90942-02081iAXAP5#202104-202304

TYPE B:REFER ILLUST.

main90942-02082iAXAP5#202104-202304

TYPE C:REFER ILLUST.

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-C0009iAXAP5#202104-202304

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-C0009iAXAP5#202104-202304

42431DISC, REAR

main42431-0R030iAXAP5#202104-202304

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-42070iAXAP54202104-202304

main42450-0R040iAXAP52202104-202304

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-42070iAXAP54202104-202304

main42450-0R040iAXAP52202104-202304

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04
