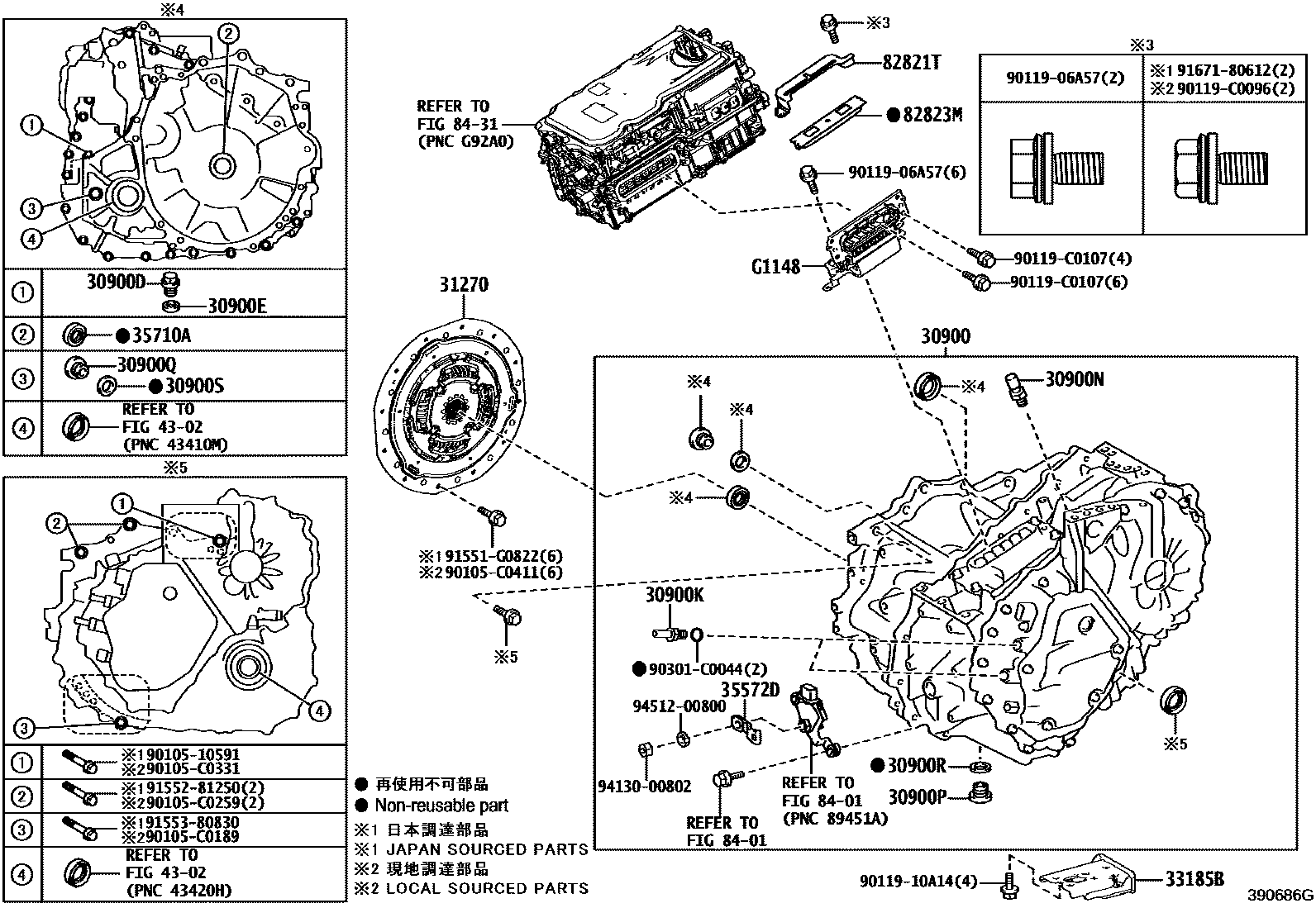

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1HYBRID VEHICLE TRANSAXLE ASSY0002 1RR TRACTION W/TRANSAXLE MOTOR

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-0R020iAXAP5#202104-202206

main30900-0R021iAXAP5#202304-202411

main30900-0R022iAXAP5#202412

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iAXAP5#202304

(J)

main90341-C0022iAXAP5#202212-202304

(L)

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAXAP5#202104-202304

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010×2iAXAP5#202104-202304

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03247iAXAP5#202104-202304

30900PPLUG, DRAIN(HEV)

main90341-18016iAXAP5#202304

30900QPLUG, FILLER(HEV)

main90341-18016iAXAP5#202304

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAXAP5#202104-202304

main90430-C0007iAXAP5#202308

(L)

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iAXAP5#202308

(J)

main90430-C0007iAXAP5#202308

(L)

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-0R010iAXAP5#202207-202304

main31270-0R020iAXAP5#202409

main31270-48040iAXAP5#202104-202207

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-0R020iAXAP5#202104-202304

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-33070iAXAP5#202104-202304

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-C0059iAXAP5#202104-202304

4302

82821TCOVER, CONNECTOR

main82821-47240iAXAP5#202304

82823MCAP, TERMINAL

main82823-47040iAXAP5#202304

8401

8431

G1148CABLE, MOTOR

mainG114848110iAXAP5#202104-202304

9010510591

main90105-10591

90105C0189

main90105-C0189

90105C0259

main90105-C0259

90105C0331

main90105-C0331

90105C0411

main90105-C0411

9011906A57

main90119-06A57

9011910A14

main90119-10A14

90119C0096

main90119-C0096

90119C0107

main90119-C0107

90301C0044

main90301-C0044

91551G0822

main91551-G0822

9155281250

main91552-81250

9155380830

main91553-80830

9167180612

main91671-80612

9413000802

main94130-00802

9451200800

main94512-00800

35 parts on this diagram · 2 diagrams in section
