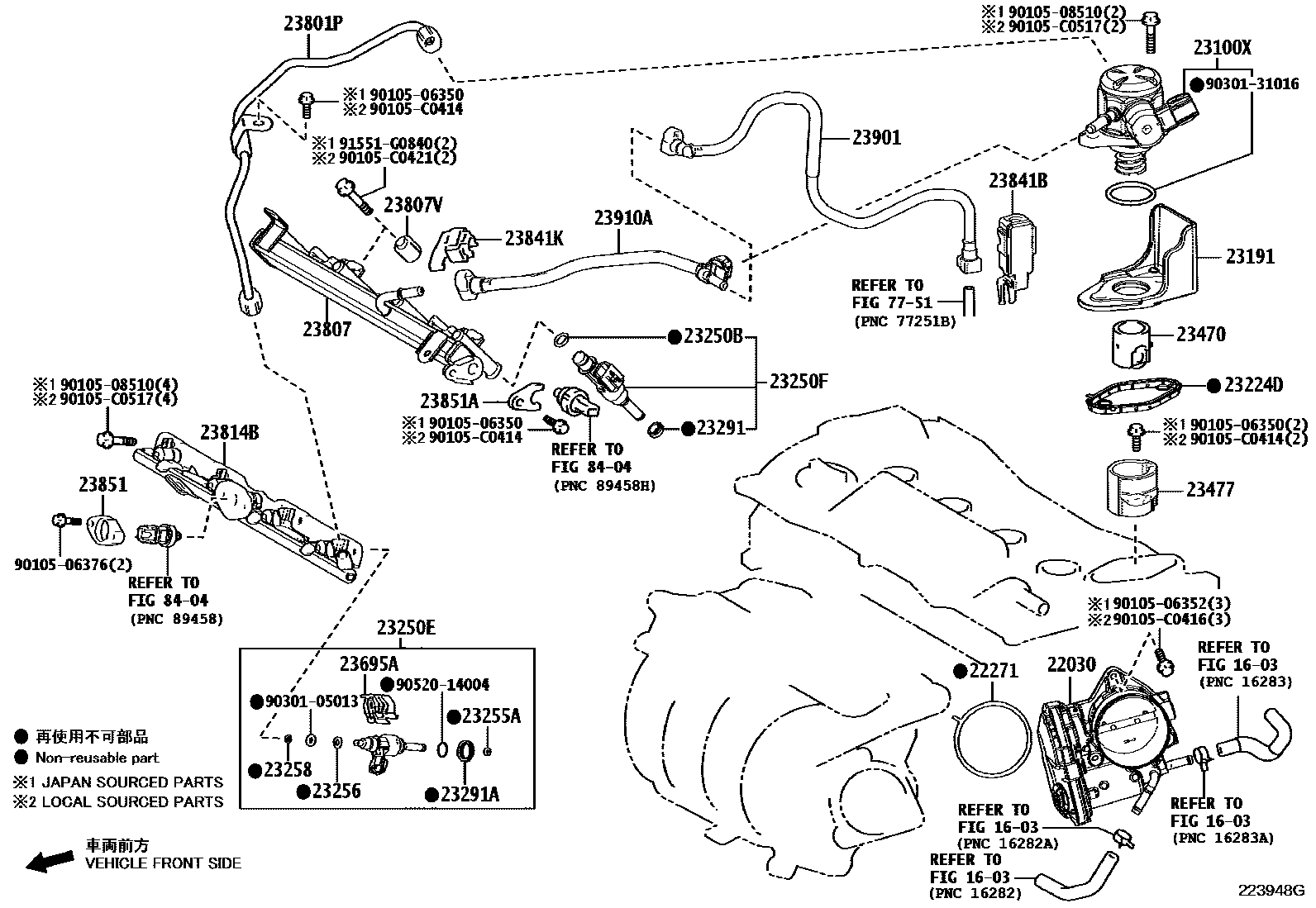

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-25020i202104-202108

main22030-F0060i202108-202304

22271GASKET, THROTTLE BODY

main22271-25020i202104-202108

(J)

main22271-F0030i202304

main22271-F0030i202108-202304

(L)

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-F2020i202104-202304

23191FLANGE, FUEL PUMP

main23214-F0030i202104-202304

main23214-F2090i202304

23224DGASKET, FUEL PUMP SPACER

main23224-25010i202104-202109

main23224-25011i202110-202304

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i202104-202108

(J)

main90301-07037i202108-202304

main90301-A0036i202104-202108

(L)

main90301-C0072i202304

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-25010-01i202104-202108

MARK 1,REFER REPAIR MANUAL

main23209-25010-02i202104-202108

MARK 2,REFER REPAIR MANUAL

main23209-25010-03i202104-202108

MARK 3,REFER REPAIR MANUAL

main23209-25010-04i202104-202108

MARK 4,REFER REPAIR MANUAL

main23209-25010-05i202104-202108

MARK 5,REFER REPAIR MANUAL

main23209-25010-06i202104-202108

MARK 6,REFER REPAIR MANUAL

main23209-25010-07i202104-202108

MARK 7,REFER REPAIR MANUAL

main23209-25010-08i202104-202108

MARK 8,REFER REPAIR MANUAL

main23209-25010-09i202104-202108

MARK 9,REFER REPAIR MANUAL

main23209-F0090-01i202108-202304

MARK 1,REFER REPAIR MANUAL

main23209-F0090-02i202108-202304

MARK 2,REFER REPAIR MANUAL

main23209-F0090-03i202108-202304

MARK 3,REFER REPAIR MANUAL

main23209-F0090-04i202108-202304

MARK 4,REFER REPAIR MANUAL

main23209-F0090-05i202108-202304

MARK 5,REFER REPAIR MANUAL

main23209-F0090-06i202108-202304

MARK 6,REFER REPAIR MANUAL

main23209-F0090-07i202108-202304

MARK 7,REFER REPAIR MANUAL

main23209-F0090-08i202108-202304

MARK 8,REFER REPAIR MANUAL

main23209-F0090-09i202108-202304

MARK 9,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29175i202104-202304

(J)

main23209-F9060i202304

main23209-F9060i202108-202304

(L)

23255ASEAL, FUEL INJECTOR

main23255-25010i202104-202304

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010i202104-202304

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31010i202104-202108

main23258-47030i202108-202304

23291INSULATOR, INJECTOR VIBRATION

main23291-0V010i202104-202304

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020i202104-202304

23470LIFTER ASSY, FUEL PUMP

main23470-0Y010i202104-202304

23477GUIDE, FUEL PUMP LIFTER

main23477-F2060i202104-202304

23695ACLAMP, NOZZLE HOLDER

main23695-25010i202104-202304

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-25031i202104-202108

main23801-F0020i202108-202304

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-25022i202104-202107

main23814-25023i202211-202304

(J)

main23814-25023i202108-202211

main23814-F0060i202211-202304

(L)

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-25010i202104-202304

23814BPIPE, FUEL DELIVERY

main23814-25010i202104-202210

main23814-25011i202211-202304

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-F0020i202104-202304

23841KCLAMP, FUEL PIPE

main23841-25040i202104-202304

(J)

main23841-F2020i202104-202304

(L)

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-F2020i202104-202304

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-F2030i202104-202304

23901TUBE SUB-ASSY, FUEL

main23901-F0210i202104-202304

23910ATUBE SUB-ASSY, FUEL

main23901-25061i202104-202304

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506352

main90105-06352

9010506376

main90105-06376

9010508510

main90105-08510

90105C0414

main90105-C0414

90105C0416

main90105-C0416

90105C0421

main90105-C0421

90105C0517

main90105-C0517

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840
