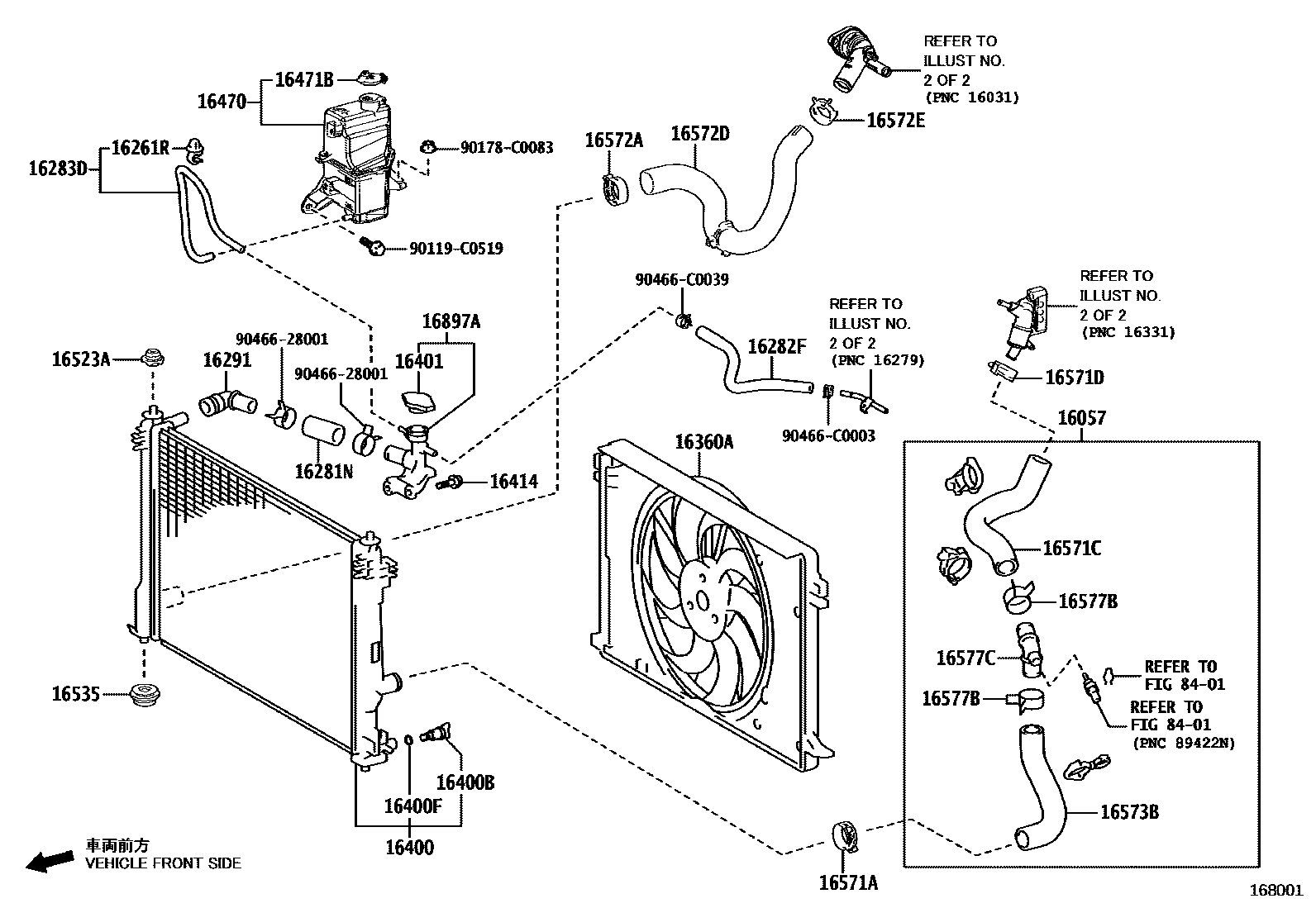

Toyota 667310 — RADIATOR & WATER OUTLET
16057HOSE SUB-ASSY, RADIATOR
16261RCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16281NHOSE, WATER BY-PASS, NO.4
16282FHOSE, WATER BY-PASS, NO.5
16283DHOSE, WATER BY-PASS, NO.6
16291JOINT, WATER HOSE
16360AFAN ASSY, W/MOTOR
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16414BOLT, RADIATOR TANK PIPE
16470TANK ASSY, RADIATOR RESERVE
16471BCAP, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
16577CPIPE, RADIATOR
16897ANECK, FILLER
8401SWITCH & RELAY & COMPUTER
90119C0519
90178C0083
9046628001
90466C0003
90466C0039
35 parts on this diagram · 3 diagrams in section
RADIATOR & WATER OUTLET for Toyota 667310
This section contains 75 genuine Toyota parts for the RADIATOR & WATER OUTLET system of the Toyota 667310. Key components include: WATER INLET SUB-ASSY, W/THERMOSTAT, HOUSING SUB-ASSY, WATER INLET W/WATER PUMP, HOSE SUB-ASSY, RADIATOR, PIPE SUB-ASSY, WATER BY-PASS, NO.2, HOSE ASSY, WATER BY-PASS.
