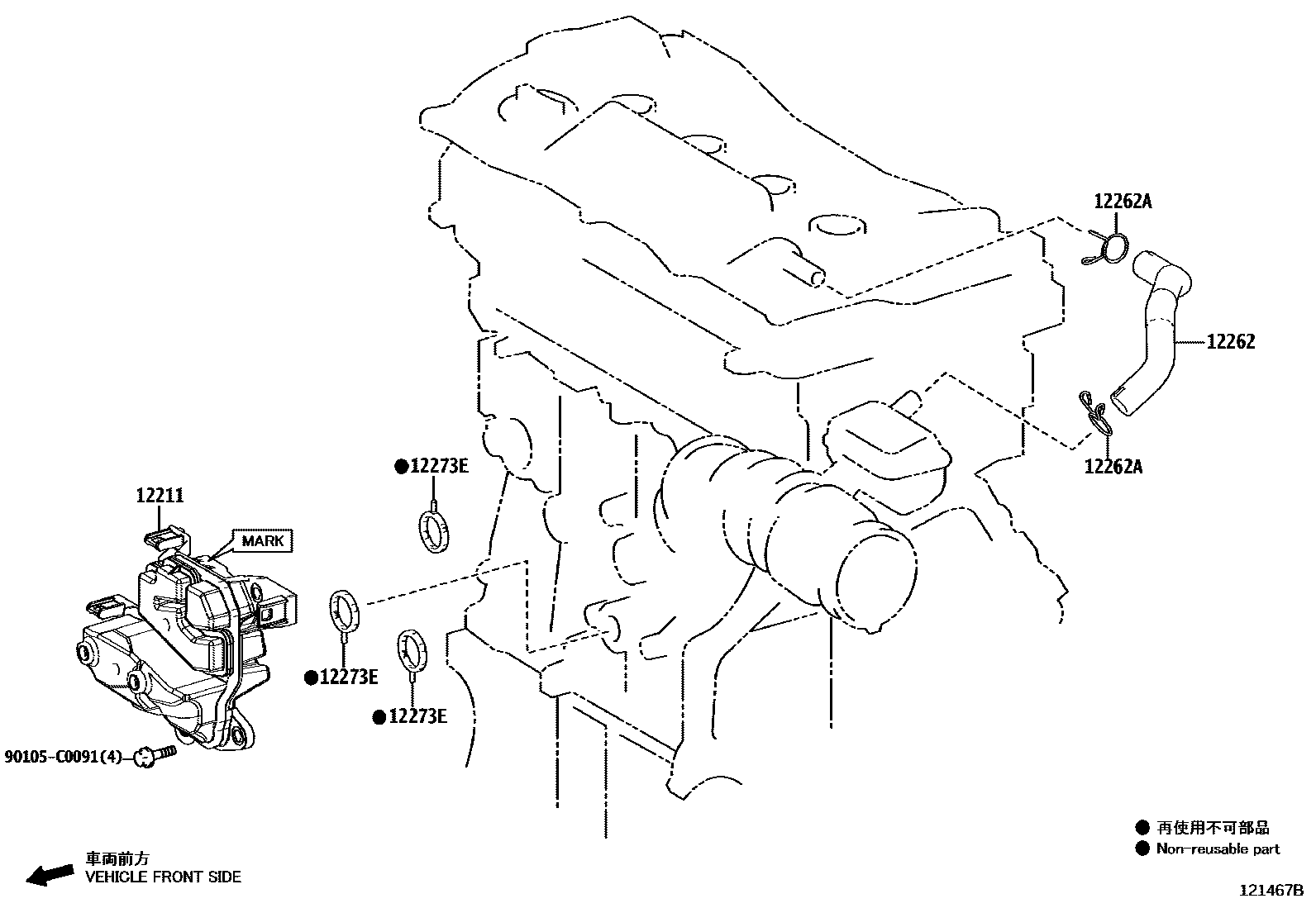

VENTILATION HOSE

12211CASE, VENTILATION, NO.1

main12211-25011iA25FFXS..AXAP5#202104-202108

MARK=12211-25011

main12211-F0020iA25FFXS..AXAP5#202108-202304

MARK=12211-F0020

12262HOSE, VENTILATION, NO.2

main12262-25080iA25FFXS..AXAP5#202104-202304

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004×2iA25FFXS..AXAP5#202104-202304

12273EGASKET(FOR VENTILATION CASE)

main12273-F2020×3iA25FFXS..AXAP5#202104-202304

90105C0091

main90105-C0091

5 parts on this diagram · 1 diagram in section
