Toyota 664330 — RADIO RECEIVER & AMPLIFIER & CONDENSER

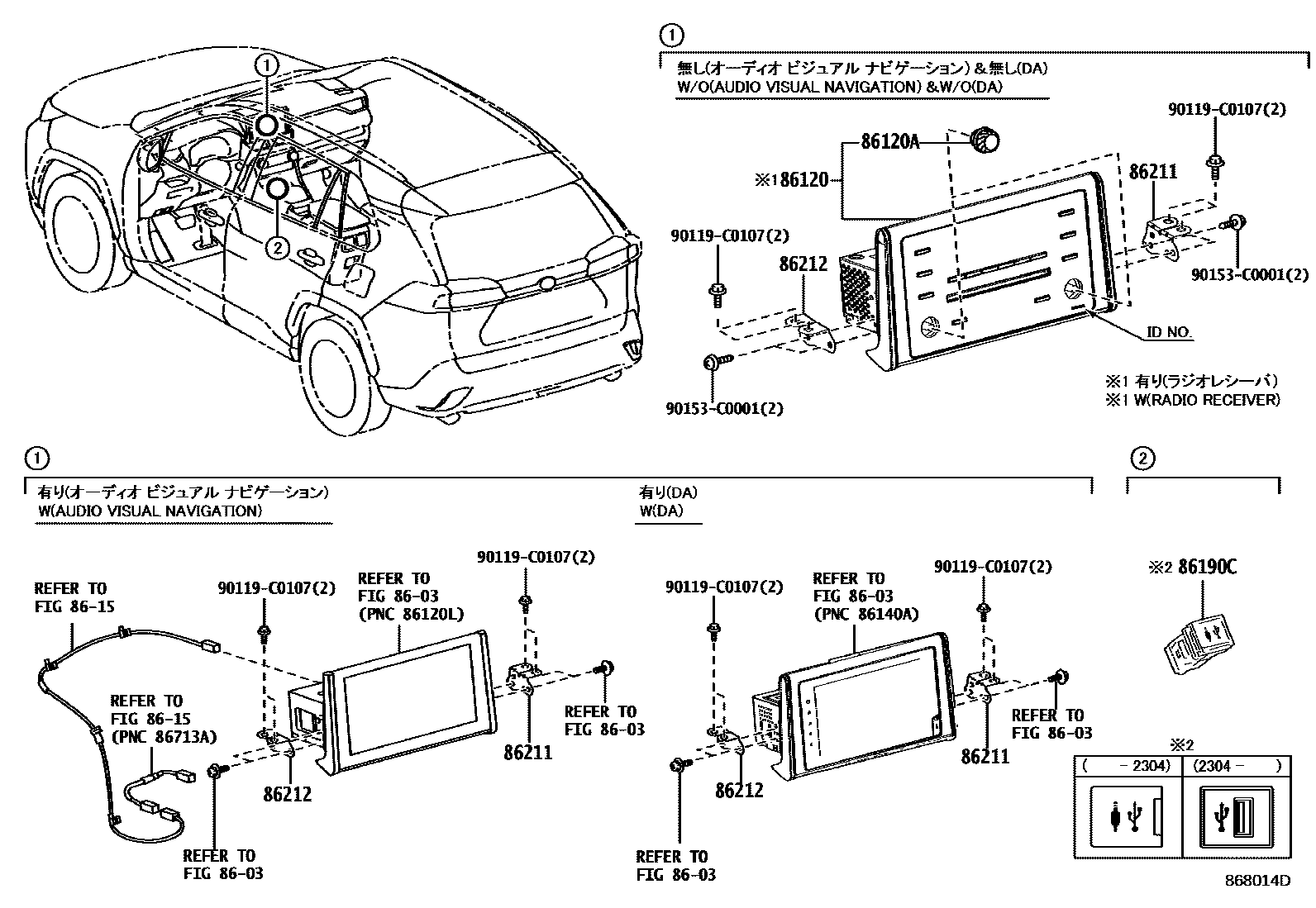

Parts diagram
8603NAVIGATION & FRONT MONITOR DISPLAY
→ Go to FIG 86-03
86120RECEIVER ASSY, RADIO
86120-0R210
90011-25317
86120AKNOB, RADIO RECEIVER SWITCH
8615TELEPHONE & MAYDAY
→ Go to FIG 86-15
86190CADAPTER ASSY, STEREO JACK, NO.1
86211BRACKET, RADIO, NO.1
86211-0R110
86212BRACKET, RADIO, NO.2
86212-0R110
90119C0107
90119-C0107
90153C0001
90153-C0001

9 parts on this diagram · 2 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota 664330

This section contains 11 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota 664330. Key components include: CONDENSER, RADIO SETTING, NAVIGATION & FRONT MONITOR DISPLAY, RECEIVER ASSY, RADIO, KNOB, RADIO RECEIVER SWITCH, TELEPHONE & MAYDAY.
