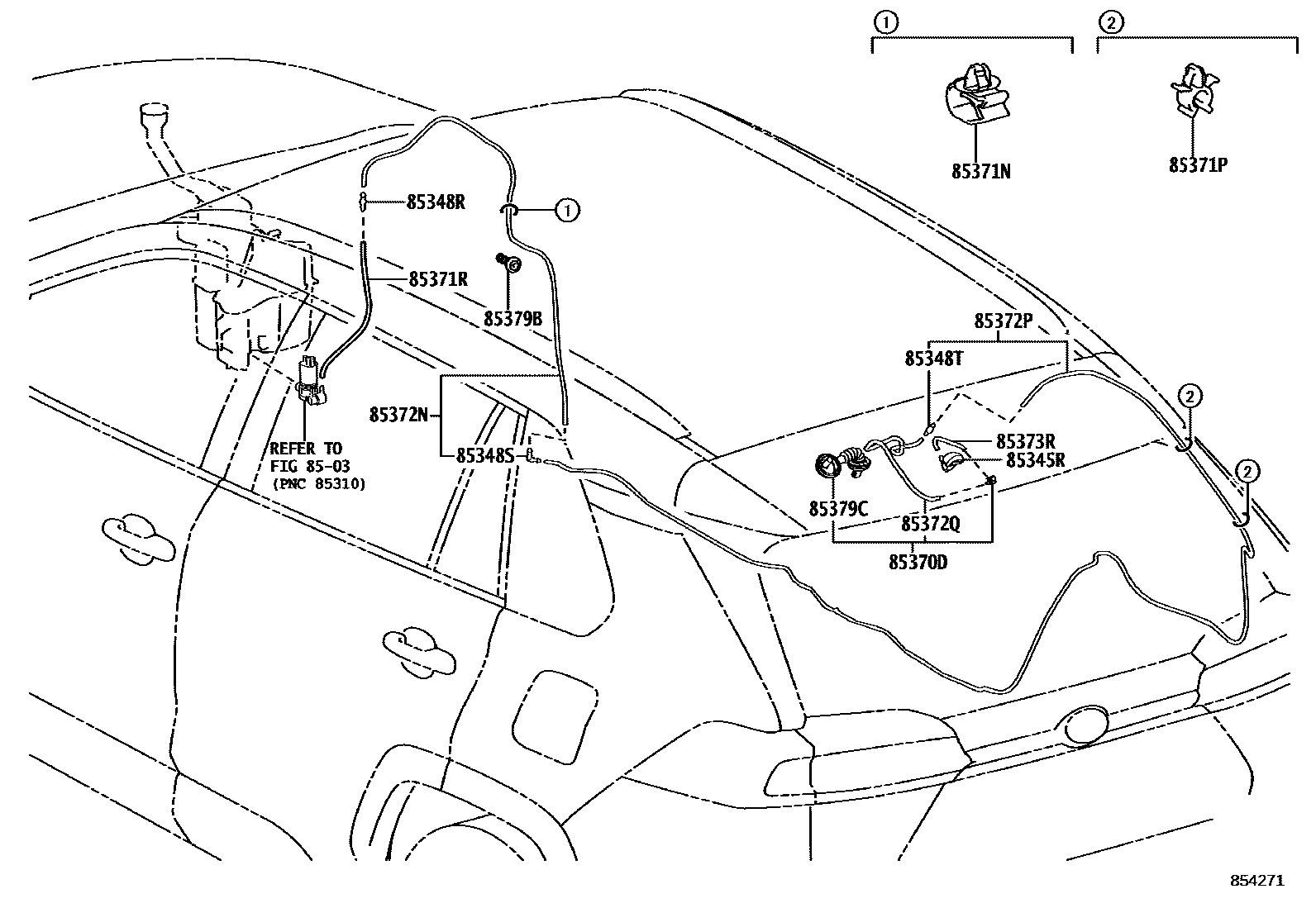

REAR WASHER
8503WINDSHIELD WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85370DHOSE ASSY, REAR WASHER, NO.1
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
(J)
(L)
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
*H,L=380
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1300
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=3900
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=480
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=125
85379BGROMMET, WASHER, A
85379CGROMMET, REAR WASHER HOSE NO.1
15 parts on this diagram · 1 diagram in section
