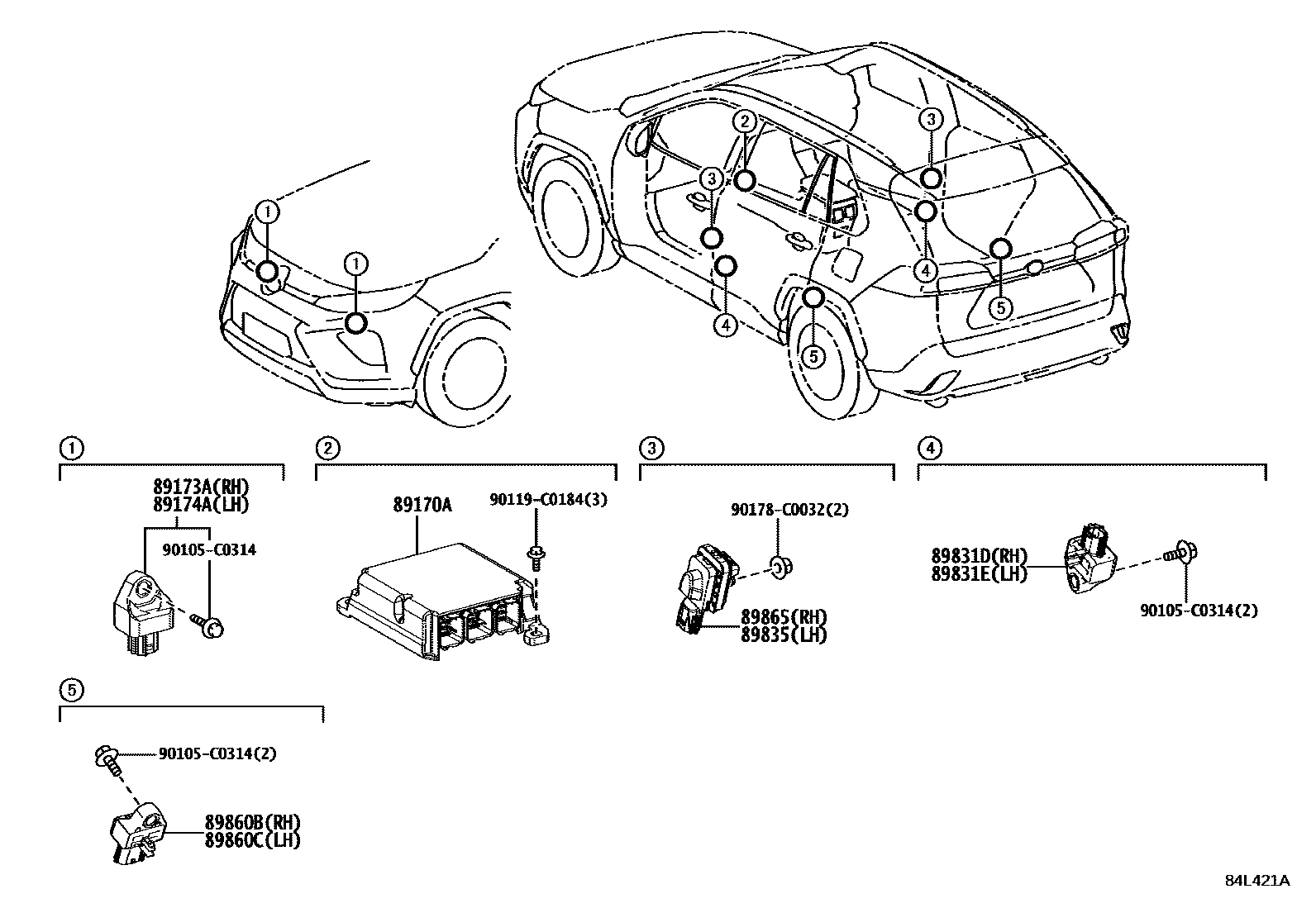

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0R410iMXAA5#202304-202405

main89170-0R420iAXAL52..X202304

main89170-0R470iMXAA5#202405

*614

main89170-0R480iAXAL5#..G,M202405

*614

main89170-0R330supersedes 89170-0R370iMXAA5#202004-202303

SRS AIR BAG-W(PASSENGER CUSHION)

main89170-0R340supersedes 89170-0R380iAXAH5#202004-202303

SRS AIR BAG-W(PASSENGER CUSHION)

89173ASENSOR, AIRBAG, FRONT RH

main89173-09886iAXAH5#,MXAA5#202004-202303

main89173-09888iMXAA52;AXAL5#,MXAA54..G,M202405

89174ASENSOR, AIRBAG, FRONT LH

main89173-09886iAXAH5#,MXAA5#202004-202303

main89173-09888iMXAA52;AXAL5#,MXAA54..G,M202405

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-0R150iAXAH5#,MXAA5#202004-202303

SRS AIR BAG-W(PASSENGER CUSHION)

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-0R150iAXAH5#,MXAA5#202004-202303

SRS AIR BAG-W(PASSENGER CUSHION)

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-02070iMXAA52;AXAL5#,MXAA54..G,M202405

main8983A-0R020iAXAH5#,MXAA5#202004-202005

main8983A-0R021iAXAH5#,MXAA5#202006-202303

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-0R130iAXAL52..X202304

main89831-0R160iMXAA52;AXAL5#,MXAA54..G,M202405

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-0R130iAXAH5#,MXAA5#202004-202303

main89831-0R160iMXAA52;AXAL5#,MXAA54..G,M202405

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-02070iMXAA52;AXAL5#,MXAA54..G,M202405

main8983A-0R020iAXAH5#,MXAA5#202004-202005

main8983A-0R021iAXAH5#,MXAA5#202006-202303

90105C0314

main90105-C0314

90119C0184

main90119-C0184

90178C0032

main90178-C0032

12 parts on this diagram · 1 diagram in section
