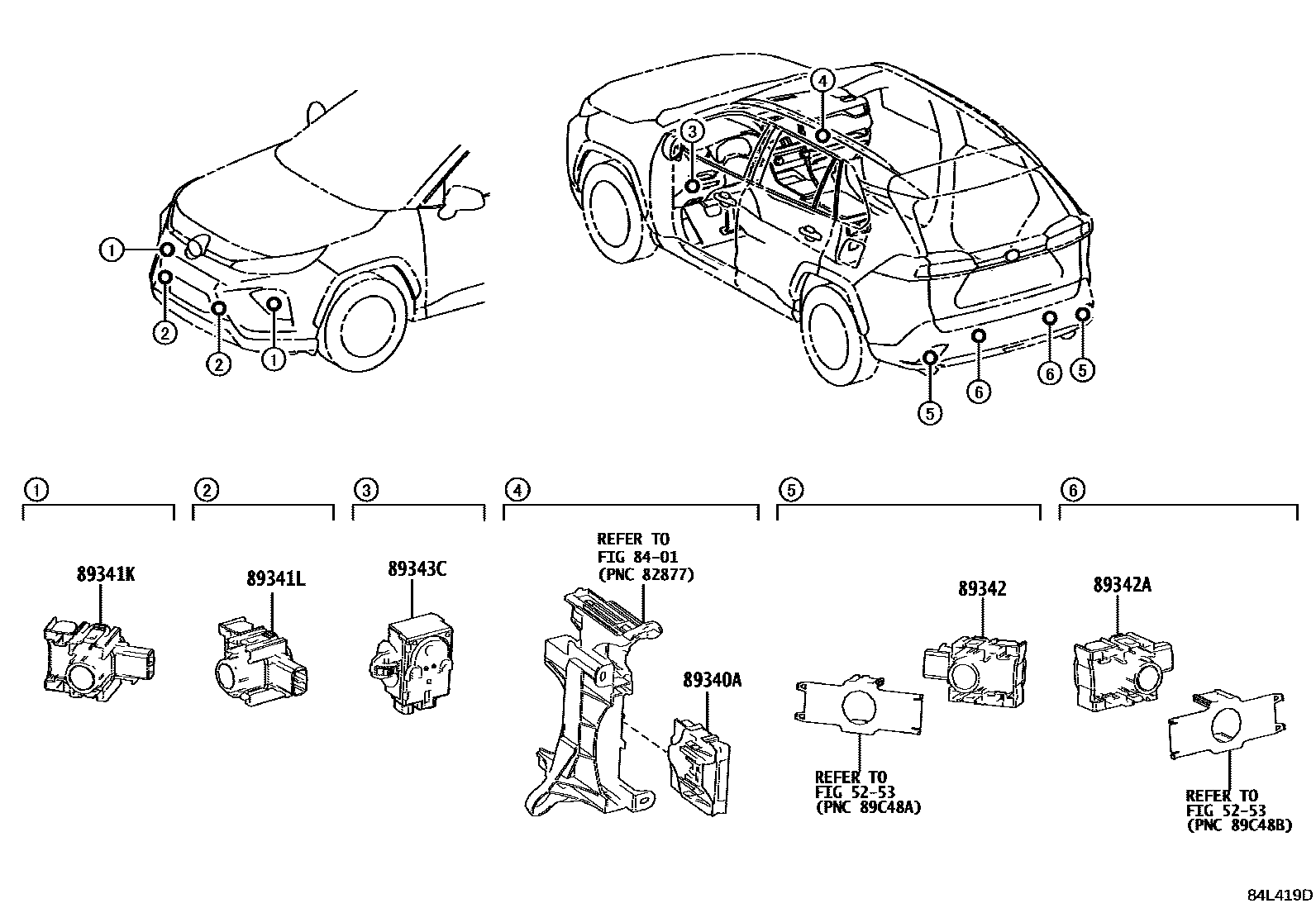

CLEARANCE & BACK SONAR

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0R100iAXAH5#,MXAA5#..A,G,M202004-202303

main89340-0R180iAXAL5#,MXAA5#..G,M202304-202405

main89340-0R360iMXAA52;AXAL5#,MXAA54..G,M202405

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-02050-C2×2iAXAL5#,MXAA5#..G,M202304-202405

BLACK MC.

main89341-0R140-C0×2iMXAA52;AXAL5#,MXAA54..G,M202405

BLACK MC.

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-02050-C2×2iAXAH5#,MXAA5#..A,G,M202004-202303

BLACK MC.

main89341-0R140-C0×2iMXAA52;AXAL5#,MXAA54..G,M202405

BLACK MC.

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-0R070×2iAXAH5#,MXAA5#..A,G,M202004-202303

main89341-0R140-C0×2iAXAL5#,MXAA5#..M202405

BLACK MC.

main89341-0R150×2iMXAA52..G,X;AXAL5#,MXAA54..G202405

main89341-02050-C2×2iAXAH5#,MXAA5#..M202207-202303

BLACK EDITION,BLACK MC.

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-0R070×2iAXAL5#,MXAA5#..G,M202304-202405

main89341-0R140-C0×2iAXAL5#,MXAA5#..M202405

BLACK MC.

main89341-0R150×2iMXAA52..G,X;AXAL5#,MXAA54..G202405

main89341-02050-C2×2iAXAH5#,MXAA5#..M202207-202303

BLACK EDITION,BLACK MC.

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-02010iMXAA52;AXAL5#,MXAA54..G,M202405

8 parts on this diagram · 1 diagram in section
