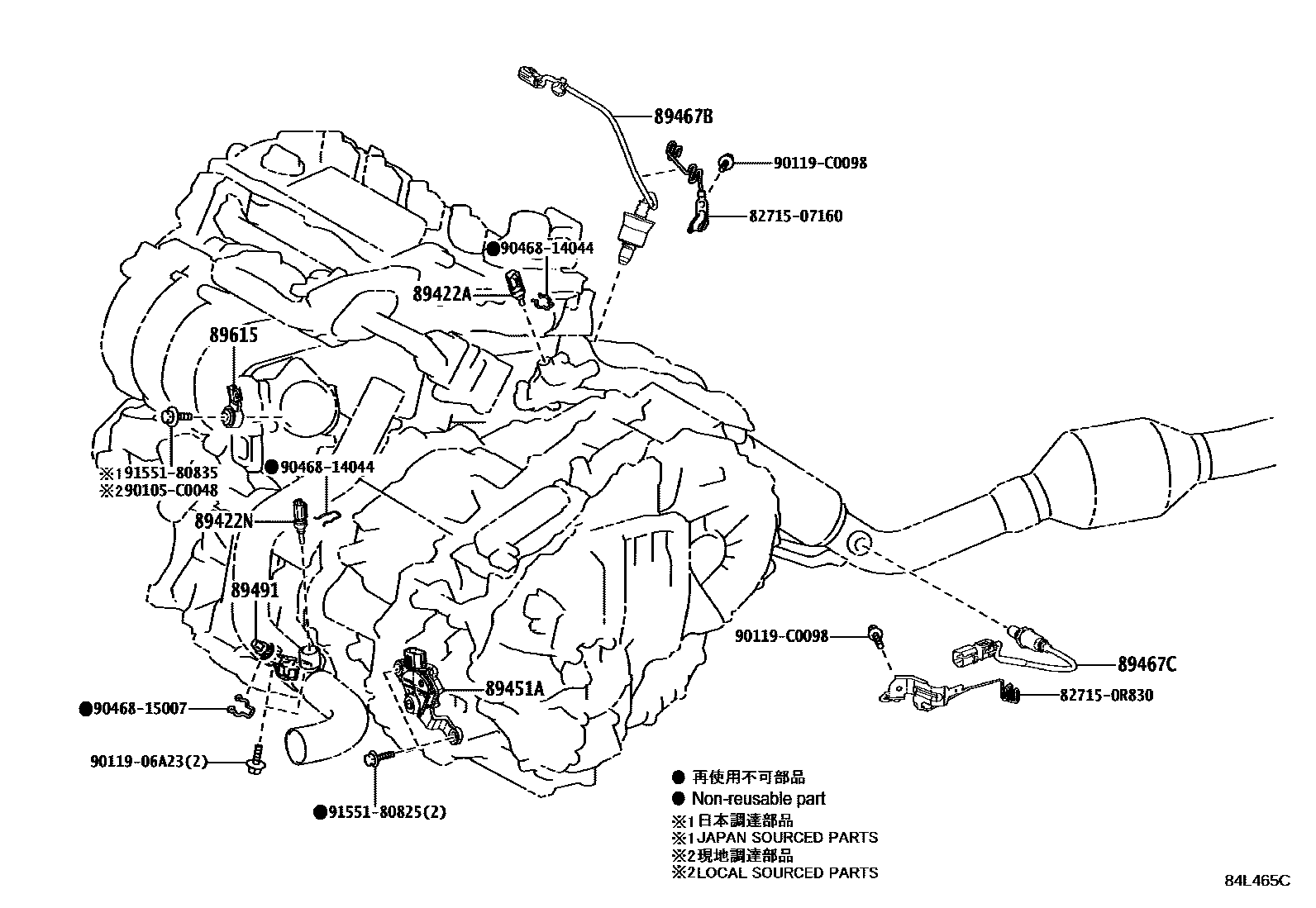

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMXAA52;AXAL5#,MXAA54..G,M202004-202405

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iAXAL5#..G,M202004-202405

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXAL5#..G,M202004-202405

89467BSENSOR, AIR FUEL RATIO

main89467-06270iAXAH5#202004-202303

main89467-0R160iMXAA5#202304-202405

main89467-0R190iAXAL52..X202304-202405

main89467-F4010iMXAA5#202004-202303

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0R130iAXAH5#,MXAA5#202004-202303

main89467-0R170iAXAL52..X202304-202405

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXAH5#,MXAA5#202004-202204

sub89491-33052

main89491-33052iAXAL52..X202205-202405

89615SENSOR, KNOCK CONTROL

main89615-20090iMXAA52;AXAL5#,MXAA54..G,M202004-202405

8271507160BRACKET,WIRING HARNESS CLAMP

main82715-07160

827150R830BRACKET,WIRING HARNESS CLAMP

main82715-0R830

90105C0048

main90105-C0048

9011906A23

main90119-06A23

90119C0098

main90119-C0098

9046814044

main90468-14044

9046815007

main90468-15007

9155180825

main91551-80825

9155180835

main91551-80835

16 parts on this diagram · 21 diagrams in section
