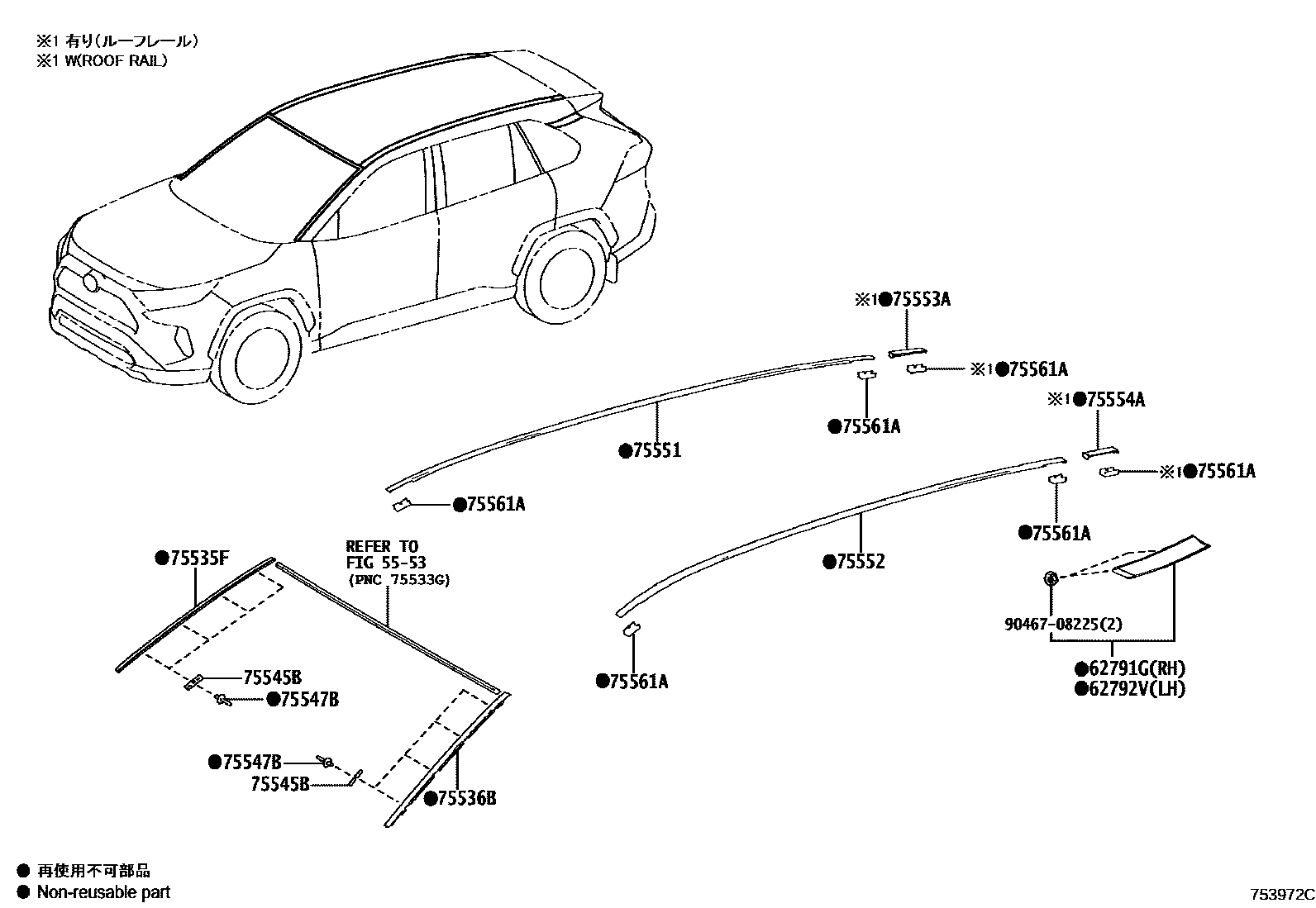

MOULDING

0001 1 0002 1 0003 1

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

62791GMOULDING, QUARTER WINDOW, UPPER RH

main62791-0R030iAXAL5#,MXAA5#..G,M202405

main62791-0R060iMXAA52..X202304-202405

62792VMOULDING, QUARTER WINDOW, UPPER LH

main62792-0R030iAXAL5#,MXAA5#..G,M202405

main62792-0R060iAXAH52,MXAA52..X202004-202303

75535FMOULDING, WINDSHIELD, OUTSIDE LOWER RH

main75535-0R030iMXAA52;AXAL5#,MXAA54..G,M202304-202405

75536BMOULDING, WINDSHIELD, OUTSIDE LOWER LH

main75536-0R030iMXAA52;AXAL5#,MXAA54..G,M202405

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-0R020×8iMXAA52;AXAL5#,MXAA54..G,M202405

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-51021×8iAXAH5#,MXAA5#202101-202303

(J)

main90269-C0005×8iMXAA52;AXAL5#,MXAA54..G,M202304-202405

(L)

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0R050iMXAA52..M,X;AXAL52,MXAA54..M202405

NO PAINT REQ.

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0R050iMXAA52..M,X;AXAL5#,MXAA54..M202304-202405

NO PAINT REQ.

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-0R080iAXAL52,MXAA5#..M; AXAL54;AXAL52,MXAA5#..G202405

MID & PACKAGE

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-0R080iAXAH52,MXAA5#..A202004-202303

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-0R020×2iAXAH5#,MXAA5#..G,M,X; AXAH52,MXAA5#..A202004-202303

9046708225

main90467-08225

13 parts on this diagram · 3 diagrams in section
