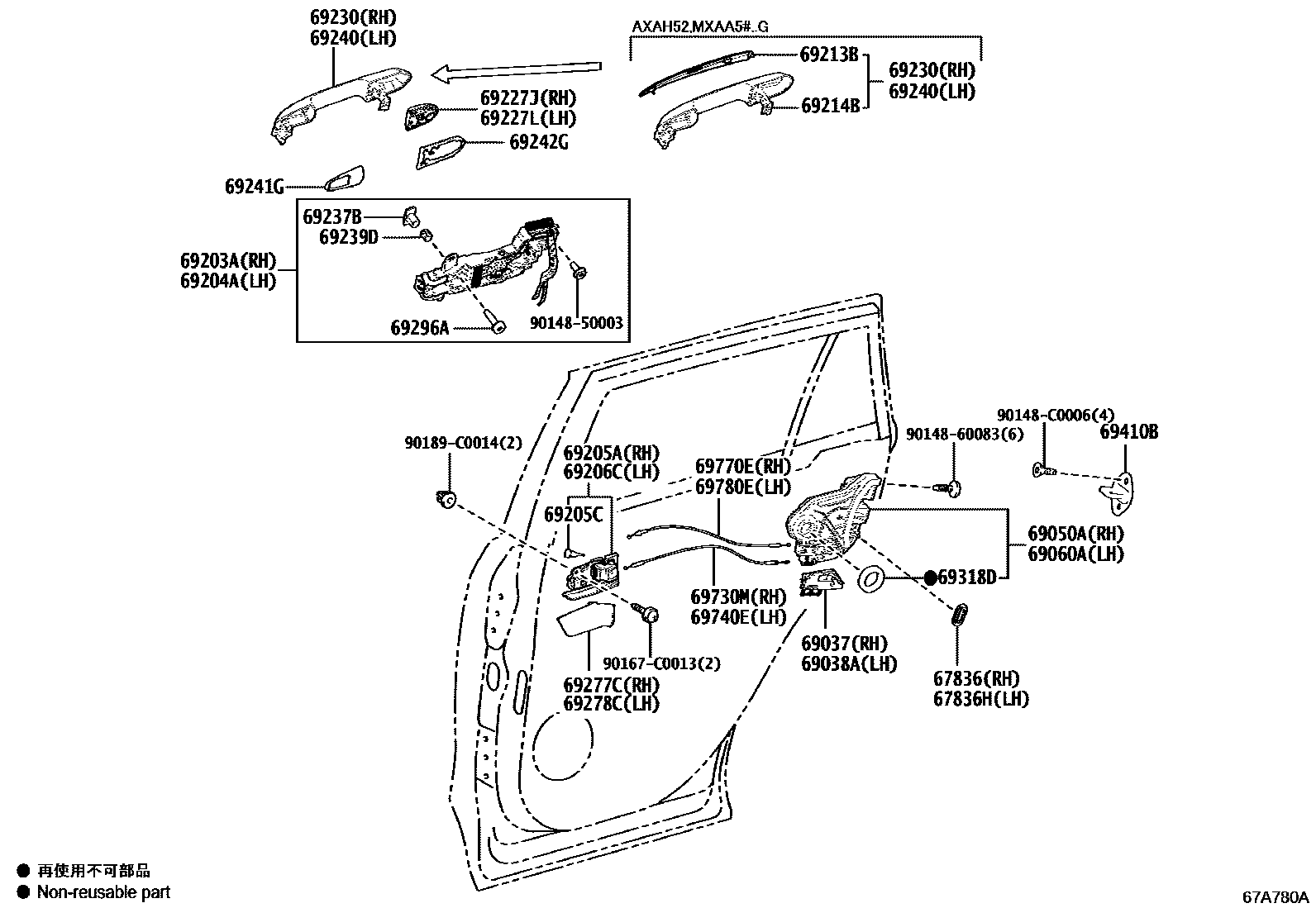

REAR DOOR LOCK & HANDLE

0001 1 0002 1

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-02040iMXAA52;AXAL5#,MXAA54..G,M202304-202405

main67836-06020iAXAH5#,MXAA5#202004-202303

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-02040iMXAA52;AXAL5#,MXAA54..G,M202405

main67836-06020iAXAH5#,MXAA5#202004-202303

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02070iAXAH5#,MXAA5#202004-202303

main69037-0R020iMXAA52;AXAL5#,MXAA54..G,M202405

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02070iAXAH5#,MXAA5#202004-202303

main69038-0R020iMXAA52;AXAL5#,MXAA54..G,M202405

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02470iAXAH5#,MXAA5#..A,G,M202004-202303

main69050-02480iAXAH52,MXAA52..X202004-202303

main69050-0R030iMXAA52;AXAL5#,MXAA54..G,M202304-202405

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02470iAXAH5#,MXAA5#..A,G,M202004-202303

main69060-02480iAXAH52,MXAA52..X202004-202303

main69060-0R030iMXAA52;AXAL5#,MXAA54..G,M202405

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0R090iMXAA52;AXAL5#,MXAA54..G,M202304-202405

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0R090iMXAA52;AXAL5#,MXAA54..G,M202304-202405

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02470-C0iAXAL5#,MXAA5#..G,M202304-202405

BLACK,TRIM0#,1#,2#

main69205-02500-C0iAXAL5#,MXAA5#..G,M202304-202405

BLACK,TRIM0#,2#,MARK = WHITE

main69205-06170-C0iAXAH5#,MXAA5#..A,G,M202004-202207

BLACK,TRIM1#,2#

main69205-0R070-C0iAXAL52..X202304

BLACK,TRIM2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90080-54005iAXAL5#,MXAA5#..G,M202405

TYPE B

main90541-04014iAXAL5#,MXAA5#..G,M; MXAA52..X202405

TYPE A

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02450-C0iAXAH5#,MXAA5#..A,G,M202207-202303

BLACK,TRIM1#,2#

main69206-02480-C0iAXAL5#,MXAA5#..G,M202304-202405

BLACK,TRIM0#,2#,MARK = WHITE

main69206-06170-C0iAXAH5#,MXAA5#..A,G,M202004-202207

BLACK,TRIM1#,2#

main69206-0R070-C0iAXAL52..X202304

BLACK,TRIM2#

69213BHANDLE, DOOR OUTSIDE, NO.1

main69213-0R060-A1×2iAXAL5#,MXAA5#..G202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69213-0R060-B0×2iAXAL5#,MXAA5#..G202405

METAL STREAM ME,1K0 ,2UY

main69213-0R060-C0×2iAXAL5#,MXAA5#..G202405

BLACK MC.,209

main69213-0R060-C1×2iAXAH52,MXAA5#..G202004-202303

BLACKISH AGEHA GF.,221 ,2TE

main69213-0R060-E0×2iAXAL5#,MXAA5#..G202304-202405

STEEL BLONDE ME.,2TL ,4X1

main69213-0R060-E1×2iAXAH52,MXAA5#..G202004-202303

BLACKISH BROWN MC.,2TF ,4X9

main69213-0R060-J0×2iAXAH52,MXAA5#..G202004-202303

DK.BLUE M.M.,2TT ,8W7

69214BHANDLE, DOOR OUTSIDE, NO.2

main69211-0R150-A1×2iAXAL5#,MXAA5#..G202304-202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69211-0R150-B0×2iAXAL5#,MXAA5#..G202304-202405

METAL STREAM ME,1K0 ,2UY

main69211-0R150-C0×2iAXAL5#,MXAA5#..G202304-202405

BLACK MC.,209 ,2TG

main69211-0R150-C1×2iAXAH52,MXAA5#..G202004-202303

BLACKISH AGEHA GF.,221 ,2TE

main69211-0R150-E0×2iAXAL5#,MXAA5#..G202304-202405

STEEL BLONDE ME.,2TL ,4X1

main69211-0R150-E1×2iAXAH52,MXAA5#..G202004-202303

BLACKISH BROWN MC.,2TF ,4X9

main69211-0R150-J0×2iAXAH52,MXAA5#..G202004-202303

DK.BLUE M.M.,2TT ,8W7

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-0R100iMXAA52;AXAL5#,MXAA54..G,M202405

BLACK

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-0R100iMXAA52;AXAL5#,MXAA54..G,M202405

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0R210-A1iAXAL5#,MXAA5#..G202405

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R210-B0iAXAL5#,MXAA5#..G202304-202405

METAL STREAM ME,1K0 ,2UY

main69210-0R210-C0iAXAL5#,MXAA5#..G202304-202405

BLACK MC.,209 ,2TG

main69210-0R210-C1iAXAL5#,MXAA5#..G202304-202405

BLACKISH AGEHA GF.,221 ,2TE

main69210-0R210-E0iAXAL5#,MXAA5#..G202405

STEEL BLONDE ME.,2TL ,4X1

main69210-0R210-E1iAXAH52,MXAA5#..G202004-202303

BLACKISH BROWN MC.,2TF ,4X9

main69210-0R210-J0iAXAH52,MXAA5#..G202004-202303

DK.BLUE M.M.,2TT ,8W7

main69211-0R130-A1iAXAH5#,MXAA5#..A,M; AXAH52,MXAA52..X202004-202303

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PU

main69211-0R130-B0iAXAL5#,MXAA5#..M; MXAA52..X202405

METAL STREAM ME,1K0; METAL STREAM ME,1K0 ,2UY

main69211-0R130-C0iAXAL5#,MXAA5#..M; MXAA52..X202304-202405

BLACK MC.,209; BLACK MC.,209 ,2TG

main69211-0R130-C1iAXAL5#,MXAA5#..M; MXAA52..X202304-202405

BLACKISH AGEHA GF.,221; BLACKISH AGEHA GF.,221 ,2TE

main69211-0R130-E0iAXAL5#,MXAA5#..M; MXAA52..X202304-202405

STEEL BLONDE ME.,2TL ,4X1; STEEL BLONDE ME.,4X1

main69211-0R130-E1iAXAH5#,MXAA5#..A,M; AXAH52,MXAA52..X202004-202303

BLACKISH BROWN MC.,2TF ,4X9; BLACKISH BROWN MC.,4X9

main69211-0R130-J0iAXAH5#,MXAA5#..A,M; AXAH52,MXAA52..X202004-202303

DK.BLUE M.M.,2TT ,8W7; DK.BLUE M.M.,8W7

69237BNUT, REAR DOOR HANDLE

main69237-0R040×2iAXAH5#,MXAA5#202004-202303

69239DBUSH, REAR DOOR HANDLE

main69239-0R040×2iMXAA52;AXAL5#,MXAA54..G,M202304-202405

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-0R210-A1iAXAH52,MXAA5#..G202004-202303

PLATINUM WHITE PEARL MC.,089 ,2PU

main69210-0R210-B0iAXAL5#,MXAA5#..G202304-202405

METAL STREAM ME,1K0 ,2UY

main69210-0R210-C0iAXAL5#,MXAA5#..G202405

BLACK MC.,209

main69210-0R210-C1iAXAL5#,MXAA5#..G202304-202405

BLACKISH AGEHA GF.,221 ,2TE

main69210-0R210-E0iAXAH52,MXAA5#..G202004-202303

STEEL BLONDE ME.,2TL ,4X1

main69210-0R210-E1iAXAH52,MXAA5#..G202004-202303

BLACKISH BROWN MC.,2TF ,4X9

main69210-0R210-J0iAXAH52,MXAA5#..G202004-202303

DK.BLUE M.M.,2TT ,8W7

main69211-0R130-A1iAXAL5#,MXAA5#..M; MXAA52..X202304-202405

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PU

main69211-0R130-B0iAXAL5#,MXAA5#..M; MXAA52..X202304-202405

METAL STREAM ME,1K0; METAL STREAM ME,1K0 ,2UY

main69211-0R130-C0iAXAL5#,MXAA5#..M; MXAA52..X202304-202405

BLACK MC.,209; BLACK MC.,209 ,2TG

main69211-0R130-C1iAXAH5#,MXAA5#..A,M; AXAH52,MXAA52..X202004-202303

BLACKISH AGEHA GF.,221; BLACKISH AGEHA GF.,221 ,2TE

main69211-0R130-E0iAXAL5#,MXAA5#..M; MXAA52..X202304-202405

STEEL BLONDE ME.,2TL ,4X1; STEEL BLONDE ME.,4X1

main69211-0R130-E1iAXAH5#,MXAA5#..A,M; AXAH52,MXAA52..X202004-202303

BLACKISH BROWN MC.,2TF ,4X9; BLACKISH BROWN MC.,4X9

main69211-0R130-J0iAXAH5#,MXAA5#..A,M; AXAH52,MXAA52..X202004-202303

DK.BLUE M.M.,2TT ,8W7; DK.BLUE M.M.,8W7

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0R050×2iMXAA52;AXAL5#,MXAA54..G,M202405

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0R050×2iMXAA52;AXAL5#,MXAA54..G,M202405

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-0R040-C0iAXAH52,MXAA52..X; MXAA54..A,G; MXAA54..M;AXAH5#,MXAA52..A,G,M202004-202303

BLACK; BLACK,TRIM1#,2#; BLACK,TRIM2#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-0R040-C0iMXAA52;AXAL5#,MXAA54..G,M202405

BLACK

69296ASCREW, DOOR INSIDE HANDLE

main69296-0R040×2iAXAH5#,MXAA5#202004-202208

main90148-C0013×2iAXAL52..X202304

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-0R030iAXAL52..X202304

RH

main69318-0R040iMXAA52;AXAL5#,MXAA54..G,M202304-202405

LH

main69318-51010×2iAXAH5#,MXAA5#202004-202303

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020×2iMXAA52;AXAL5#,MXAA54..G,M202405

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-0R080iAXAH5#,MXAA5#202004-202303

main69730-0R120iMXAA52;AXAL5#,MXAA54..G,M202405

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-0R080iAXAH5#,MXAA5#202004-202303

main69730-0R120iMXAA52;AXAL5#,MXAA54..G,M202304-202405

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-0R080iAXAH5#,MXAA5#202004-202303

main69770-0R120iMXAA52;AXAL5#,MXAA54..G,M202405

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-0R080iAXAH5#,MXAA5#202004-202303

main69770-0R120iAXAL52..X202304

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

90167C0013

main90167-C0013

90189C0014

main90189-C0014
