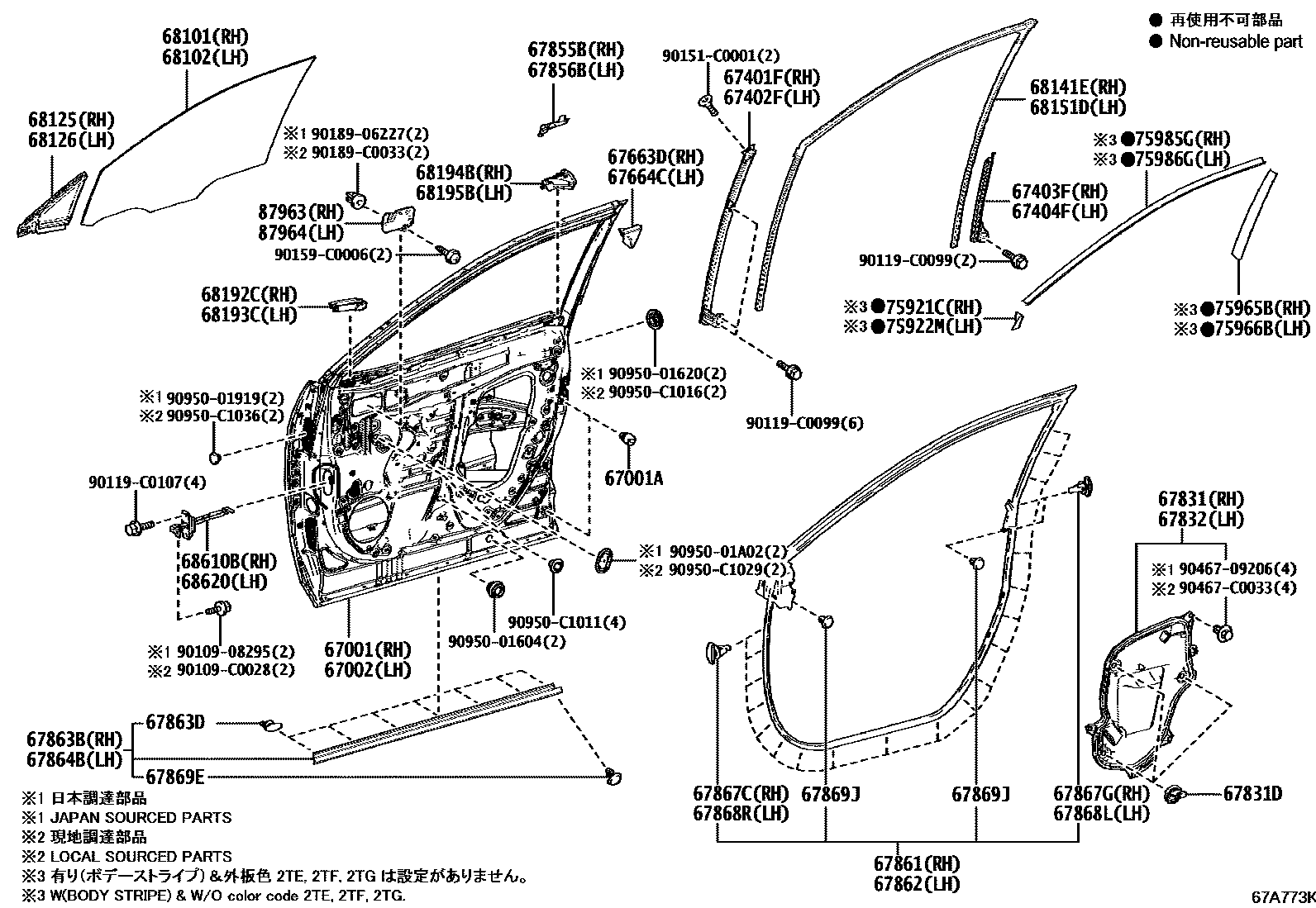

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0R110iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67001ACUSHION, FRONT DOOR PANEL

main90541-09137iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0R130iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67663DGARNISH, DOOR FRAME, RH

main67663-0R050iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67664CGARNISH, DOOR FRAME, LH

main67664-0R050iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main67869-F4030iAXAH5#,MXAA5#202004-202405

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0R070iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-0R070iAXAH5#,MXAA5#202004-202010

main67863-0R071iAXAL52..X202010-202405

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-12150iAXAH5#,MXAA5#202004-202405

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-0R050iAXAH5#,MXAA5#202004-202010

main67864-0R051iAXAH5#,MXAA5#202010-202405

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iMXAA52;AXAL5#,MXAA54..G,M202004-202405

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150iMXAA52;AXAL5#,MXAA54..G,M202004-202303

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150iMXAA52;AXAL5#,MXAA54..G,M202405

(J)

main67867-12150iAXAH5#,MXAA5#202004-202303

67868RRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iMXAA52;AXAL5#,MXAA54..G,M202004-202303

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-26050iMXAA52;AXAL5#,MXAA54..G,M202010-202405

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68141ERUN, FRONT DOOR GLASS, RH

main68141-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68151DRUN, FRONT DOOR GLASS, LH

main68151-0R080iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68192CSEAL, FRONT DOOR BELT, FRONT RH

main68192-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68193CSEAL, FRONT DOOR BELT, FRONT LH

main68193-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-0R030iAXAL52..X202004-202405

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0R080iAXAH5#,MXAA5#202004-202111

sub68610-0R081

main68610-0R081iMXAA52;AXAL5#,MXAA54..G,M202112-202405

main68610-0R081iAXAH5#,MXAA5#202206-202303

(L)

main68610-42060iAXAH5#,MXAA5#202206-202303

(J)

68620CHECK ASSY, FRONT DOOR, LH

main68610-0R080iAXAH5#,MXAA5#202004-202111

sub68610-0R081

main68610-0R081iMXAA52;AXAL5#,MXAA54..G,M202112-202405

main68610-0R081iAXAH5#,MXAA5#202206-202303

(L)

main68610-42060iAXAH5#,MXAA5#202206-202303

(J)

75921CTAPE, BLACK OUT, NO.1 RH

75922MTAPE, BLACK OUT, NO.1 LH

75965BSTRIPE, FRONT DOOR NO.4 RH

75966BSTRIPE, FRONT DOOR NO.4 LH

75985GSTRIPE, FRONT DOOR OUTSIDE, RH

75986GSTRIPE, FRONT DOOR OUTSIDE, LH

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0R030iMXAA52;AXAL5#,MXAA54..G,M202004-202405

9010908295

main90109-08295

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

90159C0006

main90159-C0006

9018906227

main90189-06227

90189C0033

main90189-C0033

9046709206

main90467-09206

90467C0033

main90467-C0033

9095001604

main90950-01604

9095001620

main90950-01620

9095001919

main90950-01919

9095001A02

main90950-01A02

90950C1011

main90950-C1011

90950C1016

main90950-C1016

90950C1029

main90950-C1029

90950C1036

main90950-C1036

63 parts on this diagram · 2 diagrams in section
