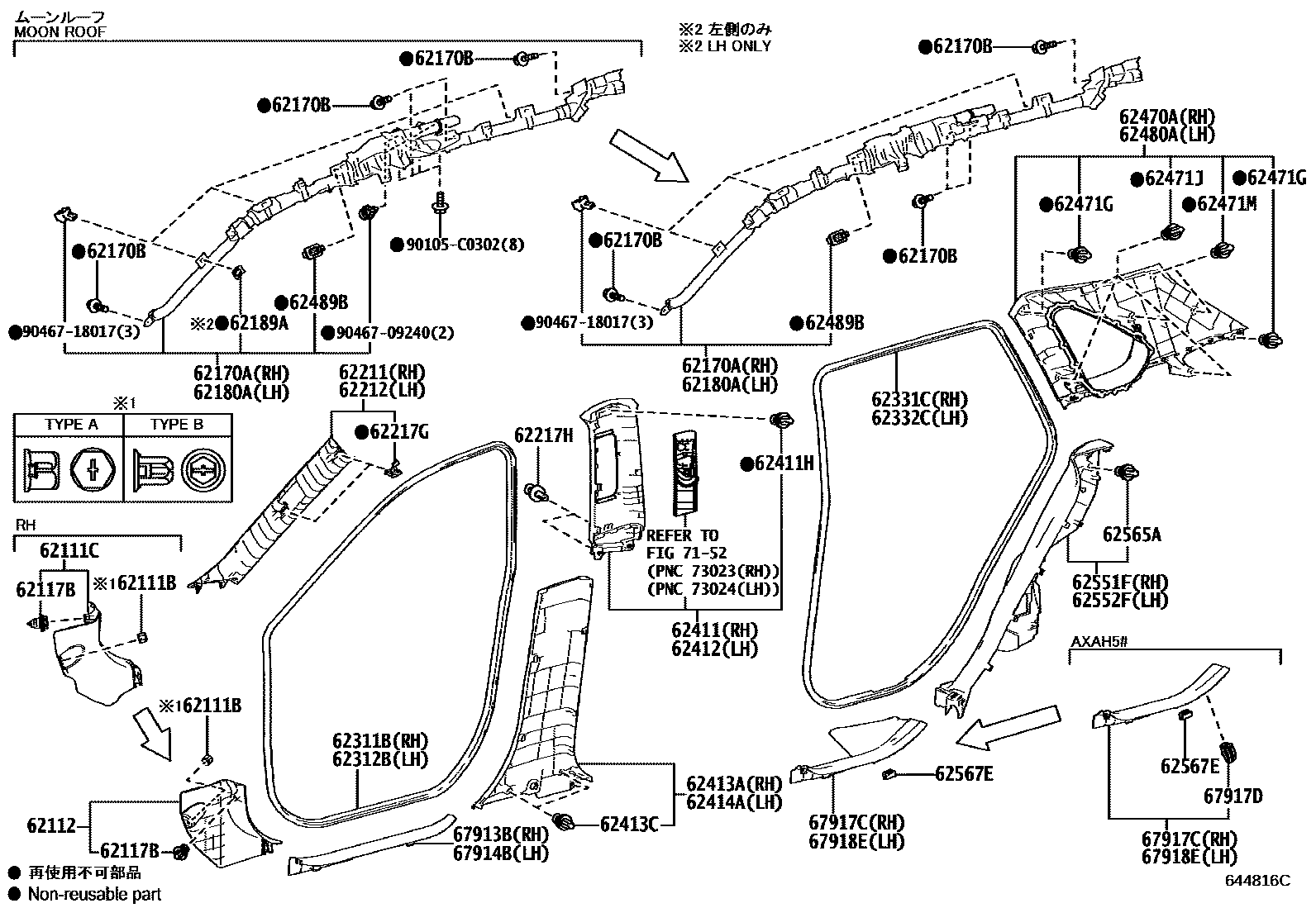

INSIDE TRIM BOARD

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06147×2iAXAL52..X202304

TYPE A

main90467-06155×2iMXAA52;AXAL5#,MXAA54..G,M202304-202405

TYPE B

62111CBOARD, COWL SIDE TRIM, RH

main62111-0R080-C0iAXAH5#,MXAA5#..A,G,M; AXAH52,MXAA52..X202004-202303

BLACK,TRIM1#,2#; BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-0R080-C0iAXAL5#,MXAA5#..G,M; MXAA52..X202405

BLACK,TRIM0#,2#; BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-C0036×2iAXAL52..X202304

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0R090supersedes 62170-0R130iAXAH52,MXAA5#..G202004-202303

main62170-0R130supersedes 62170-0R090iAXAL52,MXAA5#..M; AXAL54;MXAA52..G,X;AXAL52,MXAA54..G202405

MID & PACKAGE

62170BBOLT, W/WASHER

main90119-C0107×8iMXAA52;AXAL5#,MXAA54..G,M202405

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0R090supersedes 62180-0R130iAXAH52,MXAA5#..G202004-202303

main62180-0R130supersedes 62180-0R090iAXAL52,MXAA5#..M; AXAL54;MXAA52..G,X;AXAL52,MXAA54..G202405

MID & PACKAGE

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iAXAH52,MXAA5#..G202004-202303

62211GARNISH, FRONT PILLAR, RH

main62210-0R130-B0iAXAL5#,MXAA5#..G,M; MXAA52..X202304-202405

LT.GRAY,TRIM0#,1#,2#; LT.GRAY,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62220-0R130-B0iAXAL5#,MXAA5#..G,M; MXAA52..X202405

LT.GRAY,TRIM0#,2#; LT.GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-42050×4iMXAA52;AXAL5#,MXAA54..G,M202405

62217HCLIP, CENTER PILLER GARNISH

main90467-C0024×4iMXAA52;AXAL5#,MXAA54..G,M202405

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0R080iMXAA52;AXAL5#,MXAA54..G,M202405

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0R080iMXAA52;AXAL5#,MXAA54..G,M202405

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0R080iMXAA52;AXAL5#,MXAA54..G,M202405

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0R080iMXAA52;AXAL5#,MXAA54..G,M202405

62411GARNISH, CENTER PILLAR, RH

main62410-0R090-B0iAXAL5#,MXAA5#..G,M; MXAA52..X202405

LT.GRAY,TRIM0#,2#; LT.GRAY,TRIM2#

62411HCLIP

main90467-10167×2iMXAA52;AXAL5#,MXAA54..G,M202405

62412GARNISH, CENTER PILLAR, LH

main62420-0R090-B0iAXAL5#,MXAA5#..G,M; MXAA52..X202405

LT.GRAY,TRIM0#,2#; LT.GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0R080-C0iAXAL5#,MXAA5#..G,M; MXAA52..X202405

BLACK,TRIM0#,2#; BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-C0036×4iMXAA52;AXAL5#,MXAA54..G,M202405

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0R080-C0iAXAH5#,MXAA5#..A,G,M; AXAH52,MXAA52..X202004-202303

BLACK,TRIM1#,2#; BLACK,TRIM2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-0R100-B0iAXAL5#,MXAA5#..G,M; MXAA52..X202405

LT.GRAY,TRIM0#,2#; LT.GRAY,TRIM2#

62471GCLIP, ROOF SIDE INNER GARNISH

main90467-C0036×4iMXAA52;AXAL5#,MXAA54..G,M202405

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09240×8iMXAA52;AXAL5#,MXAA54..G,M202405

62471MCLIP

main90467-10167×4iMXAA52;AXAL5#,MXAA54..G,M202405

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-0R120-B0iAXAL5#,MXAA5#..G,M; MXAA52..X202405

LT.GRAY,TRIM0#,2#; LT.GRAY,TRIM2#

62489BCLIP, ROOF SIDE INNER GARNISH

main62489-28010×2iMXAA52;AXAL5#,MXAA54..G,M202405

62551FGARNISH, REAR SEAT SIDE, RH

main62555-0R090-C0iMXAA5#..G,M; MXAA52..X202405

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62555-0R100-C0iAXAH5#..A,G,M; AXAH52..X202004-202303

BLACK,TRIM1#,2#; BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62556-0R080-C0iMXAA5#..G,M; MXAA52..X202405

BLACK,TRIM0#,2#; BLACK,TRIM2#

main62556-0R090-C0iAXAL5#..G,M202405

BLACK,TRIM0#,2#

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main90467-C0036×2iMXAA52;AXAL5#,MXAA54..G,M202405

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040×2iAXAL52..X202304

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0R090-C0iAXAL5#,MXAA5#..G,M; MXAA52..X202405

BLACK,TRIM0#,2#; BLACK,TRIM2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0R090-C0iAXAL5#,MXAA5#..G,M; MXAA52..X202405

BLACK,TRIM0#,2#; BLACK,TRIM2#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0R110-C0iMXAA5#..G,M; MXAA52..X202304-202405

BLACK,TRIM0#,1#,2#; BLACK,TRIM2#

main67917-0R120-C0iAXAH5#..A,G,M; AXAH52..X202004-202303

BLACK,TRIM1#,2#; BLACK,TRIM2#

67917DCLIP, REAR DOOR SCUFF PLATE

main90467-05171iAXAL52..X202304

(J)

main90467-C0087iAXAL5#..G,M202405

(L)

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0R110-C0iMXAA5#..G,M; MXAA52..X202405

BLACK,TRIM0#,2#; BLACK,TRIM2#

main67918-0R120-C0iAXAL5#..G,M202405

BLACK,TRIM0#,2#

7152SEAT BELT

→ Go to FIG 71-52

90105C0302

main90105-C0302

9046709240

main90467-09240

9046718017

main90467-18017

41 parts on this diagram · 1 diagram in section
