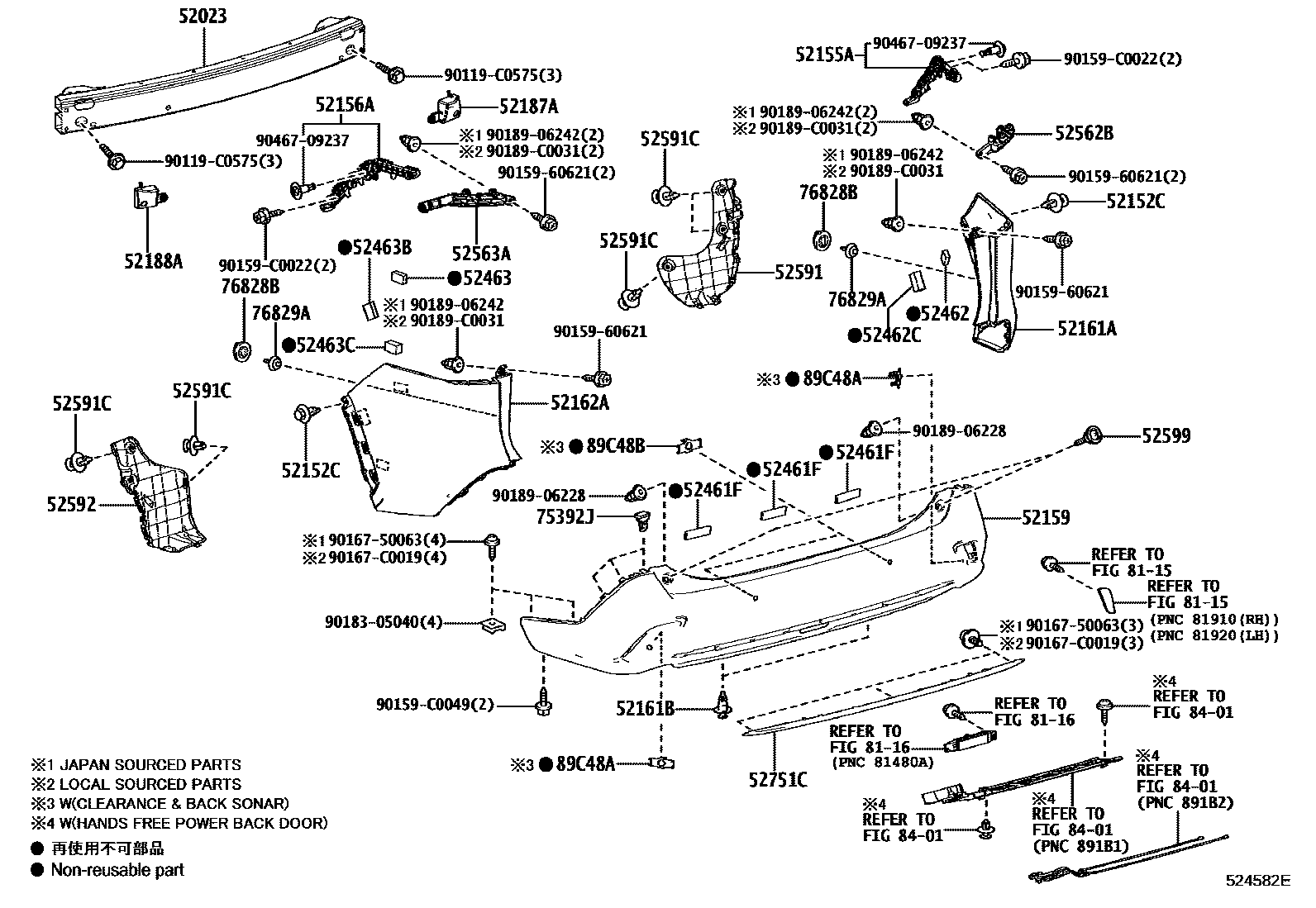

Toyota 664330 — REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52152CCLIP, REAR BUMPER SIDE
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52161APIECE, REAR BUMPER, RH
52161BPIECE, REAR BUMPER
52162APIECE, REAR BUMPER, LH
52187AREINFORCEMENT, REAR BUMPER ARM, RH
52188AREINFORCEMENT, REAR BUMPER ARM, LH
52461FPAD, REAR BUMPER
52462CPAD, REAR BUMPER, RH
52463BPAD, REAR BUMPER, LH
52463CPAD, REAR BUMPER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591CCLIP, REAR BUMPER SIDE SEAL
52592SEAL, REAR BUMPER SIDE, LH
52599STOPPER, REAR BUMPER, UPPER
52751CMOULDING, REAR BUMPER
75392JRETAINER, OUTSIDE MOULDING
76828BRETAINER, BACK DOOR GARNISH
76829ARETAINER, BACK DOOR GARNISH
8115REFLEX REFLECTOR
8116REAR FOG LAMP
8401SWITCH & RELAY & COMPUTER
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
90119C0575
9015960621
90159C0022
90159C0049
9016750063
90167C0019
9018305040
9018906228
9018906242
90189C0031
9046709237
42 parts on this diagram · 1 diagram in section
REAR BUMPER & BUMPER STAY for Toyota 664330
This section contains 42 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota 664330. Key components include: REINFORCEMENT SUB-ASSY, REAR BUMPER, CLIP, REAR BUMPER SIDE, SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, LH, COVER, REAR BUMPER.
